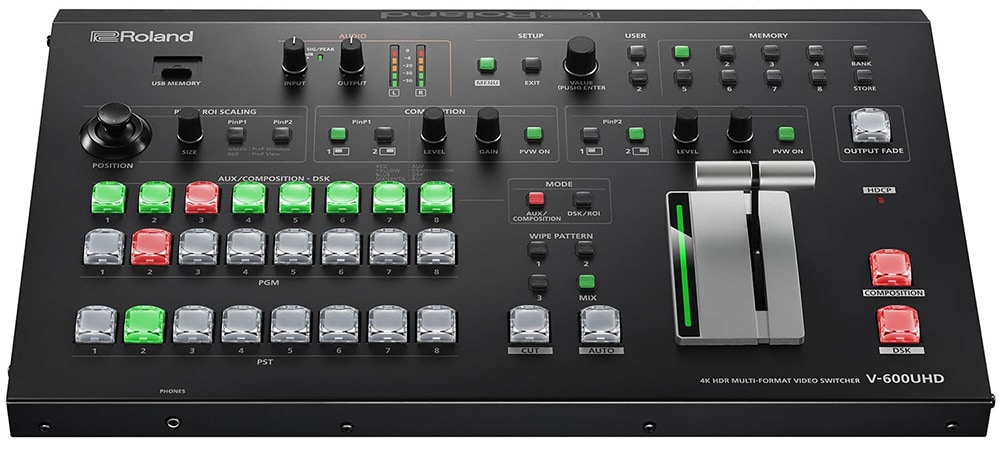

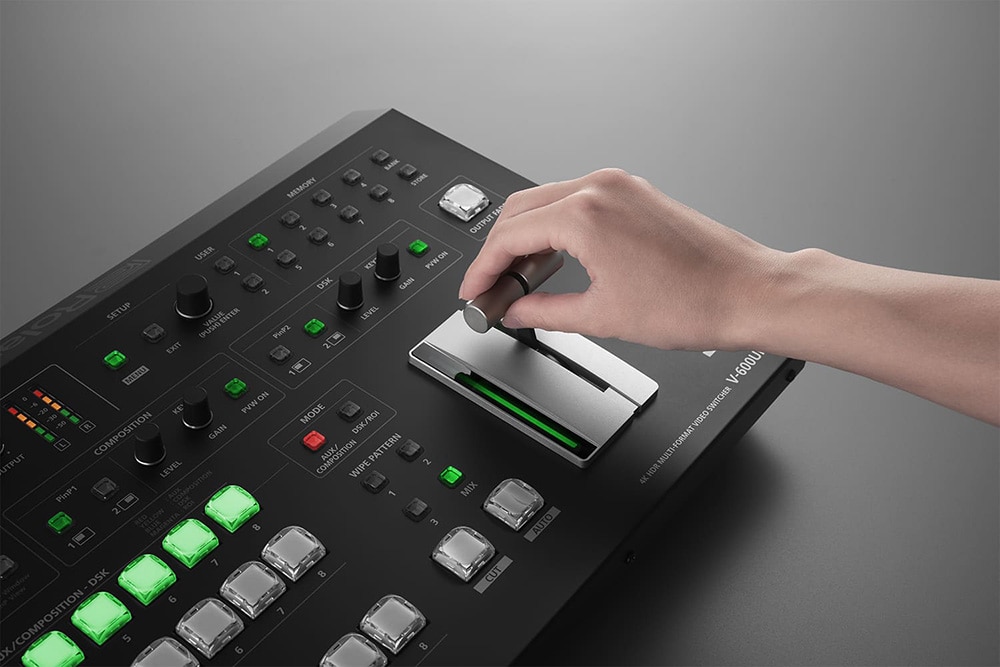

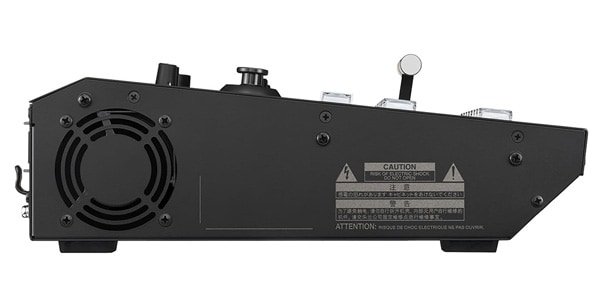

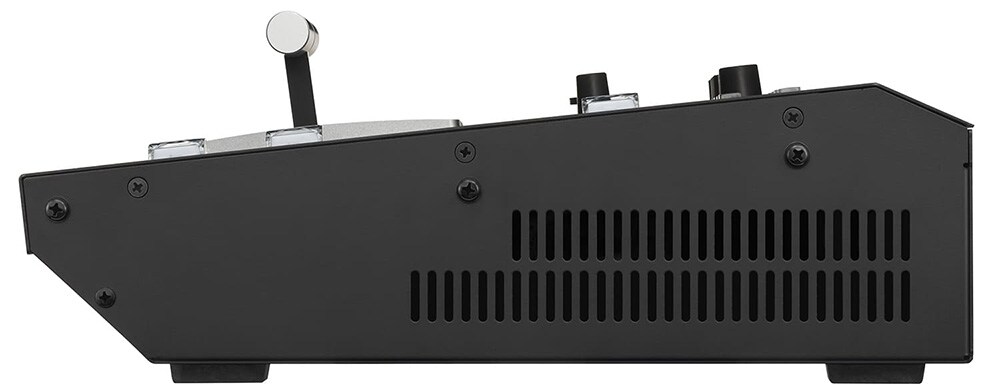

ROLAND / V-600UHD　4K HDR MULTI-FORMAT VIDEO SWITCHER

A long-awaited unit that can gradually support the conventional HD environment to 4K! Supports a wide range of 4K and HDR images, as well as conventional HD images, even in venues with large screens exceeding 100 inches!

■ 4K AV mixer switcher, multi-format 4K/HD/DCI4K
■ Video processing: 4:4:4 (Y/Pb/Pr), 10 bits
■ Input video format
・HDMI (video, CEA-861-F): 1080/59.94i,
・1080/50i, 1080/59.94p, 1080/50p, 2160/59.94p (UHD 4K)
・2160/50p (UHD 4K), 2160/59.94p (DCI 4K), 2160/50p (DCI 4K)
・HDMI (PC, VESA DMT): 1600 x 1200/60Hz (UXGA)
・HDMI (PC, CEA-861-F): 1920 x 1080/60Hz (FHD)
・HDMI (PC, VESA CVT): 1920 x 1200/60Hz (WUXGA, Reduced blanking)
・HDMI (PC, CEA-861-F): 3840 x 2160/30Hz (UHD 4K), 3840 x 2160/60Hz (UHD 4K), 4096 x 2160/30Hz (DCI 4K), 4096 x 2160/60Hz (DCI 4K) )
・RGB (PC, VESA DMT): 1600×1200/60Hz (UXGA)
・RGB (PC, CEA-861-F): 1920 x 1080/60Hz (FHD)
・SDI (video, SMPTE ST274): 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p
・SDI (video, SMPTE ST2036): 2160/59.94p (UHD 4K), 2160/50p (UHD 4K)
・SDI (video, SMPTE ST2048): 2160/59.94p (DCI 4K), 2160/50p (DCI 4K)
・Still image: Windows Bitmap file (.bmp), maximum 4096 x 2160 pixels, 1 pixel 24-bit, uncompressed
■ Output video format
・HDMI (video, CEA-861-F): 1080/59.94p, 1080/50p, 2160/59.94p (UHD 4K), 2160/50p (UHD 4K), 2160/59.94p (DCI 4K), 2160/50p (DCI 4K), HDMI (PC, CEA-861-F): 1920 x 1080/60Hz (FHD), 3840 x 2160/60Hz (UHD 4K), 4096 x 2160/60Hz (DCI 4K)
・HDMI (MULTI-VIEW), video, CEA-861-F: 1080/60p
・SDI (video, SMPTE ST274): 1080/59.94p, 1080/50p
・SDI (video, SMPTE ST2036): 2160/59.94p (UHD 4K), 2160/50p (UHD 4K)
・SDI (video, SMPTE ST2048): 2160/59.94p (DCI 4K), 2160/50p (DCI 4K)
*Compliant with VESA DMT, VESA CVT, CEA-861-F
*Color gamut: Rec.709, Rec.2020
*Brightness: SDR, HDR PQ (HDR10), HDR HLG

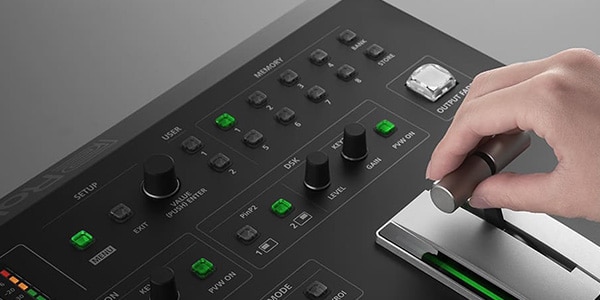

■ Video effects:
・Transition: Mix, Cut, Wipe (9 patterns)
・Composition: PinP, Key (*1), PinP + Key (*1)
・DSK: PinP, Key (*1), PinP + Key (*1)
・Others: Output Fade
(*1) Luminance key, Chroma key
■ Audio processing: 24-bit/48kHz
■ Audio format
・SDI IN/OUT: Linear PCM, 24-bit/48kHz, 16ch (SMPTE 299M compliant)
・HDMI IN/OUT: Linear PCM, 24-bit/48kHz, 2ch
■ Audio effects: Matrix mixer, delay (1ms unit, maximum 500ms), test tone output

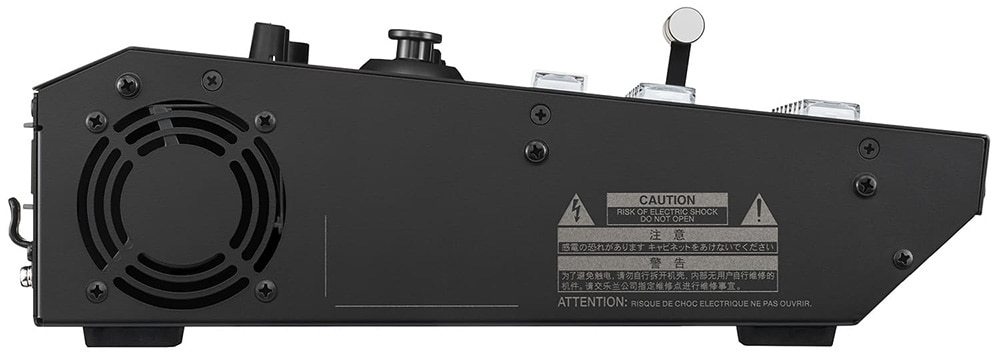

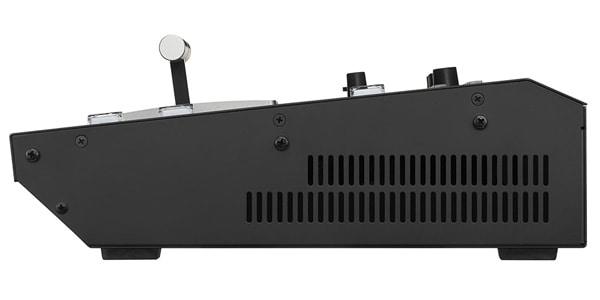

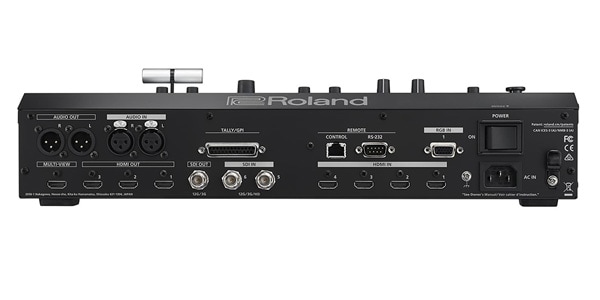

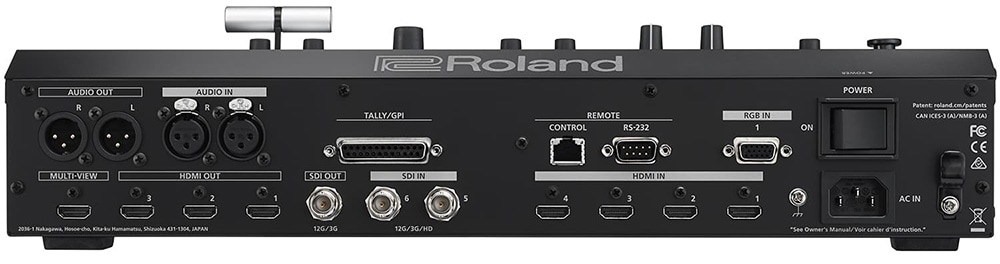

■ Input terminal
・HDMI IN 1 to 4 terminals
・HDMI type A (HDMI 2.0)
・SDI IN 5-6 terminals: BNC type (12G/3G/HD-SDI, SMPTE 2082, 424M (Level-A, Level-B), 292M compliant)
・RGB IN 1 terminal: 15-pin mini D-sub type (analog RGB, HDMI IN 1 or RGB IN 1 can be selected from the menu)
・AUDIO IN L/R terminal: XLR-3-31 type (balanced)
*XLR type: 1 GND, 2 HOT, 3 COLD
■ Output terminal
・SDI OUTPUT terminal: BNC type (12G/3G-SDI, SMPTE 2082, 424M (Level-A) compliant)
・HDMI OUT 1 to 3 terminals: HDMI type A (HDMI 2.0)
・MULTI-VIEW terminal: HDMI type A (HDMI 1.4)
・AUDIO OUT L/R terminal: XLR-3-32 type (balanced)
・PHONES terminal: Stereo mini type
*XLR type: 1 GND, 2 HOT, 3 COLD
■Other terminals
・USB MEMORY terminal: USB A type (for USB memory)
・RS-232 terminal: 9-pin D-sub type (male) (for external control)
・LAN terminal: RJ45 type, 100BASE-TX (for external control)
・TALLY/GPI terminal: 25-pin D-sub type (female) (Tally: 16, GPI: 8)
■ Input level: AUDIO IN L/R: +4dBu (maximum input level: +24dBu)
■ Input impedance: AUDIO IN L/R: 15kΩ
■ Output level: AUDIO OUT L/R: +4dBu (maximum output level: +24dBu), PHONES: 92mW+92mW (32Ω)
■ Output impedance: AUDIO OUT L/R: 600Ω, PHONES: 10Ω
■ SIZE: 482 (width) x 300 (depth) x 109 (height) mm
*With rack mount angle attached
