OYAIDE / SLP-240L

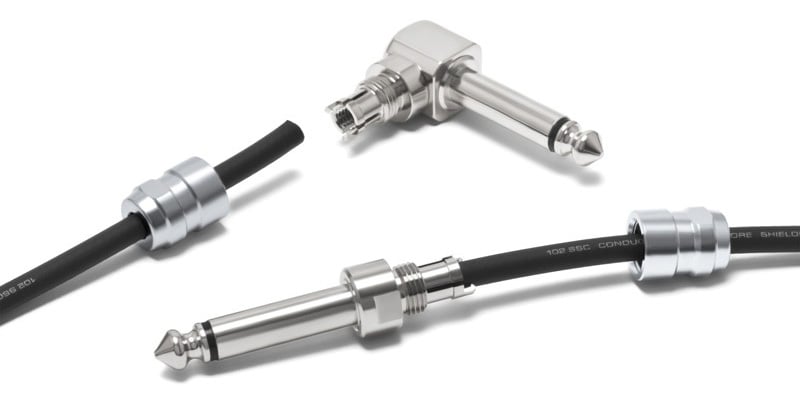

Simply cut the cable, insert it, and secure the cover to create a high-strength, high-durability, high-performance solderless L-shaped plug.

■Plug for Solderless Cable
■L-Shaped Plug
■Plug: SLP-240L
■Body: Diamond-Cut Brass
■Plating: Nickel
■Insulator: POM
■Cover: Machined Brass
■Surface Finish: Matte Chrome Plating

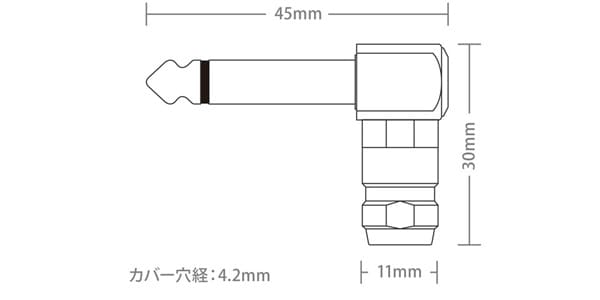

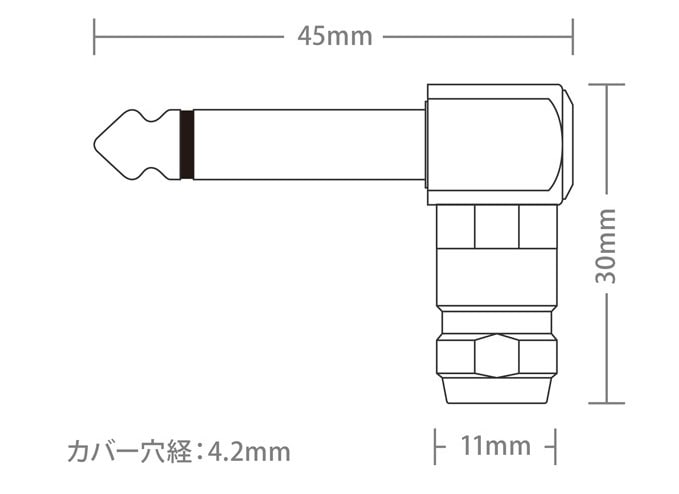

■Cover Hole Diameter: 4.2mm
*Please use the dedicated SLD-ZERO cable.

~Manufacturer's Description~

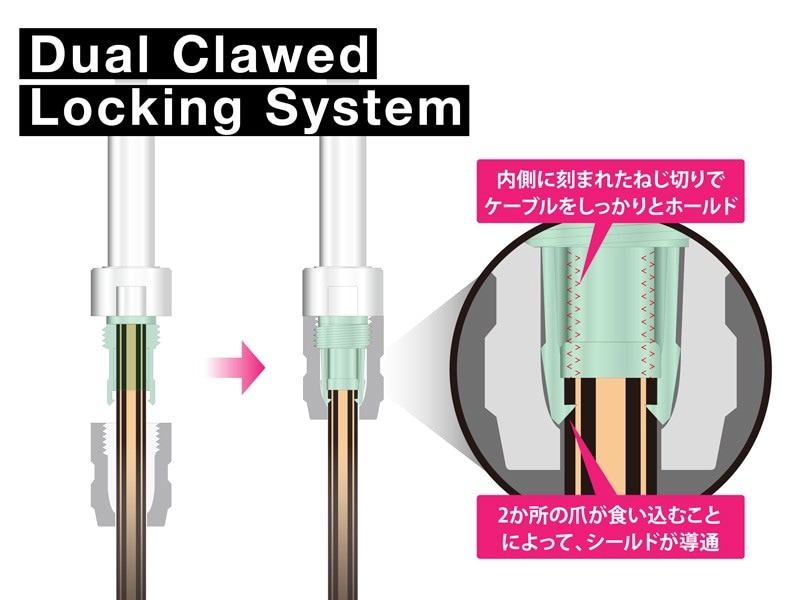

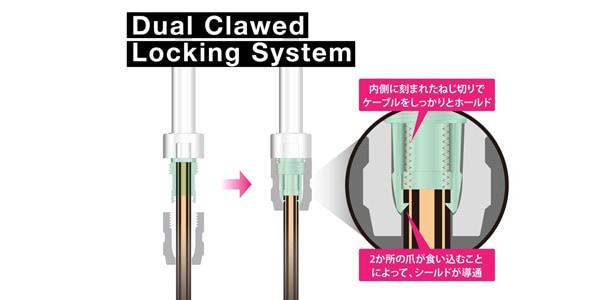

NEO's original solderless plug, the SLP-240S/L, is an unparalleled solderless plug, combining high performance, strength, and durability thanks to NEO's unique Dual Clawed Locking System (patent pending).

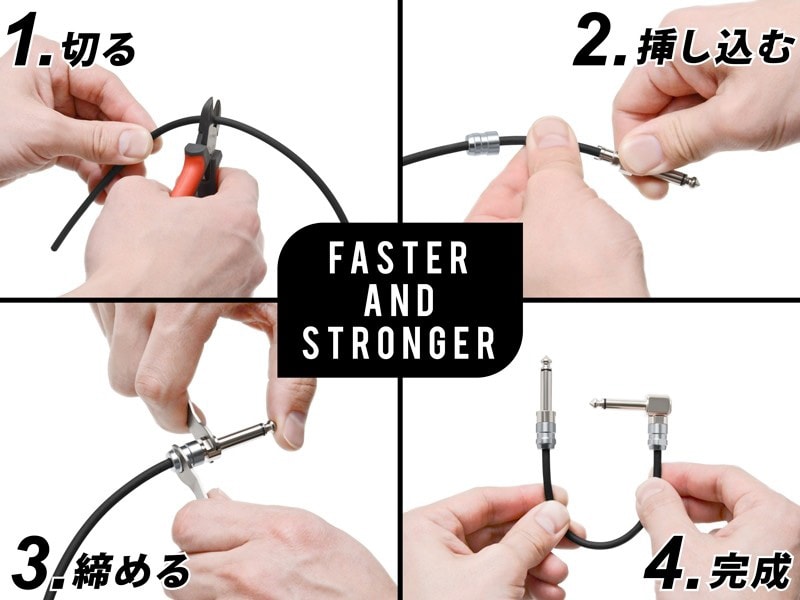

Each part, carefully diamond-cut from a single brass bar, functions perfectly. Simply thread the cover over the cable and insert it into the body to connect with the center pin terminal. Then, tighten the cover and finish by securing it with two wrenches. This tightens the claw-shaped contacts on the body and the flange, and the two claws dig into the cable's outer sheath, ensuring electrical continuity of the shield.

Furthermore, the threads engraved on the inside of the flange firmly hold the cable, ensuring a strong connection.

[Precautions for Use]

- To reuse the plug, place your fingers on the claws on the body and gradually spread the cable apart. Once the cable has been spread apart enough that it can be removed comfortably, pull it out. Because this is a brass part, trying to spread it apart too forcefully may break the flange, making it impossible to reuse.
- Use the dedicated SLD-ZERO cable.
- Always use two wrenches, and be careful not to secure the L-shaped plug by holding the plug itself.
