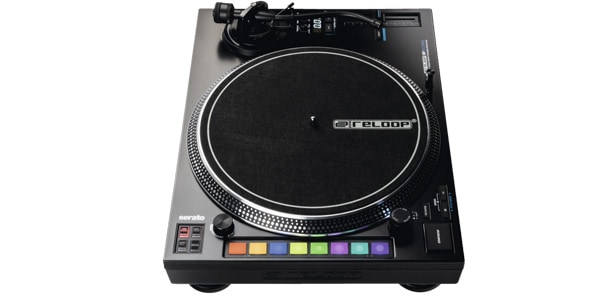

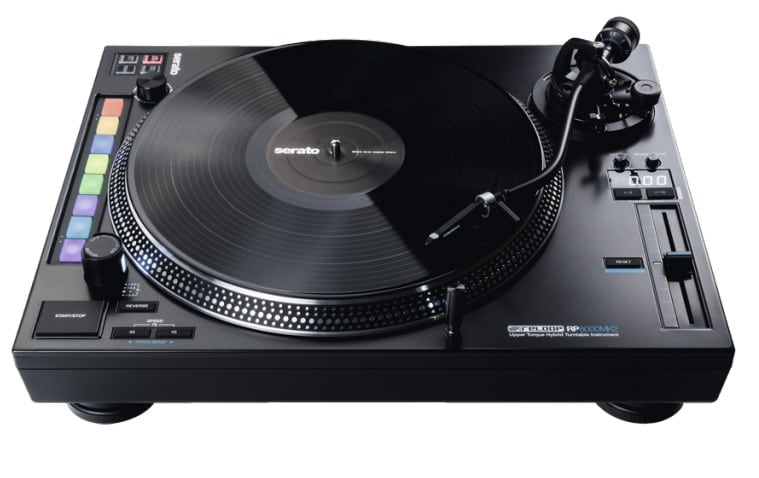

RELOOP / RP-8000 MK2

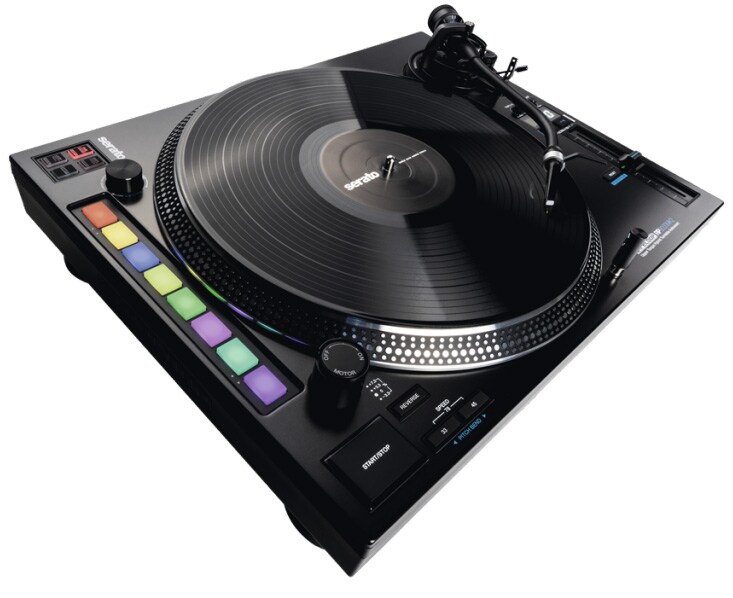

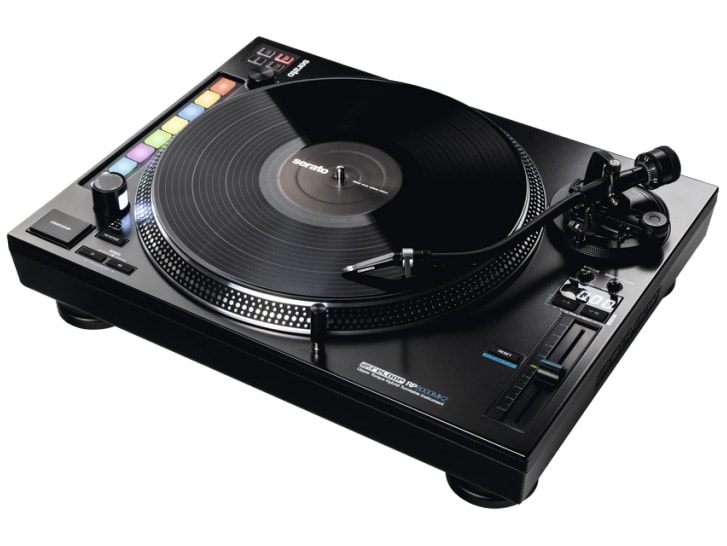

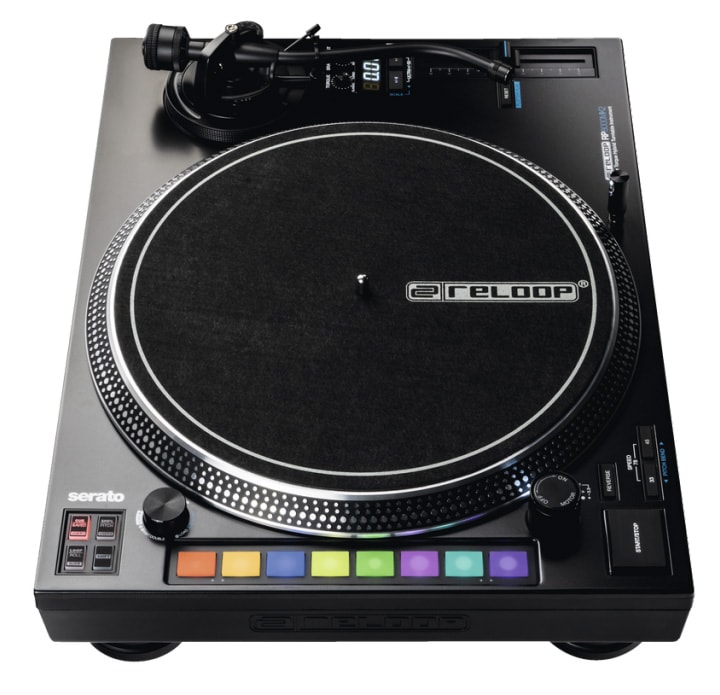

The RP-8000 MK2 is Reloop's most advanced turntable, developed in collaboration with renowned turntablists. Designed for seamless control of Serato DJ Pro, the pad section offers control over up to seven Performance modes, and Platter Play mode lets you control the platter speed for realistic melodic performances.

The RP-8000 MK2, Reloop's most advanced turntable.

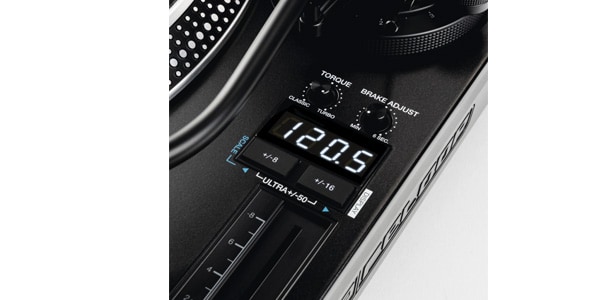

■ Real-time LCD display
Deck information such as pitch, BPM, scale, note, and track elapsed/remaining time, as well as firmware information, can be viewed on the digital LCD display.

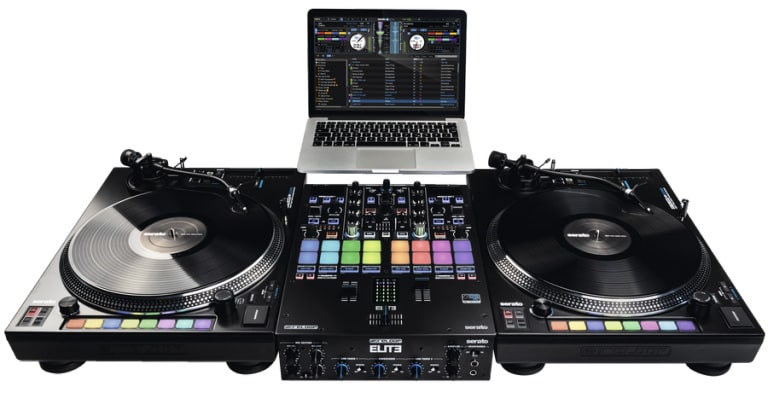

■ USB connection for connecting turntables together
Up to four RP-8000 MK2s can be connected via USB cable.

■ Creative control
Platter rotation speed can be adjusted to three settings (33 1/3, 45, 78 rpm).
Reverse mode is also included.

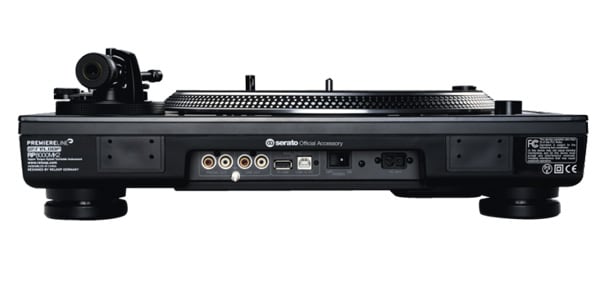

■ Sophisticated terminal layout and built-in phono preamp
Recessed rear panel prevents cables from protruding, allowing for smart installation with equipment such as DJ mixers. Separate LINE and PHONO outputs allow for easy switching between DVS and analog play without worrying about software issues.

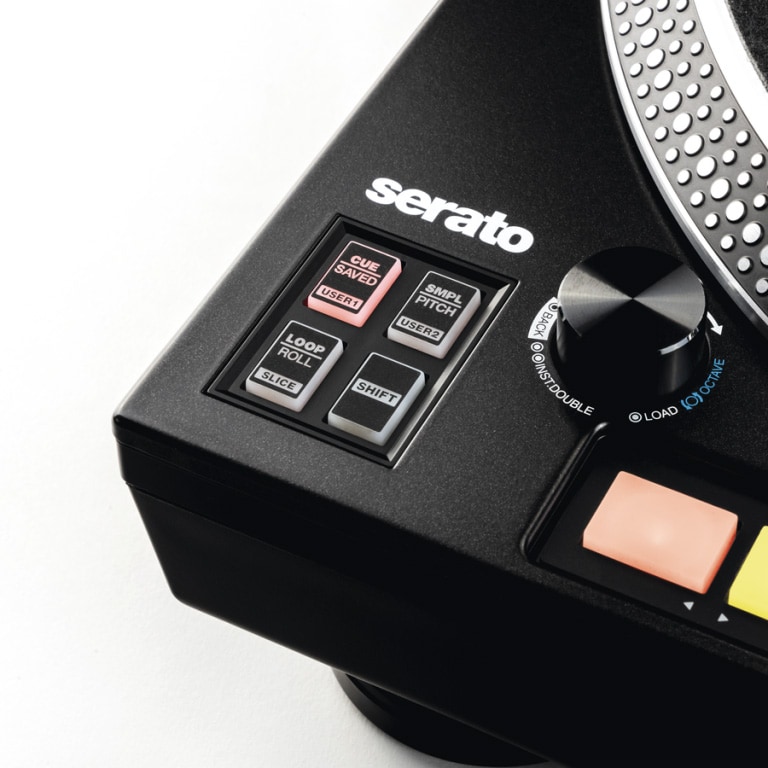

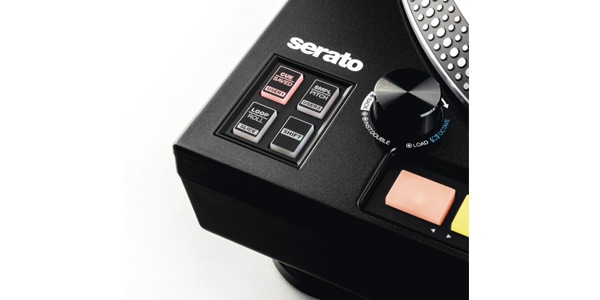

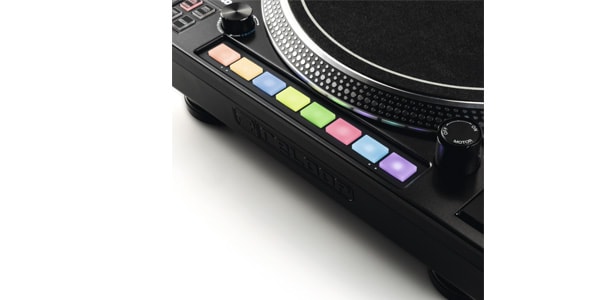

■ Pad Section with Seven New Performance Modes
Designed for Serato DJ Pro, simply connect to your computer with a USB cable to sync with the application.

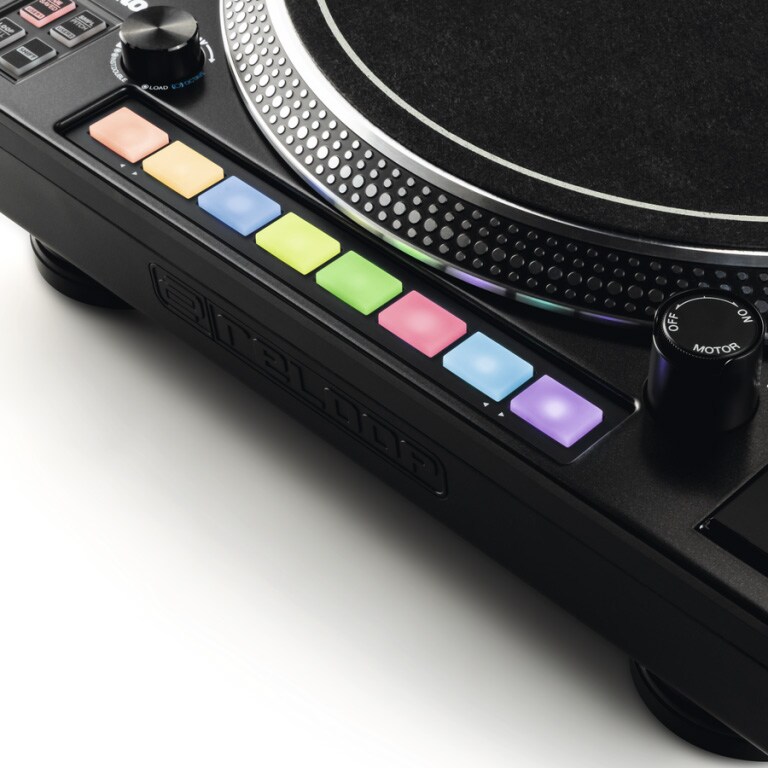

Eight multicolored pads control seven different performance modes (Cue, Sampler, Saved Loops, Pitch Play, Loop, Loop Roll, Slicer) and two user modes. Additionally, the multi-encoder allows you to load music files to the decks without touching your computer.

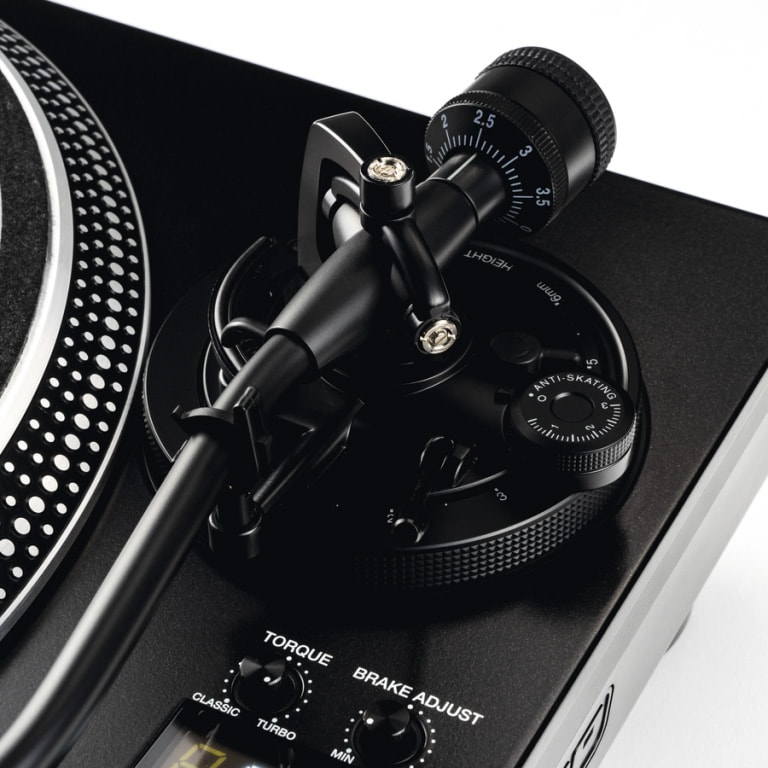

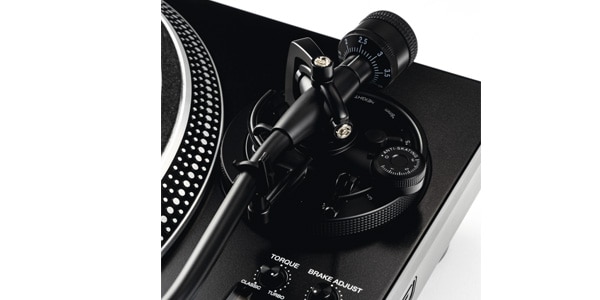

■ Redesigned Tonearm Base and Highly Balanced S-Shaped Tonearm
The statically balanced S-shaped tonearm features a hydraulic lift and anti-skating mechanism.

■ Platter Mode for Instrument-Like Scale Control
In Platter Play mode, you can control the platter's rotation speed to perform realistic melodic performances, providing turntablism like an instrument. 22 scales and 34 notes are available, and up to nine user-defined scales can be created. The speed selection buttons can be used as a ""pitch bend"" in Platter Play mode. They can also be used to increase or decrease the pitch of audio material in half-tone increments. Platter speed can also be controlled with an external MIDI controller.

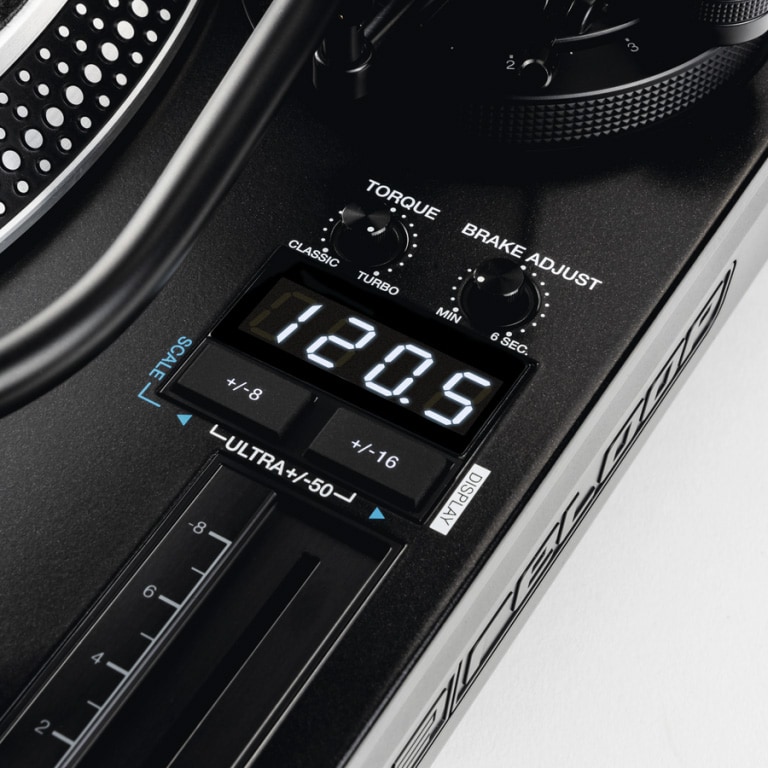

■ Pitch section with high-resolution digital fader
Platter speed adjustment is available at +/-8%, +/-16%, and +/-50%.
When Quartz Lock is enabled, it maintains ±0 regardless of the pitch fader position.

■ Powerful motor with versatile adjustment functions
The quartz-driven motor with digital pitch correction operates with a torque of 2.8 kg/cm, adjustable up to a maximum of 4.5 kg/cm.
The turntable's breaking time is adjustable from 0.2 to 6 seconds.
The heavy die-cast aluminum platter is equipped with vibration-damping rubber to reduce vibration and resonance.

■ Robust casing
The housing is stronger than previous models, thanks to a combination of metal, rubber, and synthetic materials.
Improved insulators make this turntable extremely resistant to vibrations generated by deep bass from speakers.

■ Unleash New Creativity

■ Specifications
Power Supply: AC 100V 50/60 Hz
Power Consumption: 17 W
Dimensions: 458mm W x 354mm D x 144.6mm H
Weight: Approximately 11.8 kg

〈Turntable〉
Type: Direct Drive
Drive (Drive Method): Quartz Control, Upper Torque
Drive Motor: 16-Pole, 3-Phase, Brushless Motor
Rotation Speed: 33 1/3, 45, 78 RPM
Torque: 2.8 - 4.5 kg/cm (Adjustable)
Drop Time: 0.2 - 6 sec (Adjustable)
Start-Up Characteristics: Less than 0.2 sec
Wow and Flutter: 0.01% WRMS
S/N Ratio: > 55 dB (DIN-B)
Brake Mechanism: Electronic Brake

Platter
Material: Aluminum Die-cast
Diameter: 332 mm
Weight: Approx. 1.5 kg

Tonearm
Type: Universal S-shaped tonearm, static balance
Effective arm length: 230 mm
Overhang: 15 mm
Tracking error range: < 3°
Offset angle: 22°
Tracking pressure: 0 to 4 g
Arm height adjustment range: 0 to 6 mm
Appropriate cartridge weight: 3.5 to 8.5 g (13 to 18 g including headshell)
Anti-skating range: 0 to 3 g
Effective tonearm weight: 30 g

Connections
Phono output x 1
Line output x 1
Ground terminal x 1
USB Type-B x 1
USB Type-A x 1 1

■Included Items
- Japanese manual
- Slip mat
- LED stylus light
- Grounded audio cable
- USB cable
- Power cable
