ONKYO PCA1120(B) 送料無料

ONKYO / PCA1120(B)

メーカーサイト商品ページ

Variations

PCA1120B

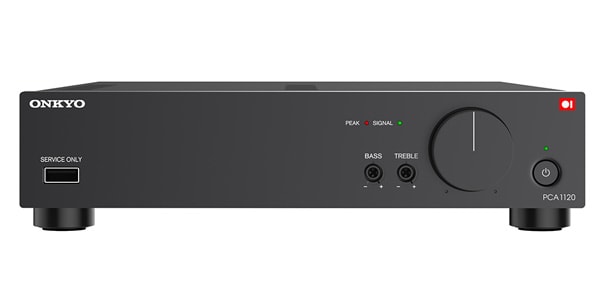

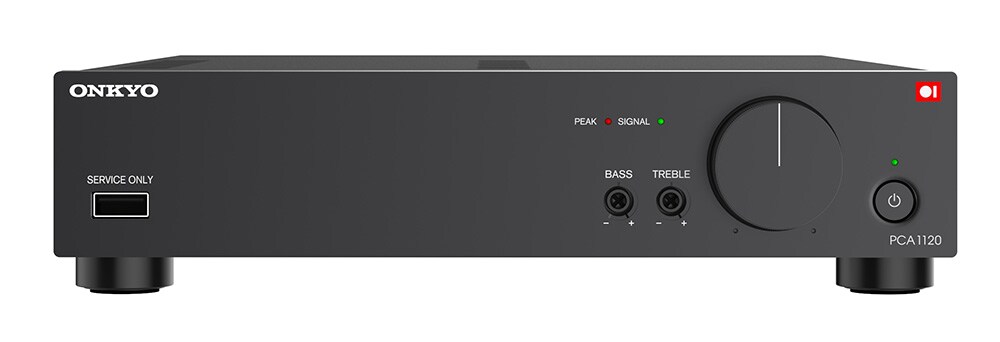

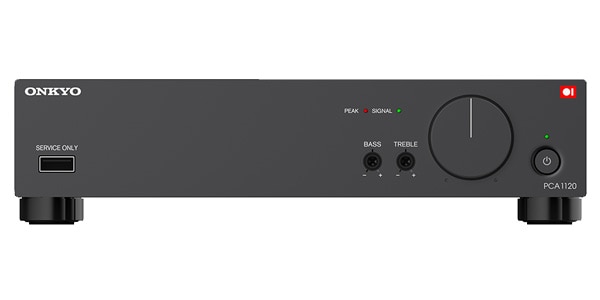

The ONKYO PCA1120 is a compact mono power amplifier that packs all the functionality needed for a small-scale store sound system into a 1U enclosure. It supports both high and low impedance, and can be combined with the MCA1120 for system expansion.

こちらの
商品も
オススメ！

CLASSIC PRO ハイインピーダンスパワーアンプ CMP-120

モノラル、120W、2U、20kg

■Mono Power Amplifier
■120W x 1 (70V/100V), 60W x 1 (8Ω)

Transform your commercial space into a unique venue
This compact mono power amplifier packs all the functionality needed for small stores.

■""BGM Sound Mode"" delivers the optimal sound to match the shop's ambiance.
The ""BGM Sound Mode"" delivers the optimal sound for a variety of commercial spaces and business types. Choose from three modes: ""BGM,"" ""Cafe,"" and ""Apparel,"" to achieve the perfect sound for each shop's ambiance. The bass and treble adjustment functions also allow for precise sound quality adjustments.

""BGM"": Creates a comfortable, relaxing space with a relaxing theme.
""Cafe"": Creates a relaxing, calming space with a relaxing atmosphere.
""Apparel"": Creates a lively space with a feeling of exhilaration.

■A mono power amplifier that pursues high sound quality in addition to high durability and ease of installation.

This 120W mono power amplifier features forced air cooling and a long lifespan. It incorporates the high-quality design philosophy Onkyo has cultivated over 70 years of experience in consumer audio, as well as temperature and overcurrent protection circuits, essential for professional use. The design also incorporates new durability standards, ensuring a long lifespan. The forced air cooling fan is positioned on the side, allowing for stacking when rack-mounted, ensuring ease of installation.

■High/Low Impedance Support Allows for a Variety of Speaker Options

Supports high-impedance connection (100V/70V switchable) and low-impedance connection (2Ω/4Ω/8Ω switchable). Flexible selection of high-impedance or low-impedance speakers and the number of speakers can be tailored to the size, purpose, and type of business.

■Excellent Expandability for Shops of Various Sizes
Commercial spaces vary widely, and it is not uncommon for dead spaces to be created where sound cannot reach, due to walls, pillars, or other obstacles. By combining the separately sold MCA1120 and PCA1120 mixing amplifiers and increasing the number of speakers as needed, you can eliminate these dead spaces and enjoy comfortable background music playback. The PCA1120 can be expanded by two or three units, providing peace of mind when expanding your store.
The PCA1120 also features one analog input (RCA pin terminal), allowing it to be used as a standalone power amplifier.

■Speaker EQ for optimal background music playback tailored to speaker characteristics
To optimize the performance of store speakers from various manufacturers, the unit is equipped with a Speaker EQ function* with presets tailored to the speaker characteristics. DSP functions such as a 12-band parametric EQ, HPF (high-pass filter), and LPF (low-pass filter) allow for optimization of speakers that are not preset.

Other Features
■ RS232 terminal for external control and device configuration via PC
■ Auto power on/off function automatically turns on the unit when playback is initiated from a connected music player and automatically turns off the power after two hours of inactivity
■ Front panel material is compatible with commercially available label writers

■ Rated Output: 120W x 1 (4Ω load, 2Ω load, 70/100V), 60W x 1 (8Ω load)
■ Total Harmonic Distortion: Less than 0.5% (Lo-Z), Less than 1.0% (Hi-Z)
■ Frequency Response: 20Hz - 20kHz (+0dB, -6dB)

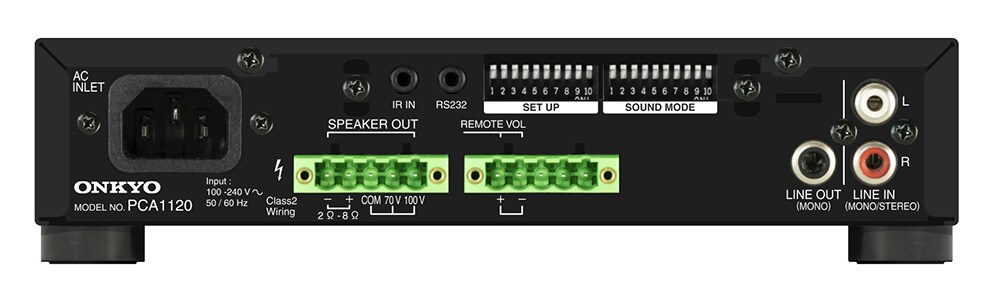

■ Input Terminal: LINE IN: RCA pin (stereo, rear)
■ Output Terminal: LINE OUT: RCA pin (mono, rear)
■ Input Impedance: LINE IN: 14kΩ
■ Input Sensitivity: LINE IN: -10dBV
■USB port: For service (front)
■Operating temperature range: 0°C to +40°C
■Power supply: AC 100V (50Hz/60Hz)
■Power consumption: 215W (rated output), 10W (idling), 0.4W (standby)
■Dimensions and weight: 215 (W) x 319 (D) x 55 (H) mm (including feet), 3.6 kg
■Accessories: Two 5-pin Euroblock terminals, power cord
