IMAGENICS / US-42

A 4x2 matrix selector for HDMI signals that complies with HDMI 2.0/1.4 and HDCP 2.2/1.4 standards.

■HDMI signal 4x2 matrix selector
■4K signal format: MDS clock: 25 MHz to 340 MHz
Pixel clock: 25 MHz to 600 MHz
Data rate: 0.75 to 18 Gbps
HDCP: 1.4/2.2
Supported resolutions: 4K60p 4:4:4 24-bit, 4K60p 4:2:2 36-bit, 4K30p 4:4:4 36-bit, etc.
■Video signal format: TMDS signal (digital RGB/YPbPr) pixel clock 25 MHz to 600 MHz (TMDS clock 25 MHz to 340 MHz), 4K, D1 to D5 equivalent HDMI signals, and 640 x 480 to 4,096 x Automatically supports PC signals up to 2,160, and supports standards-compliant HDMI signals up to 36-bit deep color or 24-bit full color.

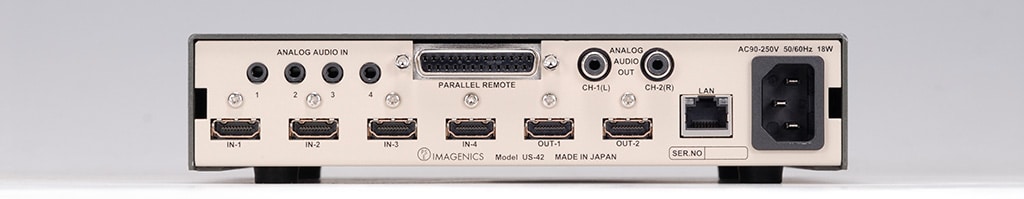

■HDMI Input: Four 19-pin HDMI-A connectors (HDCP 1.4, 2.2 compatible, DVI signal input possible). Input cable coverage (from IMAGENICS-specified product output signals): PC (VESA), D5, etc. up to 6 Gbps video up to 30 m with IMAGENICS long-length HDMI cable; 4K30, 60 (420), etc. up to 10.2 Gbps video up to 20 m with IMAGENICS long-length HDMI cable; 4K60 (422,444), etc. up to 18 Gbps video up to 10 m with IMAGENICS long-length HDMI cable.
■EDID Emulation: Select from the menu to use major CEA and VESA resolutions (default is real-time repeat from OUT-1 connector), OUT-1, EDID data from the OUT-2 connector can be copied and backed up for use.
■Analog Audio Functions:
Audio Input Terminal: -10 dBu, approximately 50 kΩ, unbalanced, 2 channels, 4 inputs (4 x φ3.5 stereo jacks)
Audio Output Terminal: -10 dBu (10 kΩ or greater load), low impedance, unbalanced, 2 channels, 1 input (2 x RCA pin jacks)
Audio Frequency Response: -1 dB to +1 dB at 20 Hz to 20 kHz
Audio S/N Ratio: 80 dB or greater (A-weighted at 1 kHz, reference -10 dBu output)
Audio Crosstalk: 80 dB or greater
Audio Distortion: 0.03% or less (10 kΩ or greater load)
Maximum Audio Input Level: +10 dBu (HDMI embedded audio at 0 dBFS)
Maximum Audio Output Level: +10 dBu (HDMI embedded audio at 0 dBFS) (at dBFS)
■External Control Function: LAN RJ45 x 1 (100BASE-TX, 10BASE-T automatic detection, TCP/IP, UDP/IP switching)
Parallel Remote x 1 D-SUB25 (female, inch screws)
■Size: 210 (W) x 44 (H) x 230 (D) mm (excluding protrusions)
