SUPRO / 1313

SUPRO/Delay is an analog delay that produces a rich vintage delay sound from 20ms slapback to up to 600ms. It uses a high-voltage MN3005 IC chip with superior fidelity compared to the low-voltage MN32XX series chips often used in modern pedal delays. The internally boosted 15V drive significantly improves headroom and dynamic range, allowing the player's nuances to be expressed without any loss.

■Guitar Effects
■Analog Delay
■Features
-Analog delay inspired by the golden age of analog pedals and tape echo
-Achieve a dense vintage delay sound from 20ms slapback to up to 600ms
-Uses high-voltage MN3005 IC chips with excellent fidelity.
-Powered by 9VDC power supply, boosted internally to 15V to provide world-class headroom in a compact analog delay pedal.
-Equipped with a newly designed FILTER control that provides both low-pass and band-pass functions with a single knob
-Provides both the warm dark echo sound associated with BBD analog delays and a bright tape echo sound that evolves over time with even longer tape repeats
-Designed by Howard Davis, master engineer of the legendary late 1970s EHX DX MemoryMan and Pigtronix Echolution

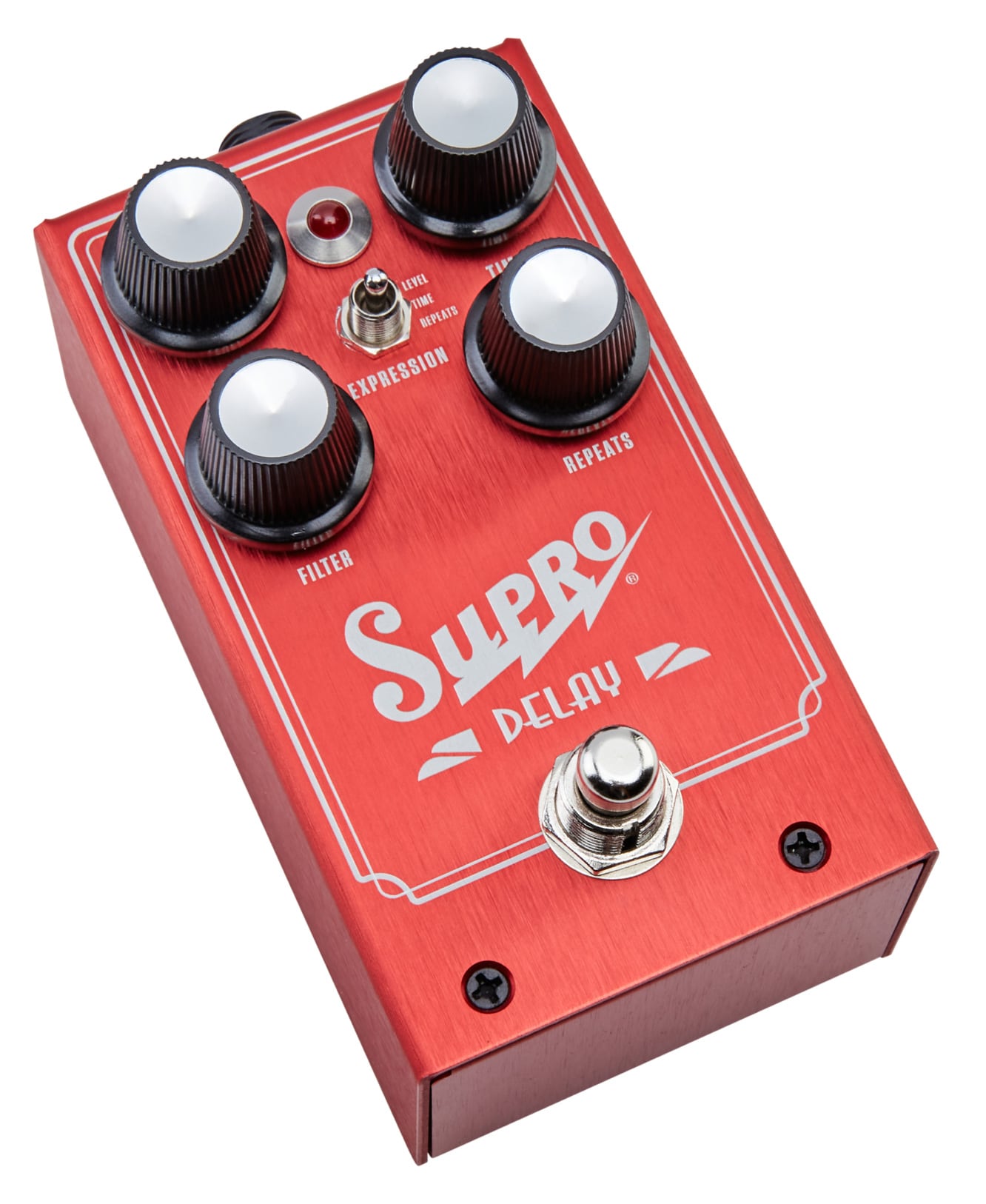

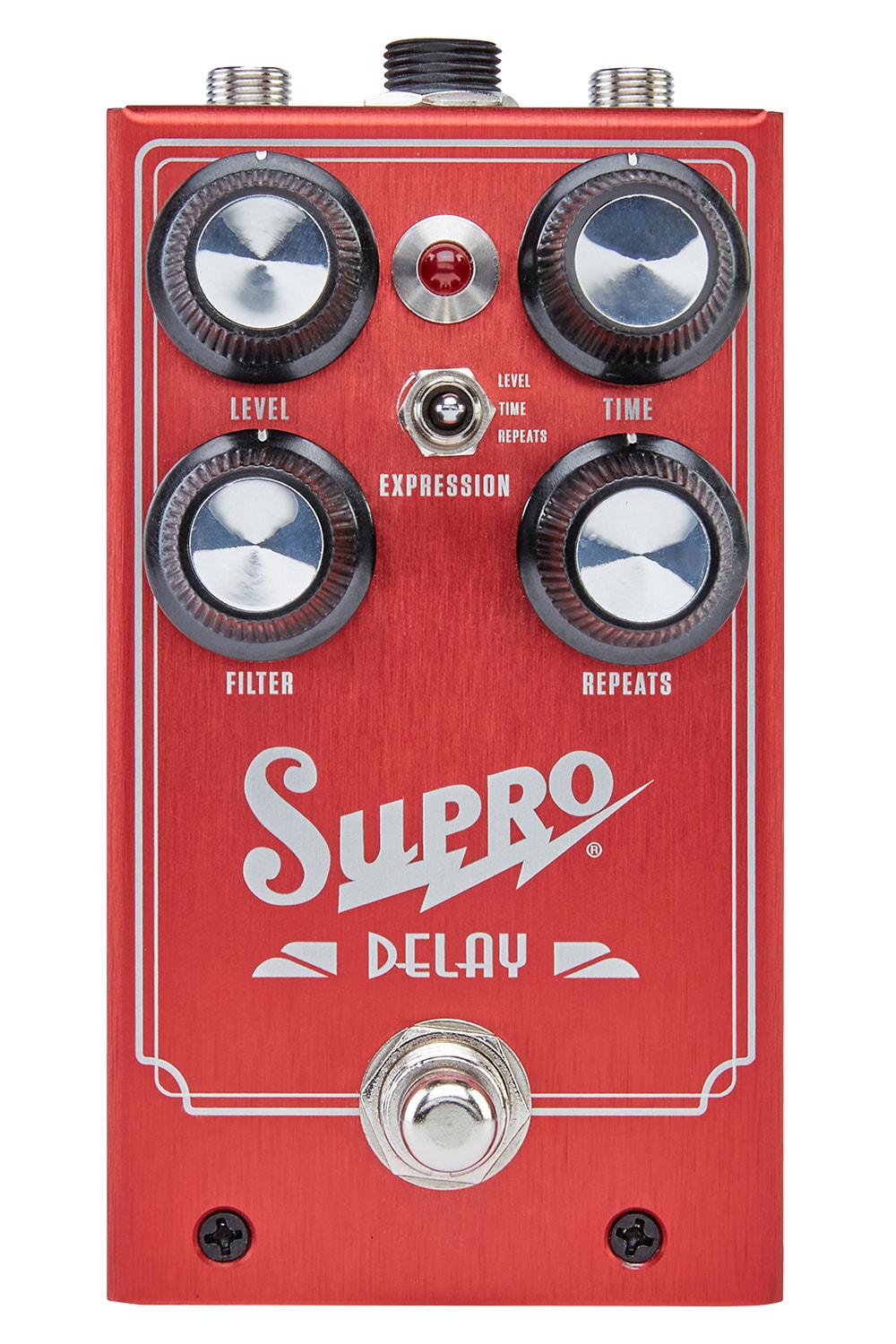

■Controls
-TIME: Sets the delay time from 20 to 600ms
-REPEATS: Sets the number of echoes of the delay sound. It oscillates when set to maximum.

・LEVEL: Sets the volume of the delay sound.

・FILTER: Has both low-pass and band-pass functions, and when set to minimum, it produces a low-pass dark tone. When set to maximum, the band-pass filter is activated and provides a bright tone.

・EXPRESSION switch: Selects the LEVEL/TIME/REPEATS to be controlled by the expression pedal.

■Input/Output

・IN: Inputs the signal from a guitar or effect.

・OUT: Outputs the signal to an effect or amplifier.

・EXPRESSION: Connects a TRS expression pedal to control either LEVEL/TIME/REPEATS.

■Power supply: DC9V center negative adapter (sold separately)

■Current consumption: <200mA

■Size: 8 x 8 x 12.5cm

■Weight: Approx. 0.5kg

*Images are for illustrative purposes only.
