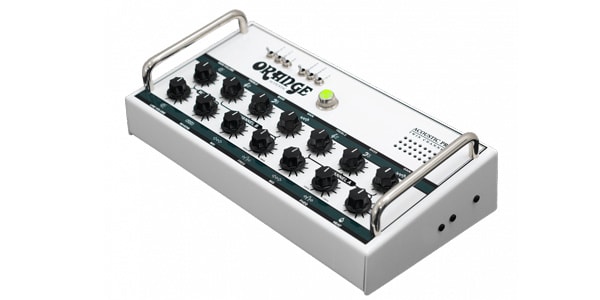

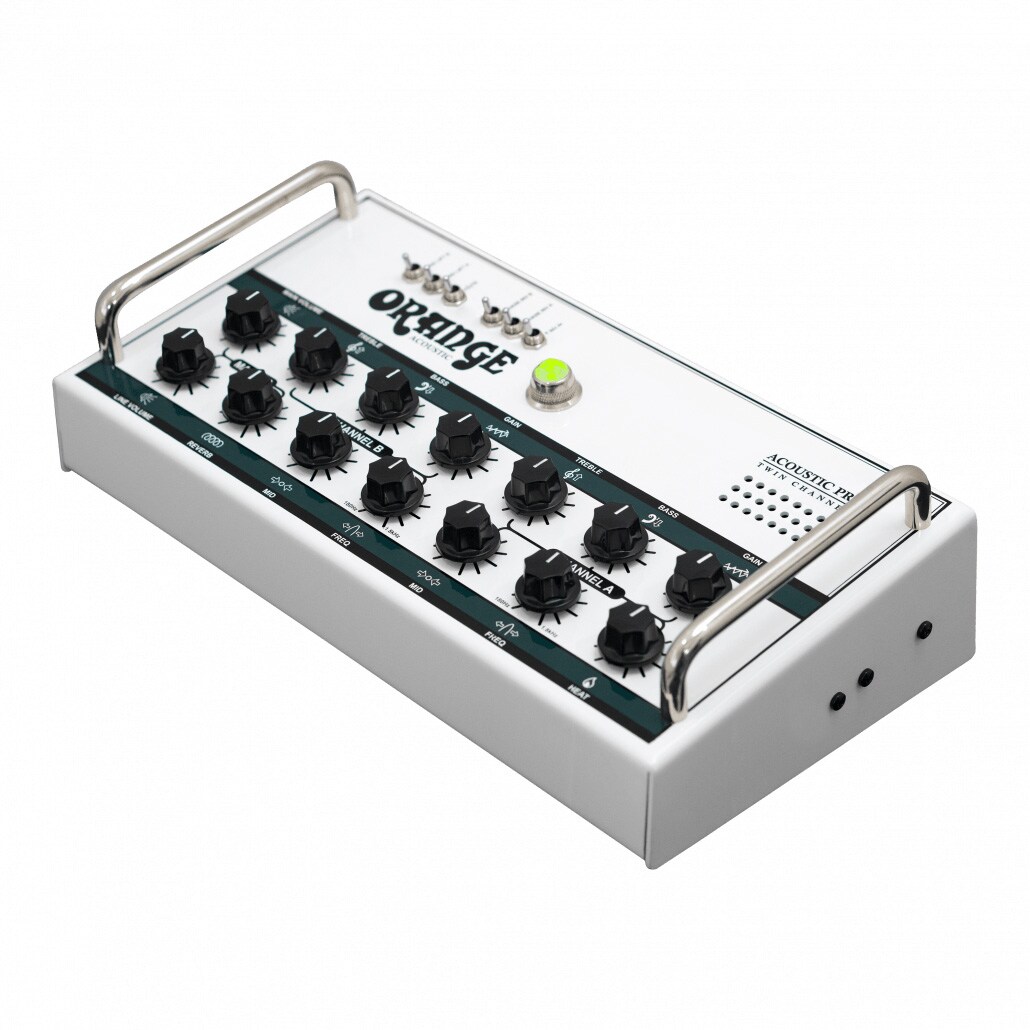

ORANGE / VALVE-PRE-TC

The world's first stereo valve acoustic preamplifier/active DI

Providing uncompromising performers with the ultimate in clarity and unparalleled performance. Designed for both stage and studio use, this model offers acoustic players the same warmth, natural compression, and rich overtones that were previously only available to electric guitarists and hi-fi audiophiles. CHANNEL A INPUT IMPEDANCE: 2.2 MOHMS
CHANNEL B XLR INPUT IMPEDANCE: MINIMUM 6 KOHMS
CHANNEL B JACK INPUT IMPEDANCE: 2.2 MOHMS
FX SEND LEVEL: -10DBU
FX SEND IMPEDANCE: SUB 150 OHMS
FX RETURN LEVEL: -10DBU
FX RETURN IMPEDANCE: 10 KOHMS
LINE OUTPUT LEVEL: -10DBU
LINE OUTPUT IMPEDANCE: SUB 150 OHMS
MAIN OUTPUT LEVEL: +4DBU
MAIN OUTPUT IMPEDANCE: SUB 60 OHMS
DIMENSIONS: 29X15X9CM (11.41X5.90X 3.54″)
WEIGHT: 2.5KG (5.51LBS)
