MOOER / Micro Preamp 019

The Mooer Micro Preamp 019 is a preamp pedal modeled after a 50W Plexi amp made in 1967. It reproduces a well-balanced sound overall while retaining the thick low end. You can switch between the detailed blue channel and the thick mid-gain distortion red sound.

■Guitar effects
■Preamp
■50W Plexiamp type made in 1967

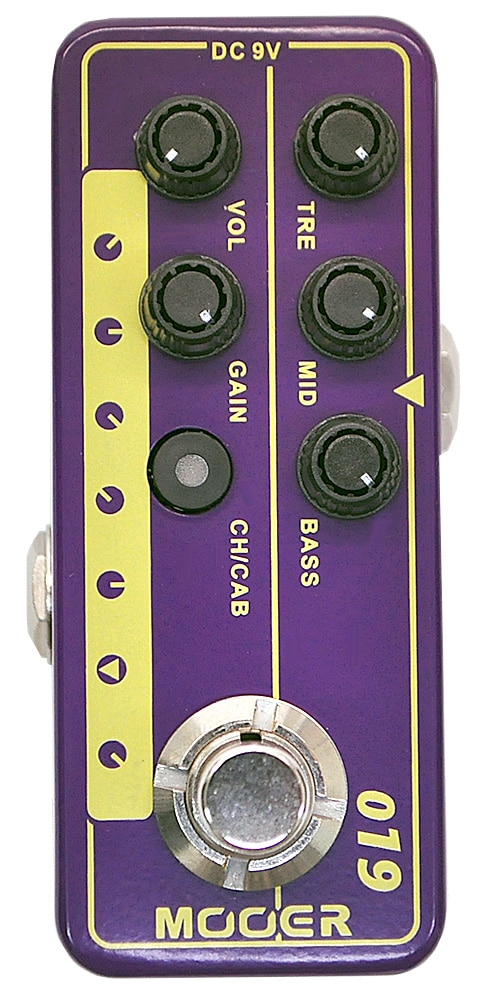

■Controls
・VOL: Adjusts the volume.
・GAIN: Adjusts the strength of distortion.
・TRE: Adjusts the high frequency output.
・MID: Adjusts the mid frequency output.
・BASS: Adjusts the low frequency output.
・CH/CAB: Push to switch channels. Also, hold down for 2 seconds to switch the cabinet simulator ON/OFF.
・Footswitch: Has two operating modes. Hold down the footswitch for 2 seconds to switch operating modes.
Active/Bypass: Press the footswitch to switch between active and bypass of the preamp. Can be used like a normal effects.
Channel switching: Press the footswitch to switch between two channels. Useful when using as a preamp that is always ON.
■Connection

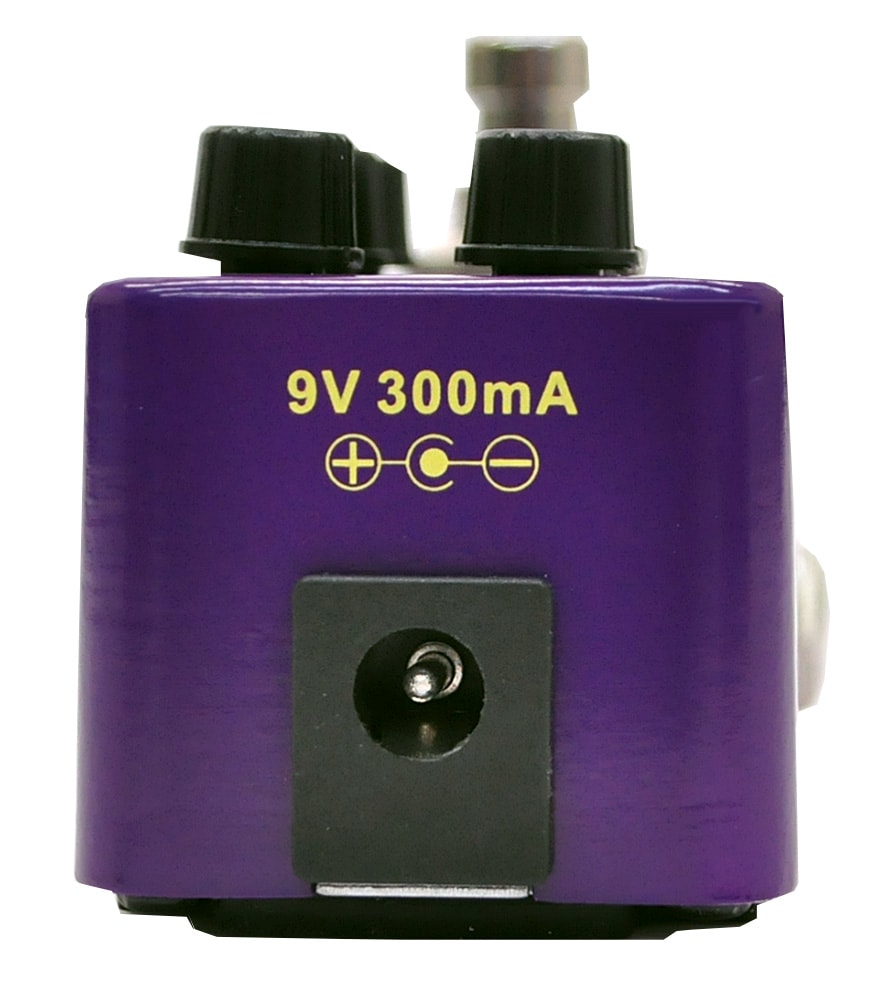

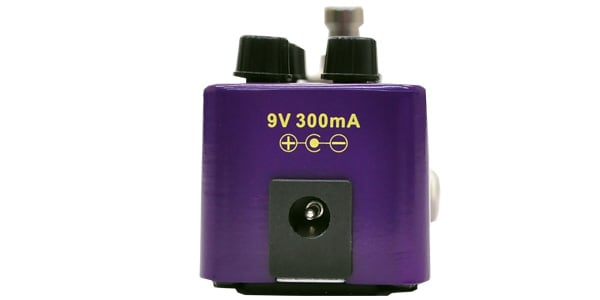

・DCIN: Connect a center negative DC9V adapter. Current consumption is 300mA.

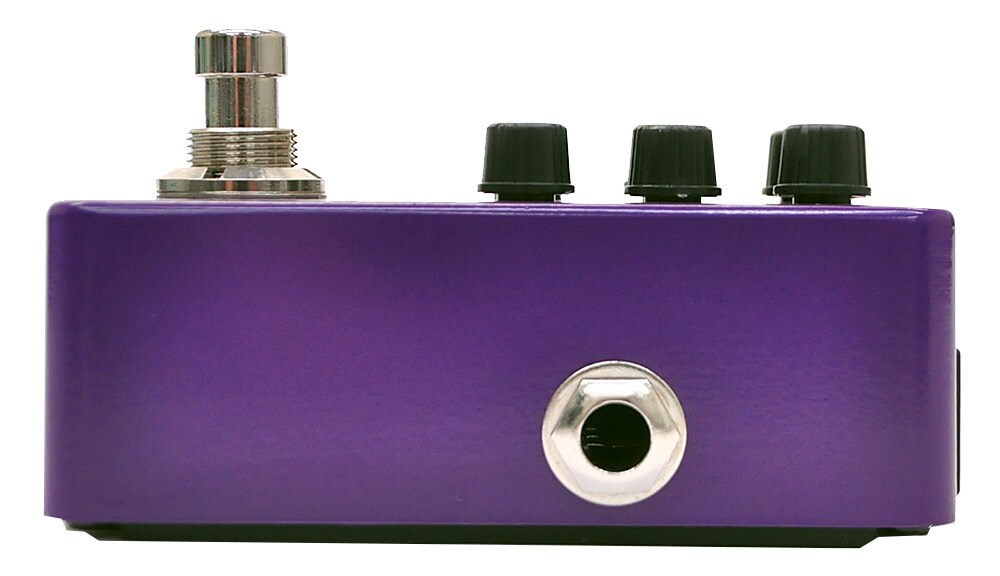

・INPUT: Connect the cable from the instrument. When using as a preamp, it is also effective to connect a distortion effector in the front stage.
・OUTPUT: Connect the cable from the amplifier or PA. Connect to the amplifier input, effect return, PA, etc. It is effective to connect spatial effects in the rear stage.
■Specifications
Input: 1/4 inch mono audio jack (impedance: 1MΩ)
Output: 1/4 inch mono audio jack (impedance: 100Ω)
Power supply: Regulated center negative DC9V adapter (batteries cannot be used)
Current consumption: 300mA
Size: 93.5mm (D) x 42mm (W) x 52mm (H)
Weight: 160g

~From the manufacturer's website~
■What is the Micro Preamp series?
The Mooer Micro Preamp series is a digital preamp pedal that contains the sounds of various vacuum tube amplifiers in a mini-sized housing. ""Intelligent Amplifier Modeling"" technology captures the sound, dynamics, and response of a real tube amplifier.

The small housing is packed with features. It is equipped with a 3-band EQ, has two selectable channels, and also has a built-in cabinet simulator. The foot switch can be used not only as an active/bypass but also as a channel switching switch.

The Micro Preamp series pedals can be used as effects pedals, of course, but can also be connected to the effect return or power amp input to directly drive the amplifier's power amp. You can also use the speaker simulator for line recording. You can also output directly to a PA or monitor.

■Equipped with fully independent dual channels
The Micro Preamp series allows you to select two independent channels. Although the control knobs used for operation are common, knob operation does not affect the two channels. When you switch channels with the CH/CAB button or foot switch, the previous settings are loaded as is, regardless of the current knob position.
In other words, sounds you have created once will not be affected even if you switch channels and move the knobs.
When you switch channels, the LED color changes, so you can see the current channel at a glance.

■Equipped with cabinet simulator
The Micro Preamp series has a built-in speaker simulator that simulates the sound coming from a speaker, and can also be connected directly to a PA, monitor, audio interface, etc. Press and hold the CH/CAB button to switch the speaker simulator ON/OFF. While the cabinet simulator is ON, the LED flashes slowly.

*Image is for illustrative purposes only.
