Soundcraft / Mini Stagebox 32i US Stagebox

Soundcraft / Mini Stagebox 32i US Stagebox

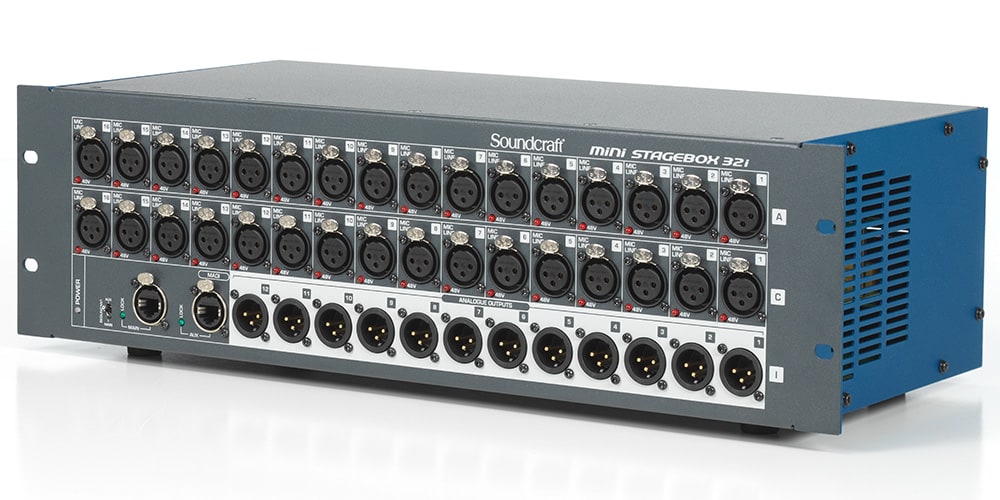

  • Soundcraft / Mini Stagebox 32i US Stagebox画像1
  • Soundcraft / Mini Stagebox 32i US Stagebox画像2
10
  • メーカーサイトManufacturer Site
  • 製品マニュアルProduct Manual
The Soundcraft Mini Stagebox 32i is a stagebox compatible with Si Series mixing consoles that combines high-quality components with a streamlined design to easily add 32 channels of remotely controllable I/O.
■Studer-designed mic preamps deliver exceptional sound quality. The compact enclosure offers excellent portability and quick setup. Replaces heavy, expensive analog snake cables with a single RJ45 Cat5 Ethernet cable.


- Legendary Studer-designed preamps for professional performance
- Dedicated remote-controlled XLR mic input
- 32 mic preamps, 12 analog outputs, and dual MADI connections

■ High-quality components
Soundcraft's mini stage box delivers the industry-leading performance Soundcraft's live solutions are known for, at an excellent value. Legendary Studer-designed mic preamps deliver warm, rich sound for recording live performances and events.

■ Comprehensive I/O
Providing multi-channel MADI I/O via standard Cat5 cable, eliminating the need for expensive, heavy analog snakes from stage to front of house. Dedicated XLR mic preamp inputs allow for 32 or 16 external analog inputs. The Mini Stagebox 32i provides 12 analog outputs for live performance, stage monitoring, broadcast, and more.

■Stream Design
An RJ45 connector for MADI connection is standard. No hardware or option card installation is required. Connect to a Soundcraft Si console for input selection and remote control.

■Full Integration with Si Series Mixers
The Mini Stagebox pairs with a Soundcraft Si Series mixer to provide intuitive operation as remotely controlled expansion I/O. With Si Impact, you can use the stagebox as an additional input while using the mixer's console inputs. Add a second MADI option card to the console and connect a second stagebox for 80 mixing channels.

Technical Specifications
RJ45/Cat5 connectivity: 100m from the mixing console to the stage box
32 remotely controllable mic preamps and AD converters
12 XLR analog line outputs
3U rackmount design

Legendary Studer-designed preamps for professional performance
Dedicated remote-controlled XLR mic inputs
32 mic preamps, 12 analog outputs, and dual MADI connections

Comparison Chart

MINI STAGEBOX 16R MINI STAGEBOX 16i MINI STAGEBOX 32R MINI STAGEBOX 32i
Analog Inputs 16 16 32 32
Analog Outputs 8 8 8 12
AES Output (Pair) - - 4 -
Support Redundancy / Two Consoles No No Yes Yes
Pre-amp Soundcraft Studer Soundcraft Studer
Come with MADI USB Combo Card Yes No Yes No
