UNI-PEX / NDS104A

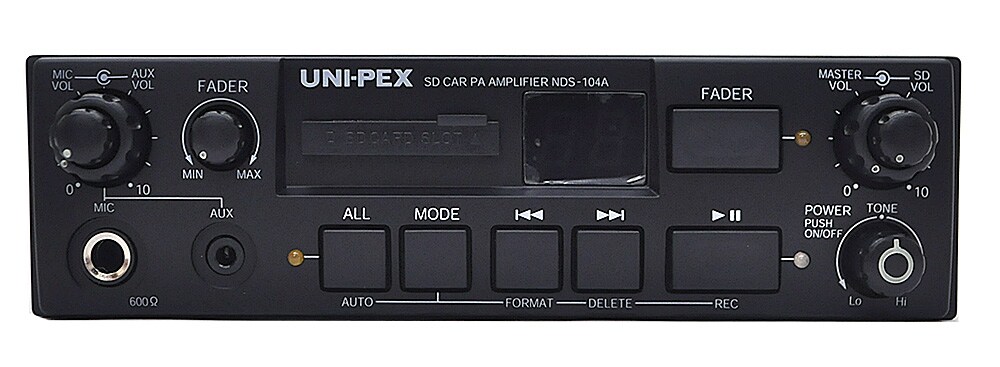

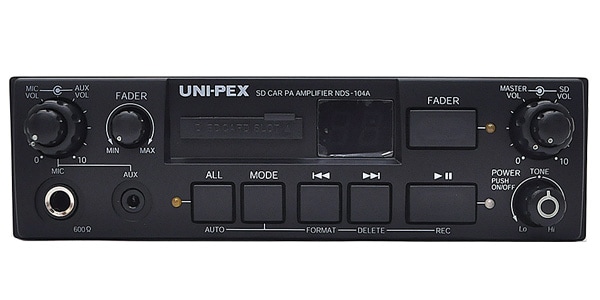

The NDS104A is a UNI-PEX in-car amplifier with an SD recorder. Its DIN size allows for easy installation in-dash or under-dash. It features one microphone input and one auxiliary input for mixed broadcasting. It supports recording and playback in MP3 format.

■Car Amplifier with SD Card
Power Supply: DC 20-32V (24V battery, - ground only)
Current Draw: 0.8A
Rated Output: 10W
Output Load Impedance: 4Ω/8Ω (interchangeable with tip connector)
Input Sensitivity and Impedance: Mic 1, 2: -52dBV, 600Ω, unbalanced

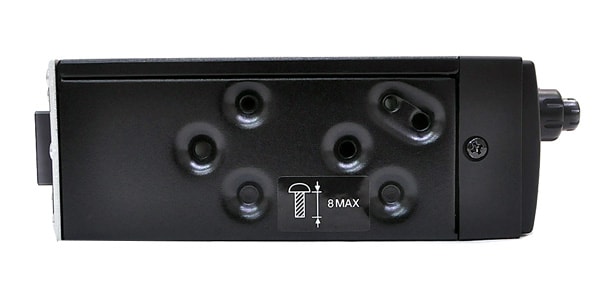

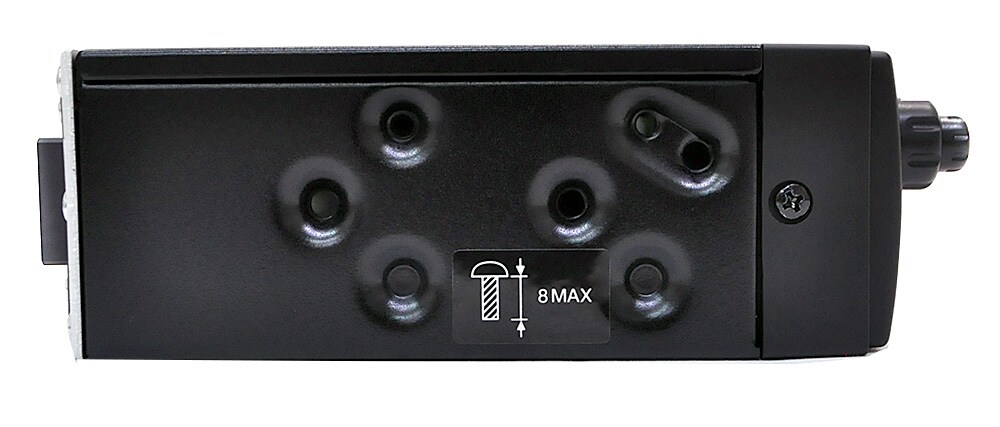

Dimensions (mm): W 178 x H 50 x D 155
Weight: Approx. 1.1kg

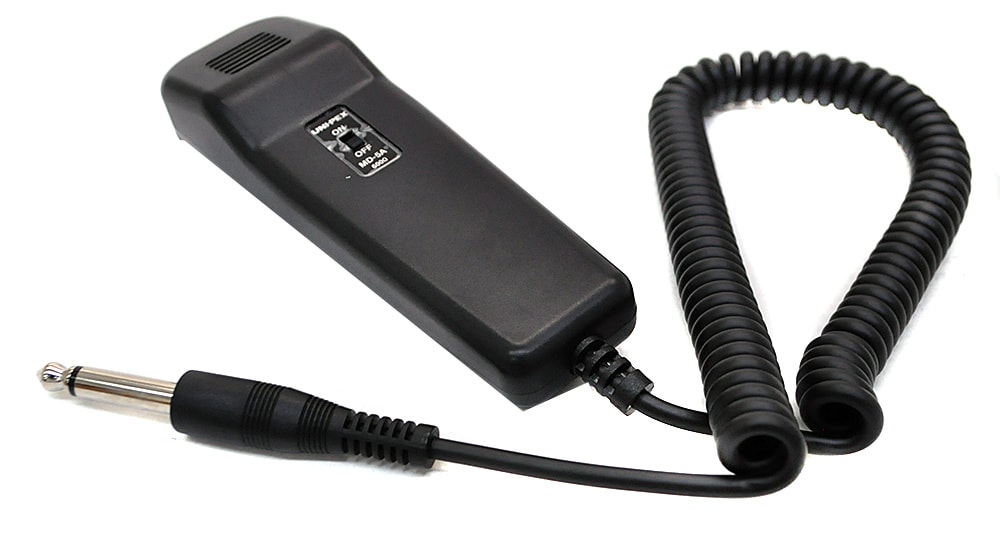

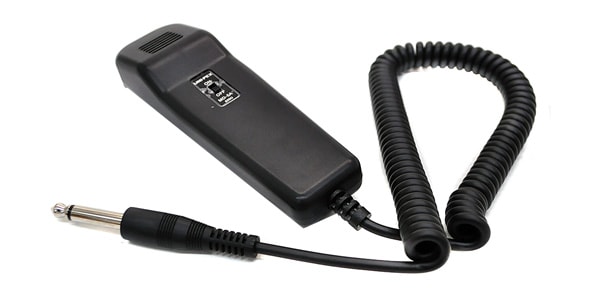

Accessories: Microphone holder
