ObsidianWire / CBLENDERST250K0047

配線図

Variations

The ObsidianWire / Custom Blender allows you to blend the neck and bridge pickups, adding more variety to your Strat sound. Turn the Blender knob back on and you'll instantly return to the traditional Stratocaster 5-way switch sound.

■Electric guitar circuit
■For Stratocaster

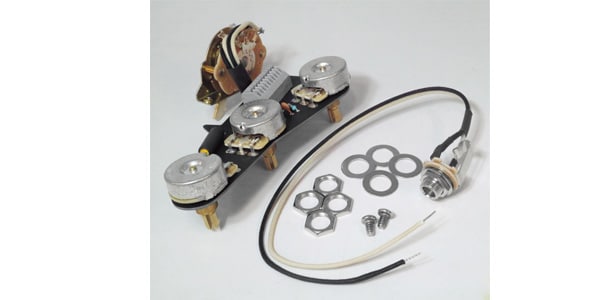

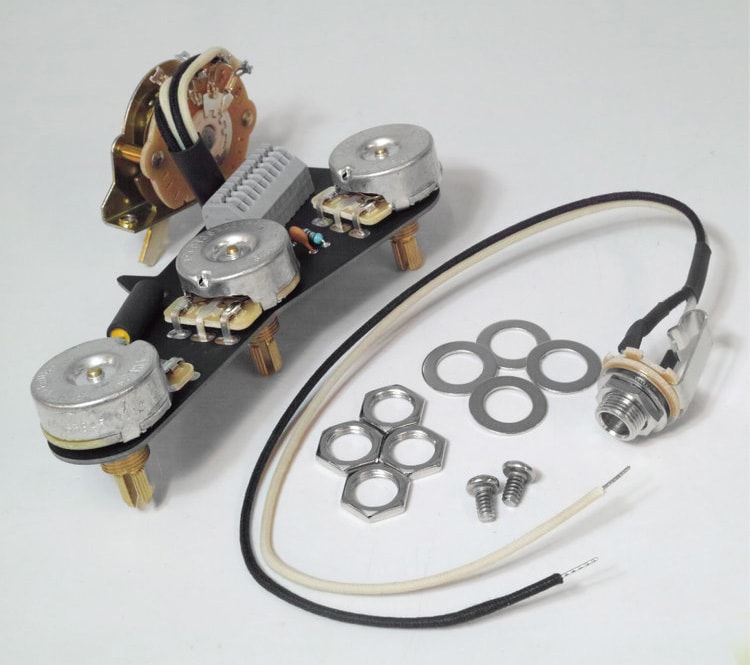

■Components and accessories
・2x ObsidianWire Select 250k (±6%) CTS pots (matched to ±2%), split shaft
・1x ObsidianWire Blender 250k (±10%) CTS pot, split shaft
・1x Oak Grigsby 5-way switch
・1x Switchcraft J11 mono output jack
・1x ObsidianWire Select 0.047μF 150 series polyester film capacitor (hand-selected to be ±10%)
・1x ObsidianWire Custom Spec Treble Bleed Mod
・1 x Printed circuit board (components installed)

■5-way switch position when blender control is ON
1. Blend the bridge pickup with the neck pickup
2. Blend the middle and bridge mix with the neck pickup
3. Middle pickup
4. Blend the neck and middle mix with the bridge pickup
5. Blend the neck pickup with the bridge pickup

■5-way switch position when blender control is OFF (minimum)
1. Bridge pickup
2. Mix the middle and bridge
3. Middle pickup
4. Mix the neck and middle
5. Neck pickup

■Compatible models: USA, MEX Stratocaster
*Since it uses inch-sized pots, for Japanese models, you will need to prepare a control plate made by Fender USA.
*The blend is parallel.
*We do not check the compatibility of parts or guarantee their installation. Please be forewarned.
*The image is for illustrative purposes only. The manufacturer may change specifications without prior notice.
