MOOER / @Wah

Equipped with 5 types of wah/filter modes, this model provides a wide variety of filter sounds.

Mooer @Wah is a pedal that contains 4 different wah/filters and 1 talking effect in a small size. It has AUTO mode, which moves the filter according to the SPEED control setting, and TOUCH mode, which moves the filter according to the picking, and each filter can be operated in two different operation modes.
Simple controls allow you to create a variety of filter sounds.

●Features
- 5 types of wah/filter modes
- Auto (time-based) and touch (dynamic response) operation modes
- Various controls
- True bypass switching
- Micro-sized metal housing

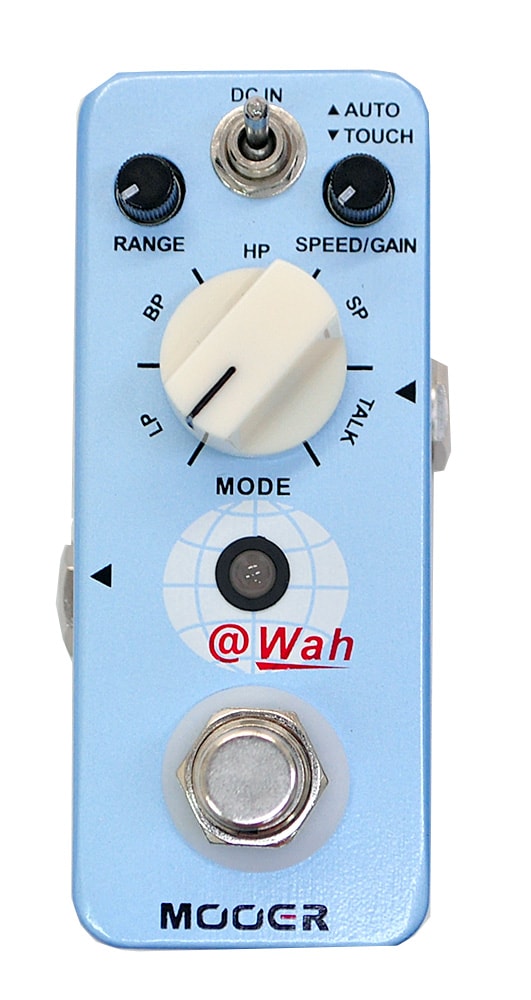

●MODE
The MODE knob selects the filter mode and simultaneously controls the mix and filter attack. The five filter modes are as follows.
・LP (Low Pass)
・BP (Band Pass)
・HP (High Pass)
・SP (Standard)
・TALK (Talking Modulator)

●Specifications
Input: 1/4 inch mono audio jack (impedance: 470kΩ)
Output: 1/4 inch mono audio jack (impedance: 100Ω)

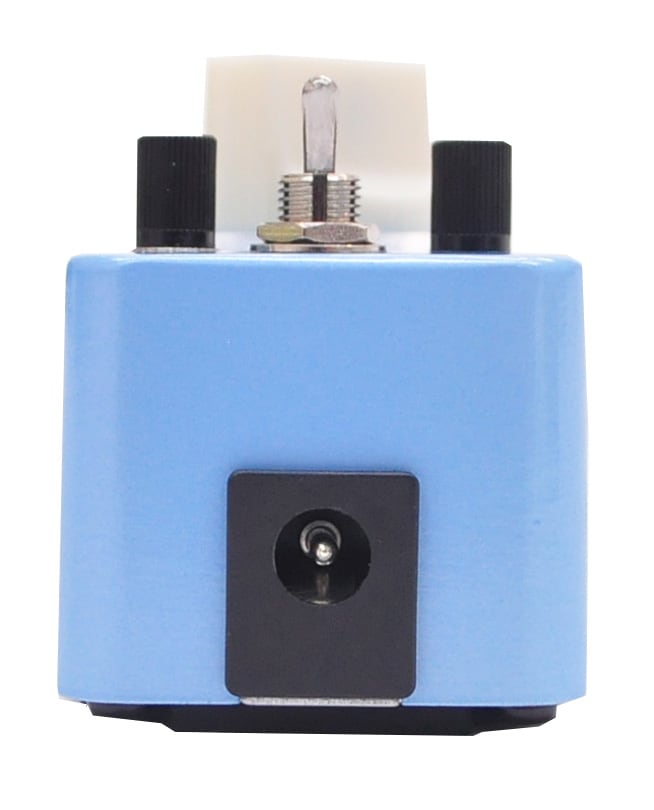

Power supply: Center negative DC9V adapter (cannot be powered by batteries)
Current consumption: 120mA
Size: 93.5mm (D) x 42mm (W) x 52mm (H)
Weight: 140g

Type: Auto-wah
Adapter: 9V center negative (sold separately)
Battery powered: -
Controls: RANGE, SPEED/GAIN, MODE, AUTO/TOUCH
