STAGE EVOLUTION / TRUSS4/10CSET

STAGE EVOLUTION / TRUSS4/10CSET ※画像はイメージです。

※画像はイメージです。
※画像はイメージです。
※画像はイメージです。

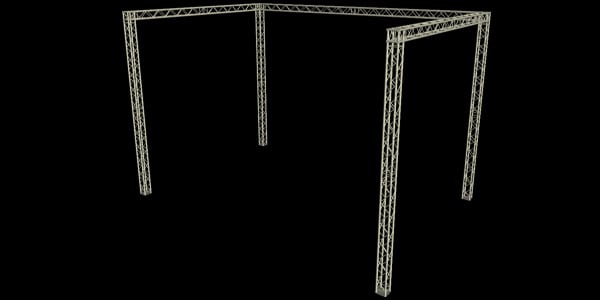

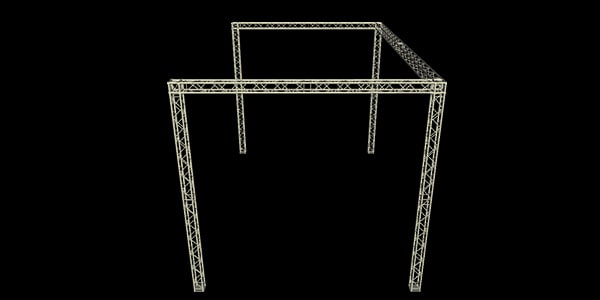

This mini truss set (320cm wide x 220cm deep x 210cm high) features a U-shaped top and four legs. You can adjust the size to your liking by adding straight trusses of the same specifications. Lightweight and easy to assemble, it's recommended not only as an object but also for decorating stores.

トラス耐荷重表

MINI TRUSS/10cm幅
長さ（m）	平均分布（kg/m）	1点（kg）	3点（kg）
2	104	172	104
3	69	113	85
4	42	84	63
5	26	65	49
6	18	53	40

※平均分布：全体に均等に重さをかけた際の1mあたりの耐荷重

※1点：中央1点のみに重さをかけた際の耐荷重

※3点： 3点に均等な重さをかけた際の1点あたりの耐荷重

■ Truss Set

Set Contents
■ Square Truss TRUSS4/200/10II x6
・200cm
・20mm Diameter
・10cm Width
・Approx. 3.2kg
■ Square Truss TRUSS4/300/10II x1
・300cm
・20mm Diameter
・10cm Width
・Approx. 4.5kg
■ Square Truss Corner TRUSS4/BC/10 x4
・20mm Diameter
・10cm Width
・Approx. 1kg
■ Truss Connecting Fittings TRUSS4/HC/10 x8
・For 20mm Diameter and 10cm Width
■ Square Truss Base Plate TRUSS4/BP/10 x4
・10cm Width
・Approx. 0.3kg
