Neunaber Audio Effects / ELEMENTSWETREVERB

Elements Wet Reverb creates a wide variety of reverb sounds with three simple controls. The organic, spacious reverberation is unique to Neunaber Audio Effects.

■Guitar Effects
■Reverb
■Features
・Mix control allows 100% wet setting
・Bypass mode can be set
・Analog dry through for low noise and zero latency
・Compact size
・Powered by standard DC9-12V adapter (batteries cannot be used.)
・Made in Orange County, California USA

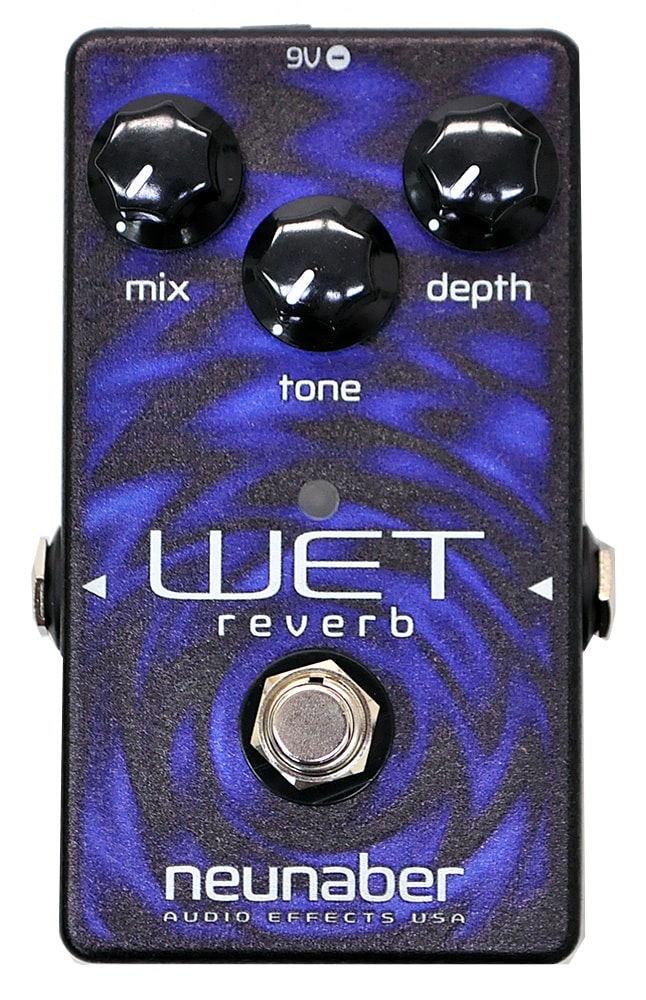

■Controls
・Mix
The Mix knob controls the balance between the dry signal and the reverb sound.
At minimum counterclockwise, it is 100% dry, and at maximum clockwise, it is 100% reverb (kill dry). At around 3 o'clock, it is 50%:50%.
The Mix knob is designed to allow fine adjustments, so you can easily adjust the strength of the reverb by simply turning the knob.
・Tone
Controls the tone of the reverb signal. Does not affect the dry signal. Counterclockwise is darker, clockwise is brighter.
・Depth
Controls the length of the reverb. It can be used to adjust the size of a space.
■Specifications
Specifications
Input level (Mix<60%): +4 dBV, Instrument Level
Input level (Mix>60%): -10 dBV, Instrument Level
Input impedance: 1 MΩ (mono)
Output impedance: 1 kΩ (mono)
Gain (active/bypass): +/-0.5 dB (dry signal only)
Frequency response: 20 Hz to 20 kHz, +0.1 dB, -0.5 dB (dry signal or bypassed)
Total harmonic distortion: < 0.0015 % typical (dry signal or bypassed, 22 Hz to 22 kHz, 1.0 Vrms, 1 kHz)
S/N: 109 dB dry/bypassed signal (typical, A-weighted), 100 dB Mix @ 50% (typical, A-weighted)

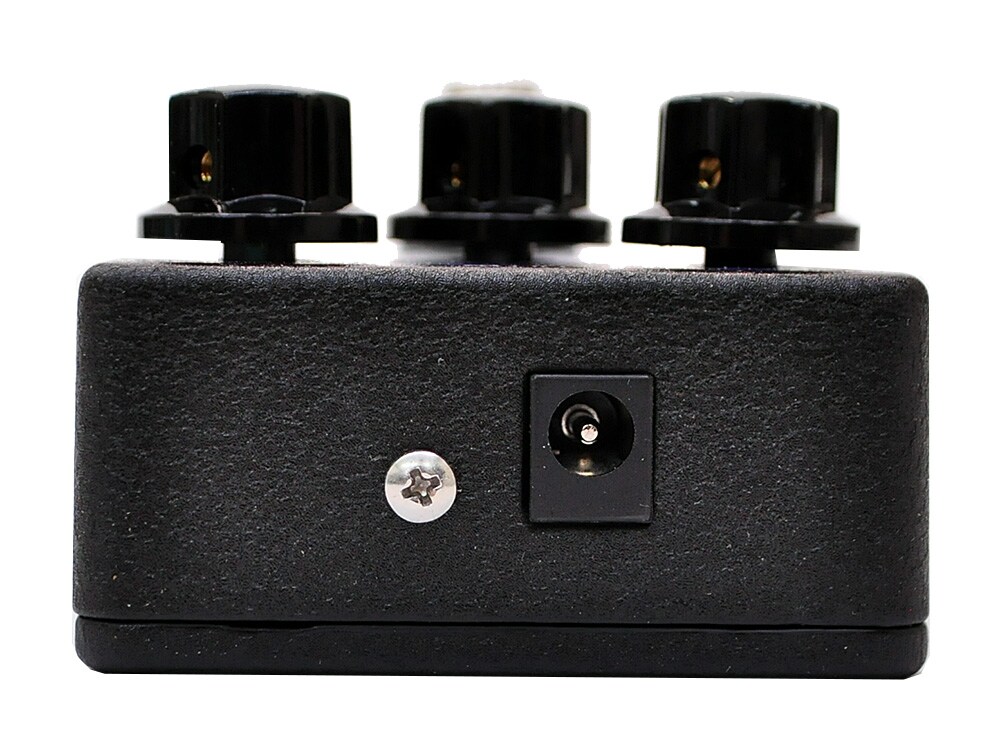

Power terminal: 9-12 V DC, 80 mA　Plug: center-negative, 5.5 mm OD x 2.1 mm ID
Size: 73 mm W, 117 mm L, 51 mm H
Weight: 200g
