An amp simulator that uses HOTONE's proprietary CDCM modeling technology.
The Binary series uses HOTONE's proprietary modeling technology ""CDCM"" like the XTOMP, and each model is designed to allow deeper use of each effect category, and can make full use of preset saving and recall.

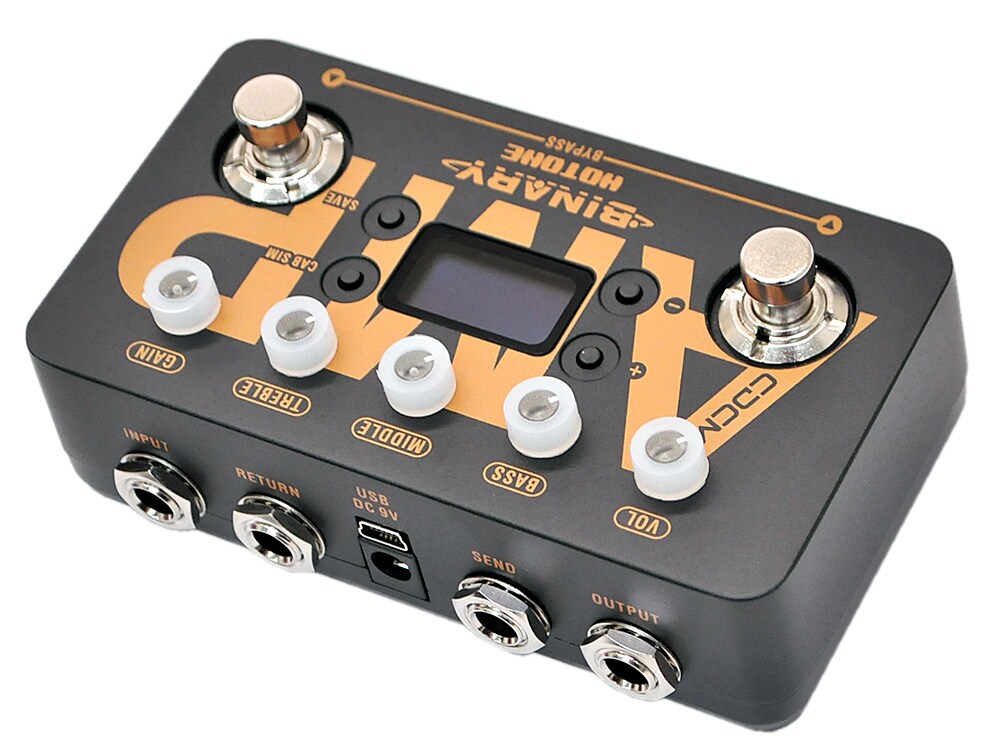

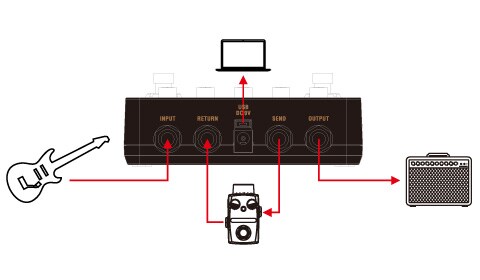

Binary AMP reproduces 16 unique classic, modern, and boutique tube amps (only one model is solid state) using CDCM modeling technology. It can be used by connecting it to the return of the amp as a preamp, or by connecting it to the input of the amp as a driving preamp.
In addition, the simulation of each amp also includes modeling of the original cabinet (CDCM), and you can connect this AMP to an audio interface or mixer for direct recording or line play.
Family model that uses XTOMP technology
High sound quality achieved by dual DSP platform
24-bit A/D/A conversion that achieves 110dB S/N ratio
16 types of CDCM emulations that reproduce legendary amps (on/off cabinet modeling)
Effects loop
Equipped with a USB port that allows firmware updates and free PC/Mac software for loading and managing algorithms.
10 presets (2 presets x 5 banks)
AD/DA: 24-bit A/D/A
Sampling rate: 48kHz (Binary IR Cab/44.1kHz)
Frequency response: 20Hz-20kHz
S/N: Up to 110dB
Power supply: DC 9V center negative
Current consumption: 200mA or more
Dimensions: 121mm (D) x 72mm (W) x 47mm (H)
Weight: 340g

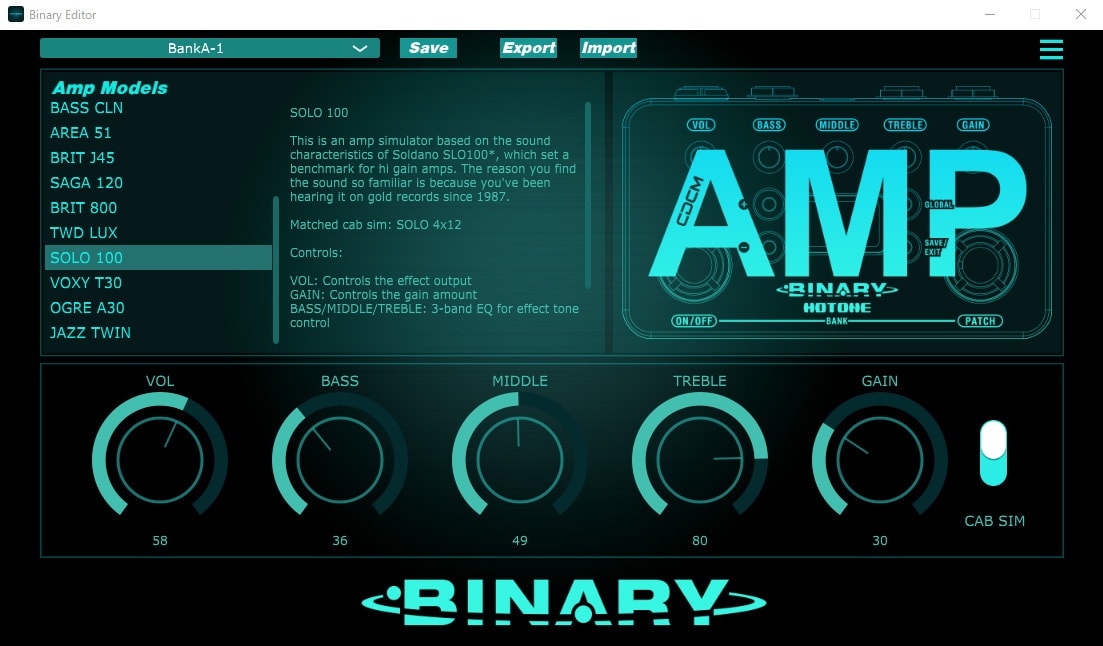

■BINARY EDITOR (Mac / Win)
All Binary series models are equipped with a USB terminal. Use the included USB cable to connect to a computer and manage presets and set parameters on a PC (or Mac). The editor software is simple and intuitive to use.
Presets operated on a PC can be saved to the computer. You can import/export these presets to the unit, and a description of the preset effect (model) is also displayed, so you can check the model name that was the basis for the emulation and details of each control.

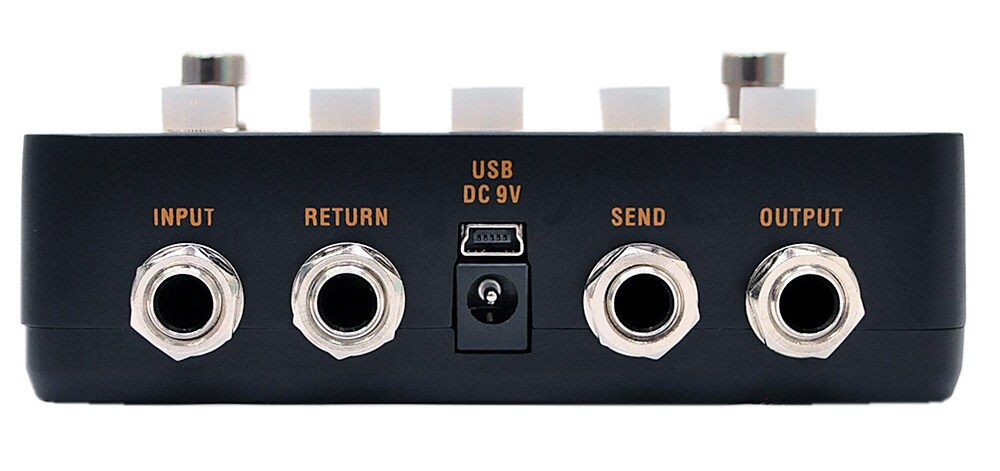

■INPUT / OUTPUT section
Input: 1/4 inch mono phone jack
Input impedance: 1M Ohms
Output: 1/4 inch mono phone jack
Output impedance: 100 Ohms
Effect send/return
USB port
■Digital section
Number of effects: 16
Number of presets: 2 BANK x 5
Processing: 24bit / 44.1kHz
Audio frequency response: 20Hz-20kHz
S/N ratio: 110dB
■Other
Power supply: 9V DC center negative
Current consumption: Max. 200mA
Dimensions: 121mm (D) x 72mm (W) x 47mm (H)
Weight: 340g
