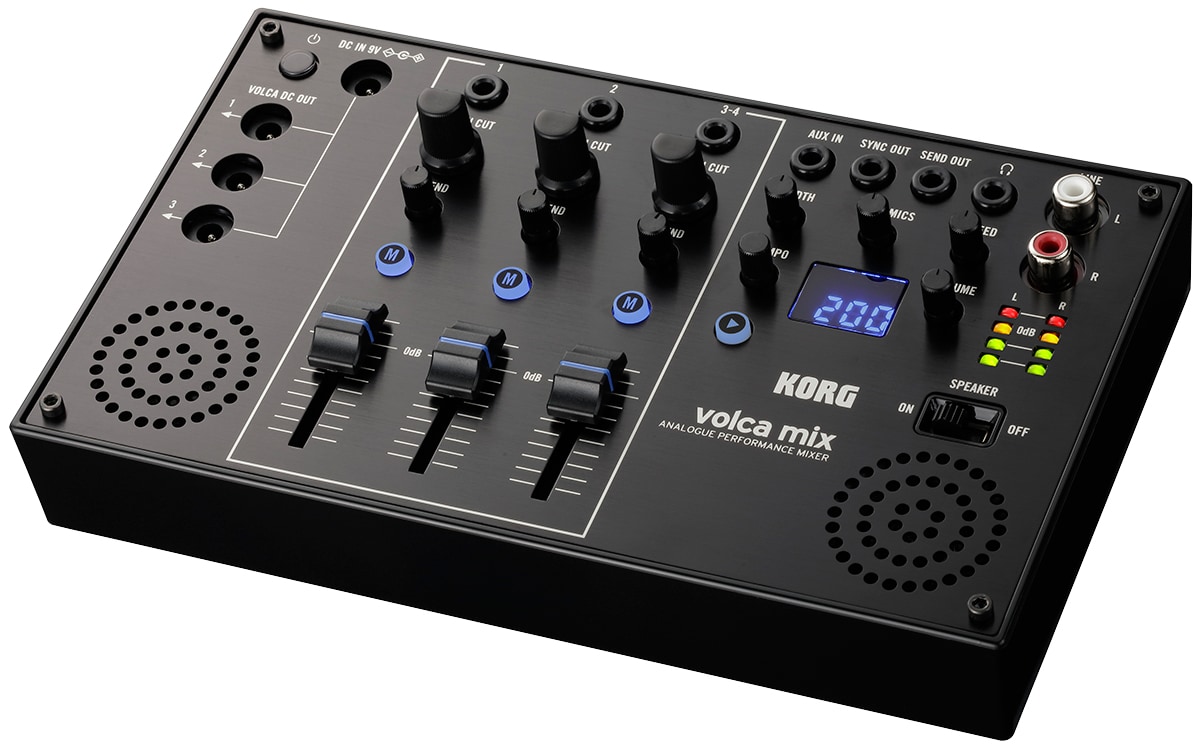

KORG / VOLCA MIX

A four-channel analog performance mixer that lets you create live sets combining multiple Volca units

■Details
Mixer Type: 4-Channel Analog Mixer
Channels: 2 Mono, 1 Stereo
* Mono Output Volca: Volca Keys, Volca Bass, Volca Beats, Volca Kick
* Stereo Output Volca: Volca Sample, Volca FM
Channel Controls: Lo/Hi Cut, Send Level, Mute, Volume (+6dB Gain Boost Available)
Bus: 4-Channel Analog Mix Bus, Mono Mix Send Bus, Stereo AUX In/Return Bus
Master: Volume
Master Effects: Analog Stereo Width Expander (Width), Analog Dynamic Range Compressor (Dynamics, Speed)
Sync Controls: Play, Tempo
Inputs/Outputs
Mixer Inputs: Mixer In x 3 (3.5mm stereo mini jack, 0dBu)
AUX: AUX In (3.5mm Stereo mini jack, 0dBu)
Send: Send Out (3.5mm stereo mini jack, 0dBu)
Sync: Sync Out (3.5mm stereo mini jack, 5V output level)
Audio Output: LINE Out (L/R, RCA pin jack, max. 11.1dBu)
Headphones (3.5mm stereo mini jack)
Speakers: Built-in stereo speakers, On/Off
Power Supply: AC Adapter KA350 (DC 9V)
Current Draw: 300mA
Power Output: VOLCA DC Out x 3 (connect with included DC-DC cable, up to 800mA total, 9V)
Other: Dimensions: 193 (W) x 115 (D) x 45 (H) mm (including knob height)
Weight: 350 g
Accessories: AC Adapter KA350, DC-DC cable x 3 x Audio Cables
