IK MULTIMEDIA / iRig Stomp I/O

Pedal board controller for iOS device/Mac/PC connection with integrated audio/MIDI interface function

■ Multi-effector for smartphones

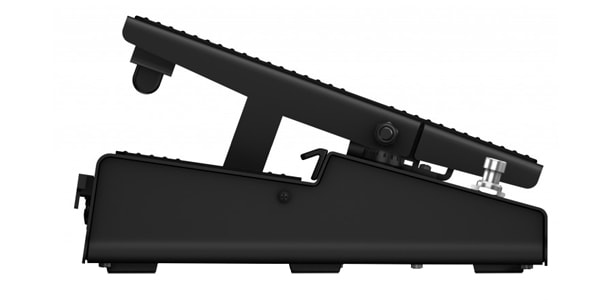

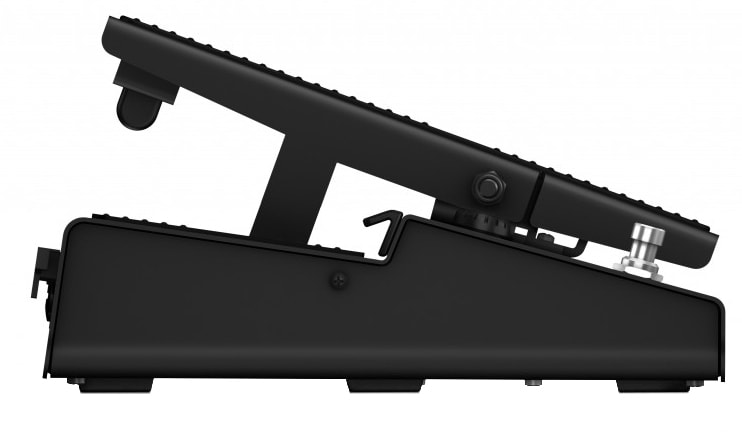

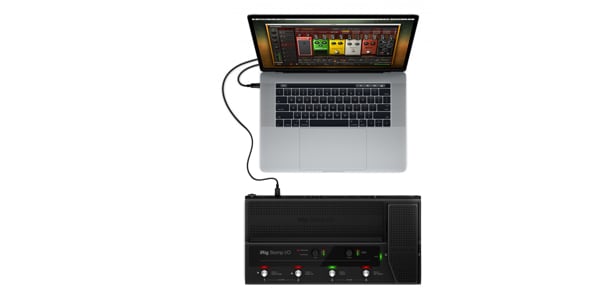

The iRig Stomp I/O consists of 4 footswitches with highly visible LEDs and an expression pedal. Equipped with an audio interface function, it works seamlessly with software that runs on a connected Mac/PC or iOS. Input/output and operations can be performed with the iRig Stomp I/O at your feet. In addition to the controller of the main unit, it has 2 external footswitch/foot pedal terminals and MIDI IN/OUT, so various parameters can be controlled from the iRig Stomp I/O.

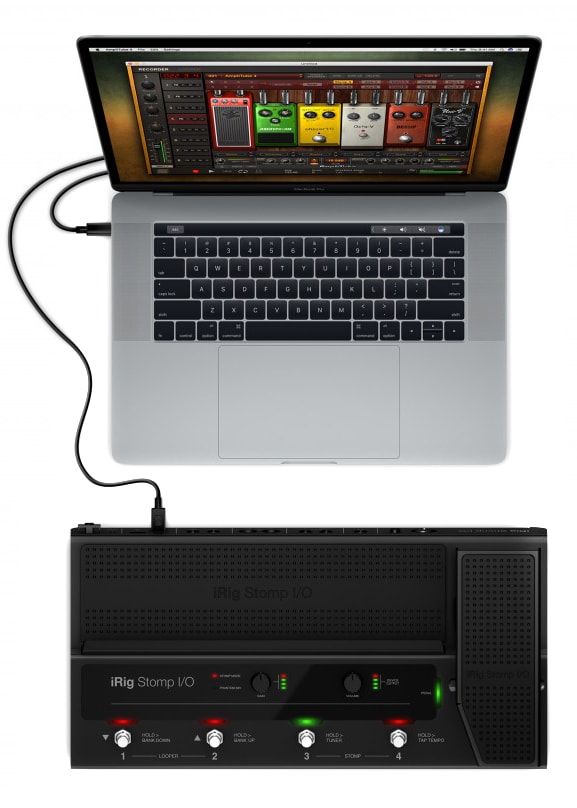

The iRig Stomp I/O consists of 4 footswitches and an expression pedal. You can use the iRig Stomp I/O at your feet to turn effects such as AmpliTube software running on the connected Mac/PC or iOS, switch presets, and adjust the volume. Furthermore, since it is equipped with 2 external footswitch / foot pedal terminals and MIDI IN/OUT, it also serves as a control terminal with great expandability such as combining with other MIDI controllers.

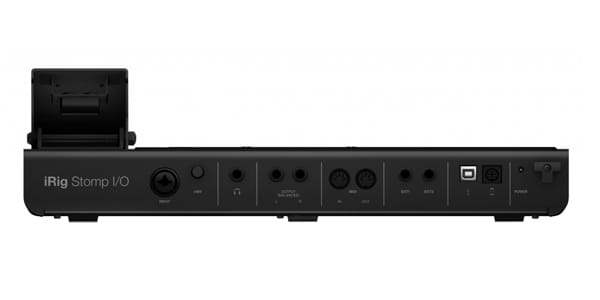

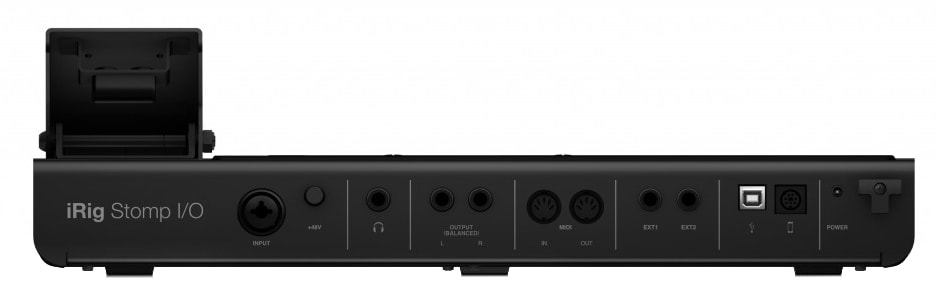

The input terminal adopts Neutrik XLR and 1/4 inch standard combo terminal, and the XLR terminal has a 48V phantom power supply that can also connect a condenser microphone. It is a specification comparable to a single audio interface that supports not only guitar/bass but also vocal recording. There are 2 outputs, a main stereo balanced output and a headphone output. A high-quality class A preamplifier is used to amplify the gain of the input. Input/output levels can always be monitored with a highly visible LED meter.

■ Main features
・Equipped with 4 foot switches and expression pedals.
・The audio interface section supports 24-bit/96kHz.
・Adopts Neutrik XLR and 1/4 inch standard combo terminals (Hi-Z/Mic/Line).
・48V phantom power.
・A class A preamplifier is used for input gain amplification.
・Input/output is displayed by LED meter.
・MIDI IN/OUT terminal, 2 external foot switch/foot pedal terminals.

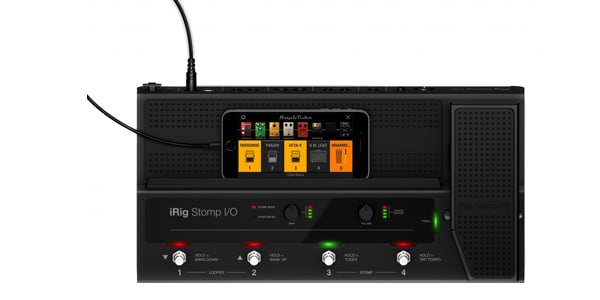

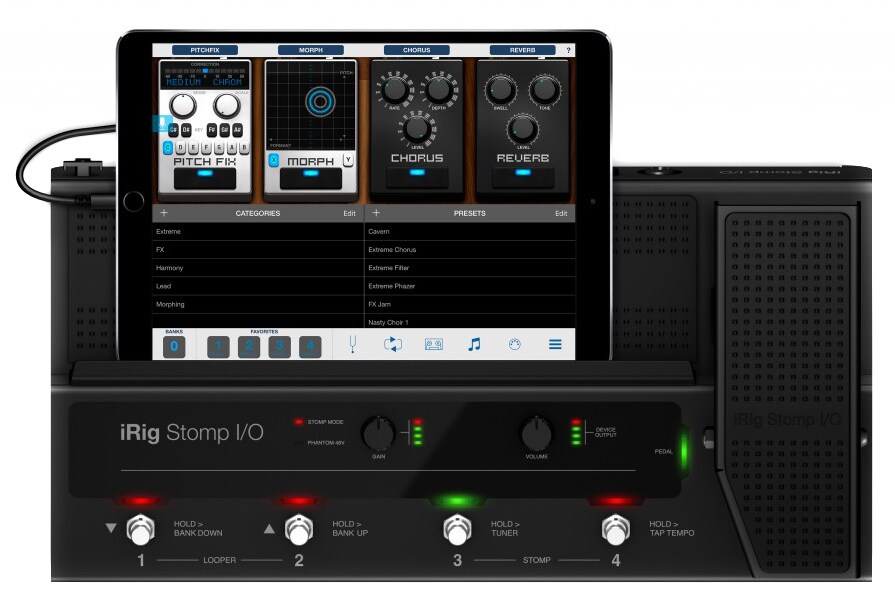

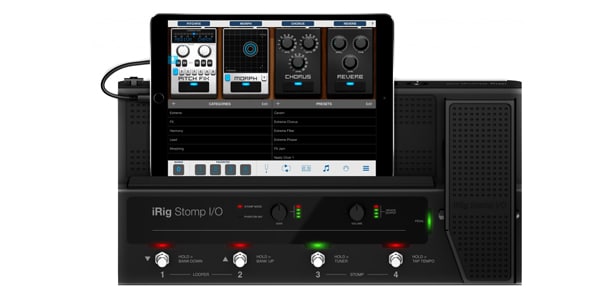

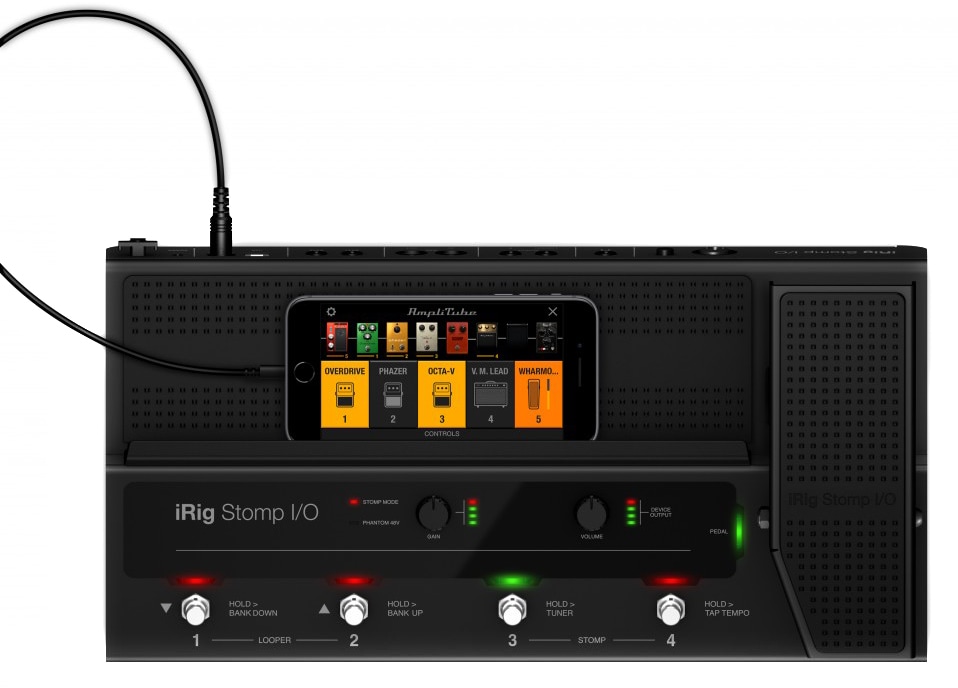

・A device bay where iPhones, iPads, and tablets can be installed.
・Software/application licenses worth more than 800 (100,000 yen) in total are included (product user registration required). AmpliTube 4 Deluxe, T-RackS Processor (White 2A, Black 76, VC-670, EQP-1A, Mic Room), Ableton Live 9 Lite for Mac/PC, AmpliTube for iOS, AmpliTube Acoustic for iOS, VocaLive iOS, Mic Room for iOS.
Seamlessly supports AmpliTube (iOS/Mac/PC) and VocaLive (iOS).
・Can be used while supplying power to the iPhone/iPad connected to Lightning.
・Also works as a stand-alone MIDI foot controller.
・Robust design that can withstand use on stage.
・Available in both studio and live.
・Ideal not only for guitarists/bassists but also for vocalists.
・Comes with a lightening connection cable and a USB connection cable.
・Powered by USB bus power and DC adapter.
・Made in Italy from design to manufacturing.

■ Specifications:
Size: 41.5cm x 21cm x 7.2cm
Weight: 3.2kg

Included items
iRig Stomp I/O
Lightning to Mini-DIN connection cable (60 cm)
USB A-Type to USB B-Type connection cable (2.5m)
DC power supply

■ Operating environment:
iOS device with iOS 6 or later
iPhone 8 Plus, iPhone 8, iPhone SE, iPhone 6s Plus, iPhone 6s, iPhone 6 Plus, iPhone 6, iPhone 5s, iPhone 5c, iPhone 5, iPod touch 6th generation, iPod touch 5th generation, iPad Pro (10.5-inch) , iPad Pro (12.9-inch) 2nd generation, iPad Pro (12.9-inch) 1st generation, iPad Pro (9.7-inch), iPad mini 4, iPad Air 2, iPad mini 3, iPad Air, iPad mini 2, iPad mini , iPad 5th generation, iPad 4th generation.

Mac: Mac OS X 10.6 or later. One free USB port
Windows: Windows 10. One free USB port
