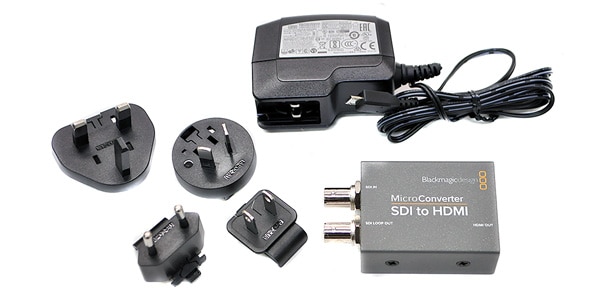

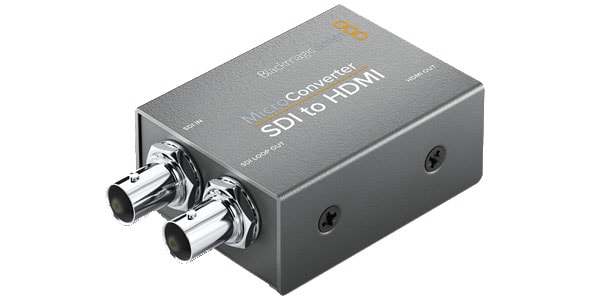

Blackmagic Design / Micro Converter SDI to HDMI wPSU

Ultra-compact broadcast quality SD / HD converter! Convert SDI to HDMI. Comes with a power supply.

■ SDI / HDMI converter
Connection
■ SDI video input: 1 (SD / HD / 3G-SDI)
■ SDI video output: SDI loop output x1
■ HDMI output: HDMI type A output
■ Supported multi-rate: SD / HD automatic detection
Update, configuration, power supply: Micro USB
format
■ SDI video format: 525i59.94 NTSC, 625i50 PALHD video format: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF25, 1080PsF29 .97, 1080PsF30, 1080i50, 1080i59.94, 1080i60
■ SDI standard: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M
■ SDI video rate: SDI video connection can be switched between SD and HD Level A / Level B 3G-SDI
■ SDI color accuracy: 4: 2: 2
■ SDI color space: YUV
■ Automatic SDI switching: Automatic detection of SD / HD / 3G-SDI
■ HDMI video format: 525i29.97 NTSC, 625i25 PAL, 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60
■ HDMI color accuracy: 4: 2: 2
■ HDMI color space: YUV
■ 76.5mm x 45.8mm 24.8mm 150g

9338716003871
