BAE / 1073MPF Single Channel

1073MP equipped with a high-pass filter. Produces a fat, overtone-rich vintage sound based on the Neve 1073.

■ Main features

・ Class A, 1U chassis transformer coupling design
・ Equipped with high-pass filter based on inductor
・ Compatible with low output ribbon microphone with 71dB GAIN
・ Input impedance can be switched between 1200-300Ω
・ Supports line level input
・ High impedance DI for guitar and bass
・ Equipped with polarity reversal switch
・ Equipped with the same Carnhill St Ives transformer as 1073 and 1084

■ Specs

Number of channels: 1
Frequency response: 10Hz-55kHz
High-pass filter: 50Hz, 80Hz, 160Hz, 300Hz
Equipped with phantom power

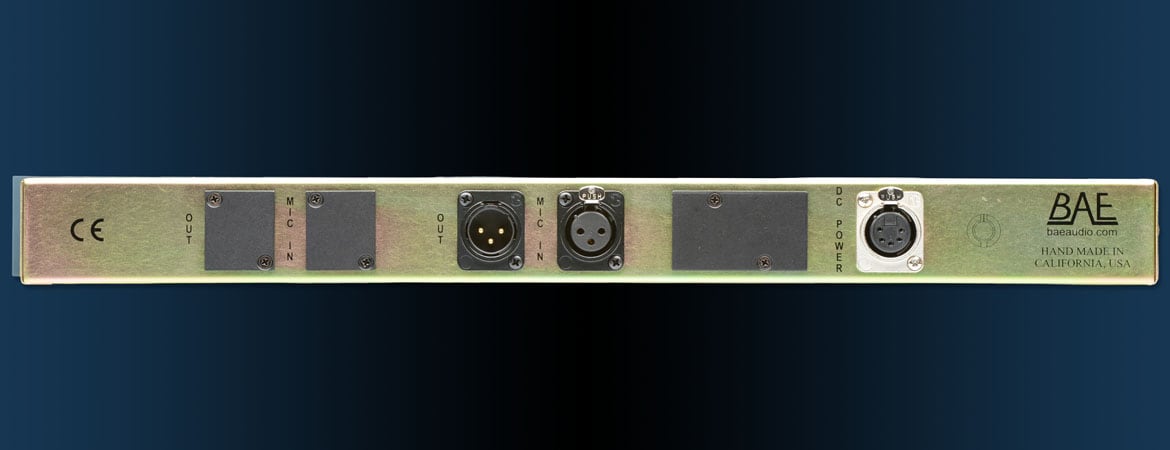

Analog input: 1 x XLR (microphone), 1 x 1/4" (Hi-Z)
Analog output: 1 x XLR

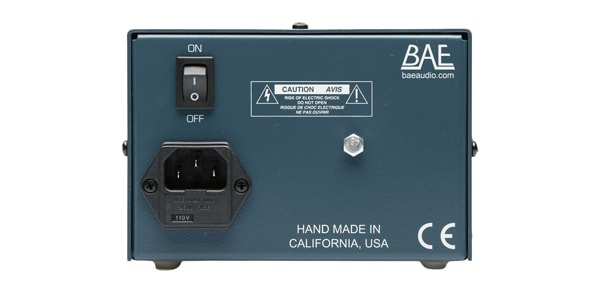

Power requirements: 115/230 VAC, 30W (External power supply included)
Dimensions: 19W x 1.75L x 9D (1U rack size)
Weight: 3.63 kg
