BAE / 1028

Channel strip with Carnhill transformer. The Mid / High frequency of the EQ section is designed to be higher than that of the "1073", and this model also has a low-pass filter.

■ Main features
・ Hand-wired design
・ Equipped with Carnhill (St. Ives) transformer
・ Up to 80 dB gain
・ Equipped with high-pass / low-pass filter

■ Specs

Number of channels: 1
Frequency response: 10Hz-55kHz
3-band EQ
HF: +/- 16dB shelf, 10kHz, 12kHz, 16kHz, 20kHz and 24kHz
MF: +/- 18dB +/- 12dB or +/- 18dB peaking, selectable center frequency 160Hz, 270Hz, 360Hz, 510Hz, 700Hz, 1.6kHz, 3.2kHz, 4.8kHz, 7.2kHz, 8.2kHz, 10kHz
LF: +/- 16dB shelf, 35Hz, 60Hz, 110Hz & 220Hz selectable frequency
High pass filter, 50Hz, 80Hz, 160Hz, 300Hz
Low-pass filter, selectable frequency of 18dB per octave slope, 6kHz, 8kHz, 10kHz, 14kHz, 18kHz
Equipped with phantom power

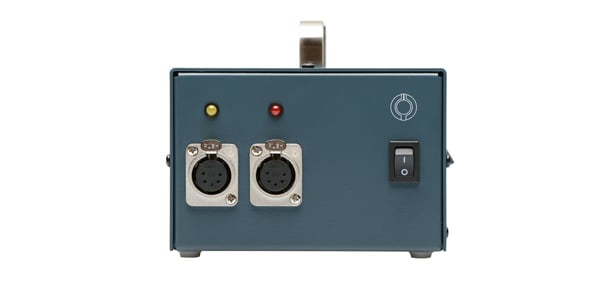

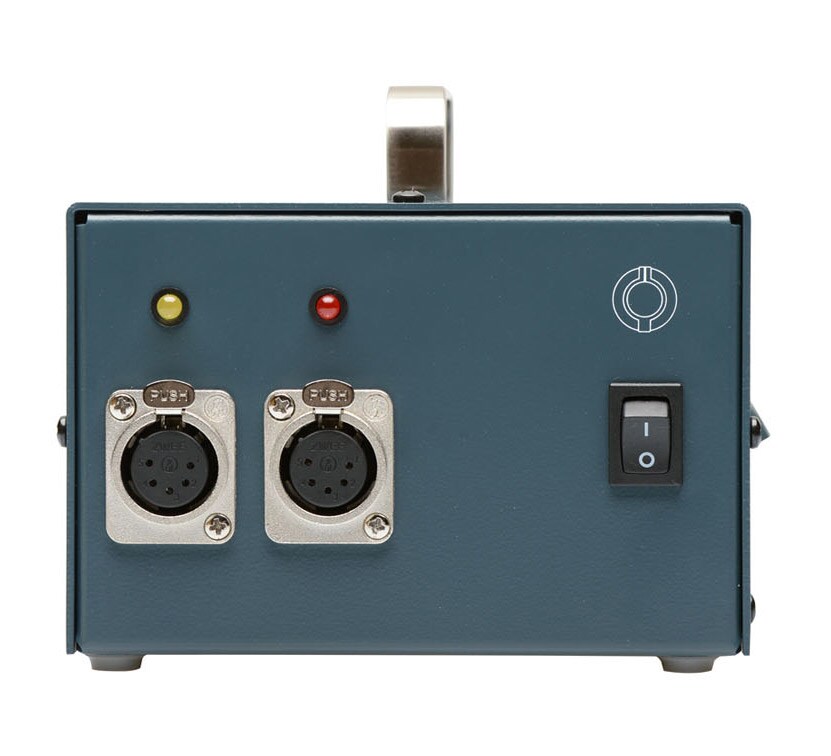

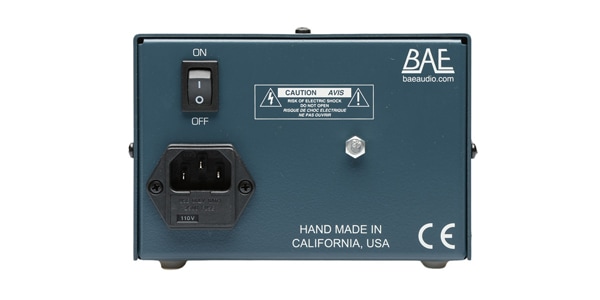

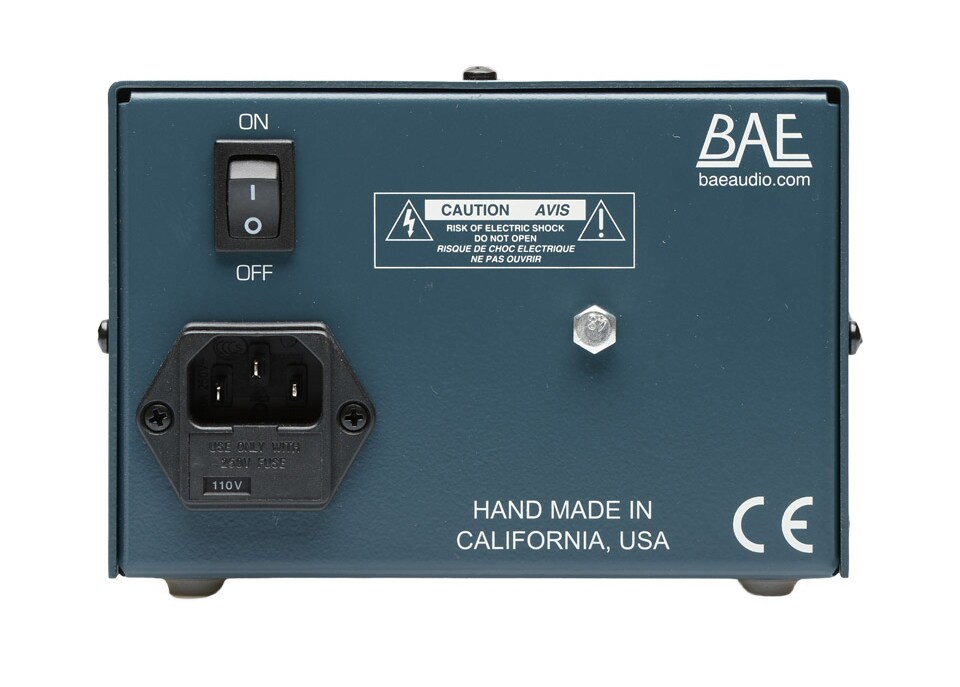

Power supply: External power supply included
Dimensions: 1U rack size
Weight: 4.54 kg
