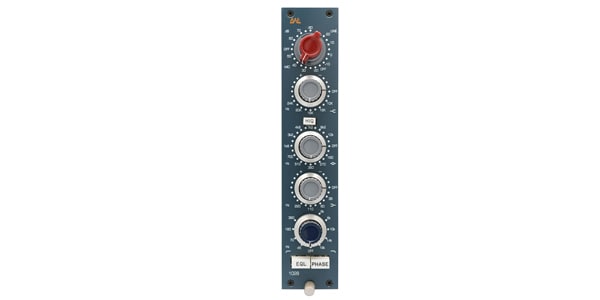

BAE / 1028 Module

This channel strip features a Carnhill transformer. Compared to the company's ""1073"" model, the Mid/High frequencies in the EQ section are designed to be higher, and it also includes a low-pass filter.

■Channel Strip

The 1023 is a fully hand-wired channel strip using Carnhill (St. Ives) transformers. It features the exact same mic/line preamps as the 1073, but with significantly higher frequencies in the Mid/High section. Not only does it offer more frequency settings, but the extended EQ section allows for direct manipulation of the mid-bell curve against overlapping highs/lows, enabling more musical sound shaping. The 1028 also includes a built-in low-pass filter, allowing for 28 frequency settings.


■Main Features

? Hand-wired design

? Equipped with Carnhill (St. Ives) transformers

? Maximum gain of 80 dB

? Equipped with high-pass/low-pass filters

■Specifications

Number of channels: 1

Frequency response: 10Hz-55kHz

3-band EQ

HF: +/- 16dB shelf, 10kHz, 12kHz, 16kHz, 20kHz and 24kHz

MF: +/- 18dB +/- 12dB or +/- 18dB peaking, selectable center frequencies 160Hz, 270Hz, 360Hz, 510Hz, 700Hz, 1.6kHz, 3.2kHz, 4.8kHz, 7.2kHz, 8.2kHz, 10kHz

LF: +/- 16dB shelf, 35Hz, 60Hz, 110Hz & Selectable frequency up to 220Hz

High-pass filter: 50Hz, 80Hz, 160Hz, 300Hz

Low-pass filter: 18dB per octave slope, selectable frequencies 6kHz, 8kHz, 10kHz, 14kHz, 18kHz

Phantom power included

Dimensions: 10-series module size

Weight: 2.72 kg
