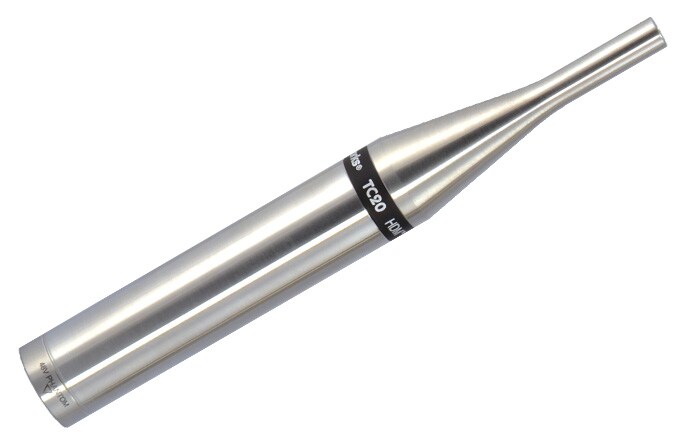

EARTHWORKS / TC20

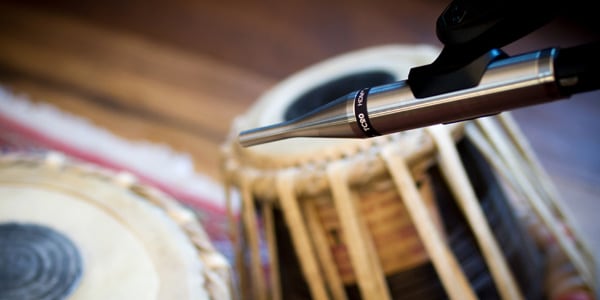

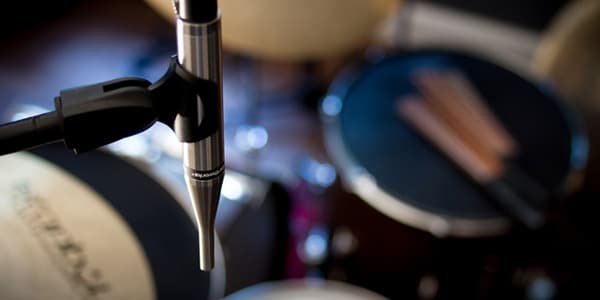

Omnidirectional microphone for loud sources such as drums, percussion and amplifiers. No proximity effect and low distortion allow close placement; 10 Hz–20 kHz response captures sources accurately.

■Condenser microphone
■ For Measurement
■Frequency response: 10Hz to 20kHz ±1/-3dB
■Polar pattern: Omnidirectional
■Sensitivity: 8mV/Pa (-42dBV/Pa)
■Power: Phantom power +24-48V
■Maximum SPL: 150 dB
■Output Impedance: 65Ω
■SN Ratio: 26dB SPL (equivalent. A weighted)
■Size: L x D: 165mm x 22mm
■ Weight: 160g
