ROLAND / VR-09-B　コンボキーボード

Evolving from VR-09, a more operable controller and a highly visible panel design designed for live performance. Piano, organ, synth, all equipped with sound of immediate use!

■ Specifications
■ Keyboard part
● Keyboard: 61 keys (velocity compatible)
● Keyboard mode: Full keyboard, dual (volume balance can be set), split (split point, volume balance can be set), 2-step/3-step keyboard mode (when an optional MIDI keyboard is connected)
■ Sound source section
● Sound source: Virtual tone wheel organ, SuperNATURAL synth, PCM synth (including GM2 tone)
Maximum polyphony: 128 notes
● Number of parts: Organ (3 parts), Piano (2 parts), Synthesizer (2 parts), Drum (1 part), GM2 (16 parts)
● Tone: 245 tones
● Registration: 100 (4 x 25 banks)
● Effects (7 systems always operating/global control): Overdrive, tone, compressor, multi-effects (20 types), delay (6 types), reverb (6 types), rotary (3 types)
■ SMF/audio file player section
● Playable file format: SMF file (format 0, 1), audio file (WAV, AIFF, MP3)
● Recording file format: SMF file (format 0), audio file (WAV format, 44.1kHz, 16-bit linear, stereo)
■ Looper part
● Recording time: 20 seconds (stereo)
● Recordable/readable file format: Audio file (WAV format, 44.1kHz, 16-bit linear, stereo)
■ Other
● Rhythm pattern: 52
● Controller
Virtual Tonewheel Organ: Harmonic Bar x10
Synthesizer Controller: Slider x 5
D-BEAM controller
Pitch bend/modulation lever
Effect knob x 6 (global control)
● Display: Graphic LCD 128 x 64 dots
● External memory: USB memory
● Connection terminal
OUTPUT (L/MONO, R) terminals: Standard type
PHONES terminal: Stereo standard type
EXT INPUT jack: Stereo mini type
DAMPER terminal: TRS standard type
EXPRESSION PEDAL terminal: TRS standard type
MIDI (IN, OUT) terminals
PK IN terminal: 8-pin DIN type
USB COMPUTER terminal: USB B type (USB MIDI compatible)
USB MEMORY terminal: USB A type
DC IN terminal
● Power supply: AC adapter, rechargeable NiMH battery (AA) x 8
● Current consumption: 600mA
● Battery life during continuous use
Rechargeable Ni-MH battery: about 5 hours (about 3 hours when connected to a USB memory)
(It depends on the battery specifications and usage)
*Manganese batteries and alkaline batteries cannot be used

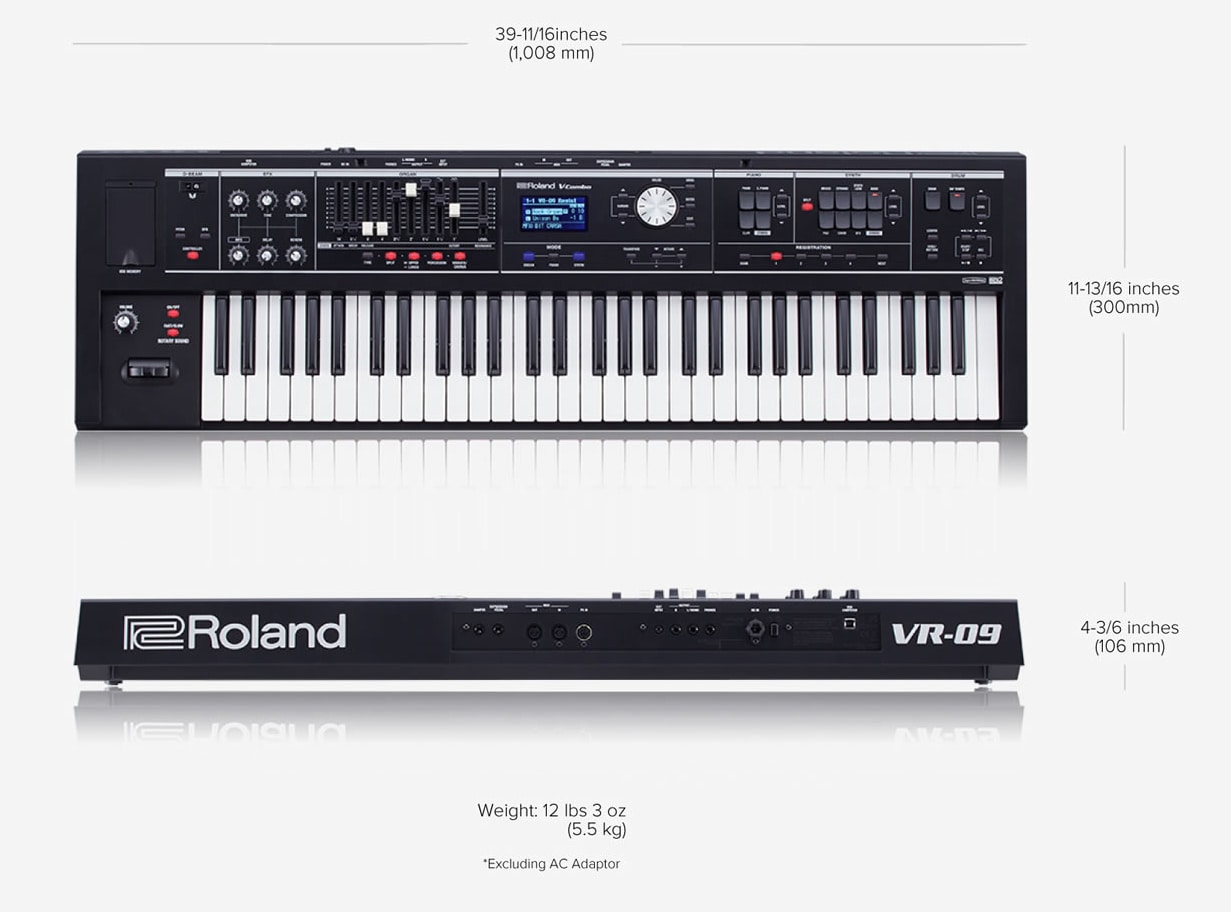

● External dimensions:
1,008 (width) x 300 (depth) x 106 (height) mm
● Weight (excluding AC adapter): 5.5kg
● Accessories: instruction manual, AC adapter, power cord, USB memory protector, warranty card, Roland user registration card
● Sold separately
Keyboard stand: KS-18Z, KS-12
Pedal switch: DP series
Expression pedal: EV series
Pedal keyboard: PK-9
USB memory
