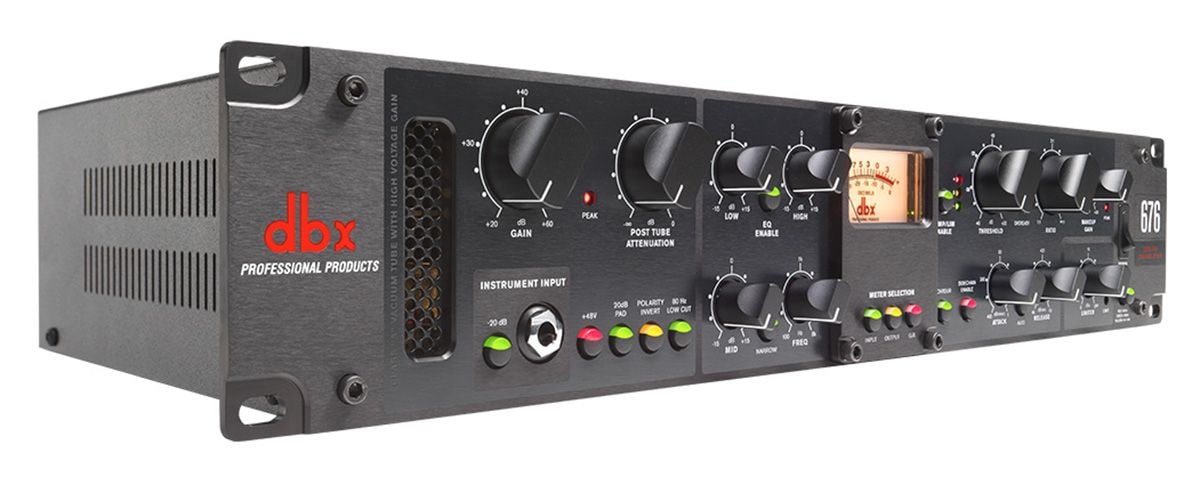

dbx / DBX676FX

This is a 1-channel strip that allows you to create sounds with the warm sound quality that only vacuum tubes can provide.

■Channel Strip

This one-channel channel strip features a vacuum tube microphone preamp, equalizer, and compressor/limiter. The 676 represents DBX's 40-plus year history of dynamic processing. It delivers the lustrous, warm sound of vacuum tubes, allowing musicians to creatively achieve their desired sound. It's ideal for a wide range of applications, from recording to live performances.

■Key Features

- Equipped with the acclaimed dbx equalizer and compressor/limiter
- Three-band parametric equalizer with sweepable midrange
- Compensates for microphone-related sound characteristics
- The compressor section inherits the design of the dbx 162SL
- The limiter uses PeakPlus technology to protect the system from excessive input while maximizing dynamic range.

◎In addition to an XLR microphone input, the 676 also features a standard phone jack instrument input, allowing direct connection of high-impedance instruments like electric guitars. In addition to a post-compressor/limiter line output, the unit also features a preamp output that can extract the post-EQ, pre-compressor signal. The post-preamp has an insert terminal, and the compressor has a sidechain terminal, allowing for use with external processors. The front panel features a vintage VU meter that can be switched to display input, output, or gain reduction. It also features a 20dB pad, +48V phantom power, a polarity reverse switch, and an 80Hz low-cut filter. Specifications

Number of Channels: 1
Microphone Input: XLR, transformer-balanced
Instrument Input: 2-pin standard phone jack, unbalanced
Line Output (Preamp, Compressor/Limiter): XLR/3-pin standard phone jack, servo-balanced
Preamp Insert: 3-pin standard phone jack, unbalanced
Compressor Side Chain: 3-pin standard phone jack, unbalanced
Vacuum Tube: 12AU7A / ECC82
Frequency Response (Microphone Input): 20Hz to 50kHz, +0/-1dB, 40dB Gain
THD+N (Microphone Input to Line Output): 0.25% (0dBu, 1kHz, 40dB Gain)
Power Supply: 100V, 50/60Hz
Dimensions: 483 x 89 x 203mm
Weight: 3.7kg
