JBL / CONTROL 25-1 WH Speaker

Variations

JBL's standard control speaker has been upgraded and renewed. Control25-1 is a 5.25 inch model 200W (8Ω) and 30W (100V line) model. Improved sound quality, output, coverage, and weather resistance. It can be installed indoors or outdoors, and is compatible with both high and low impedance, making it very useful for a variety of applications, including stores, hotels, and conference rooms.

■ Equipment speaker
■ 5.25"
■ 2way
■ 200W
■ 8Ω
■ White
■ Pair

■ Frequency range
(-10 dB) 60 Hz to 20 kHz
(+/- 3 dB) 85Hz-17 kHz
■ Allowable input:
200 W Continuous Program (2 hrs)
100 W (400W peak), Continuous Pink Noise (2 hrs)
75 W (300W peak) Continuous Pink Noise (100 hrs)
■ Maximum SPL: 110 dB ave. Continuous Pink Noise (116 dB peak)
■ Sensitivity: 90 dB, 1W / 1m (ave. 100 Hz-10 kHz)
■ Coverage angle: 100 ° x 100 °
■ Impedance: 8 ohms (THRU setting)
■ Transformer tap:
70V: 30W, 15W, 7.5W, 3.7W
100V: 30W, 15W, 7.5W
■ Recommended protection settings
60 Hz high-pass (24 dB / oct)
■ Woofer: 135 mm (5.25 in)
woven-fiberglass cone with pure butyl rubber surround with Weather-Edge frame protection, high-temp fiberglass voice coil former, high-temp voice coil wire, optimized cone geometry, linear suspension spider, and FEA optimized motor structure.
■ Driver: 19 mm (0.75 in)
PEI diaphragm, low-viscosity ferro-magnetic fluid, and lightweight Kapton Voice coil former.
■ Enclosure: High Impact Polystyrene (HIPS)
■ Installation InvisiBall wall-mounting system included
■ Waterproof and dustproof:
IP-44
MilSpec 810 for humidity, salt-spray, temperature & UV.
MilStd-202F for salt spray
ASTM G85 for acid-air plus salt spray.

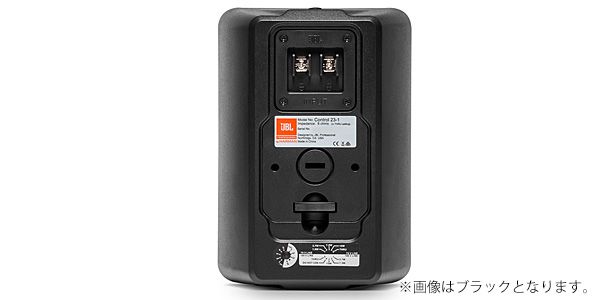

■ Terminal: Terminal strip
■ ROHS compliant
■ Dimensions (H x W x D): 243 x 188 x 145 mm
■ Weight: 3.4 kg
■ Accessories: InvisiBall Wall-mounting system
■ Options sold separately
・MTC-25UB-1-Yolk-type U-bracket
・MTC-25WMG-1-WeatherMax grille with backing
・MTC-28 / 25CM-Ceiling-Mount InvisiBall adapter
