SENNHEISER / XSW 2-ME3-JB Wireless Lavalier Microphone Set

Sennheiser's XS wireless system, which brings together everything you need to use in music, drama, and speech, is very easy to use and gives you a Sennheiser sound. It is a product that can be set up immediately and can be handled intuitively.

feature
● Multi-function
XS Wireless 2 has many features. Detailed RF and AF levels can be checked on the receiver and can be changed manually on the receiving frequency, making it safe and complex for setup.

● Professional live sound
In developing the XS Wireless 2, we have not compromised on acoustic characteristics such as banging bass, sharp treble, and low noise transmission. This system comes with a set of microphones that have demonstrated their abilities on stages around the world. The receiver is true diversity and eliminates dropouts.

● More flexible
The XS Wireless 2 receiver is highly flexible. The receiver is housed in a sturdy metal housing and includes a rack mount kit that can also be installed in fixed equipment. The removable antenna allows for a front whip mount and an optional external antenna connection.

An analog wireless microphone that can be easily used for singers, theaters, speeches, etc. You can easily deliver professional sound without bothering the setting. The true diversity receiver can withstand harsh stage conditions, and the frequency can be changed automatically / manually, making it flexible in any field. It also supports rack mounting and can be installed in fixed equipment. The included headset mic ME 3 is perfect for dance vocals.
・ Easy setup for anyone
・ A maximum of 7 license-free B-type devices can be used at the same time (limited to use with a transmitter-receiver distance of 5 m or more and a transmitter-to-transmitter distance of 20 cm or more).
・ Frequency setting is automatic setup and manual setup with scan function.
・ Drives for about 10 hours with two alkaline AA batteries
・ Rack mount kit included

■ Receiver (EM-XSW 2-JB)
True diversity method
Dimensions: 200 x 42 x 127mm, 680g
Power supply: 12V DC / 300mA
Housing: metal, microphone: ABS
AF transmission range: 50-16,000Hz (-3 dB)
Total Harmonic Distortion (THD + N) :? 0.9%
RF output power: 10mW
Bandwidth switching: up to 24 MHz
Operating time: Approximately 10 hours
Modulation method: Wideband FM
Output voltage: 1/4 (6.3 mm unbalanced: +6 dBu, XLR (balanced): +12 dBu
Number of simultaneous use: Up to 7 waves
Frequency band: 806-810 MHz
Sensitivity: <3 μV at 52 dB (A) rms S / N
Noise: switchable from 3 dBμV to 28 dBμV (via Pilot Tone)
Synchronization: 2.4 GHz, Low Power OQPSK (only active during synchronization)
Audio adjustment range: 40 dB, adjustable in 5-dB steps
Line: 20 dB, switchable
Input sensitivity: 1.5 mV / Pa
Operating temperature range: 0 ° C to + 40 ° C during use, -20 ° C to + 70 ° C during storage
Reception principle: Double superheterodyne method

■ Body pack transmitter (SK-XSW-JB)
Dimensions / Weight: 71 x 96 x 28mm, 95g
Operating time: Approximately 10 hours
Power supply: 2 AA alkaline batteries
Housing: ABS resin
AF transmission range: 50-16,000Hz

■ Headset microphone (ME 3-II)
Condenser microphone
Directivity: Unidirectional
S / N ratio :? 103 dBA
Adjustment Range Transmitter: 0 to -30 dB, adjustable in 10 dB steps

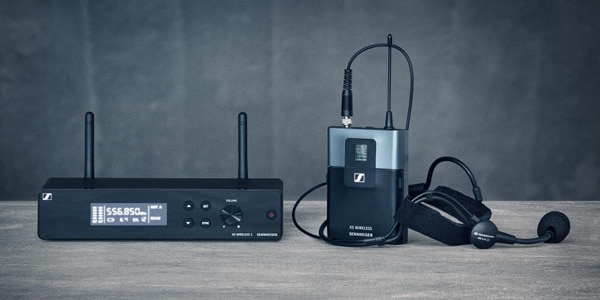

Included items
1 x receiver EM-XSW 2
1 x body pack transmitter SK-XSW
1 x Headset Microphone ME 3-II
1 x power supply NT 12-5 CW
2 x AA batteries
1 x rack mount kit
1 x pouch
user manual
