ART / HEADAMP4PRO

メーカーサイト商品ページ

Variations

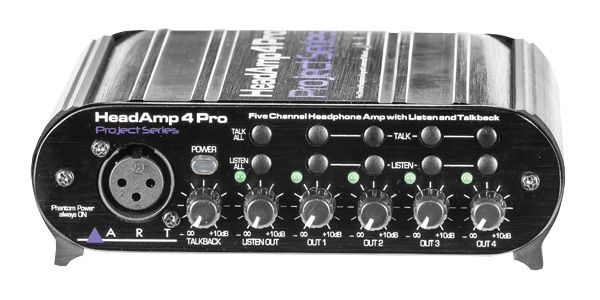

This 5-channel headphone amplifier features talkback functionality. It allows you to monitor multiple inputs mixed together. Each channel is equipped with an AUX input jack, allowing each channel to function as a separate headphone amplifier.

[直輸入品][Direct Import]

■ Equipped with five independent headphone outputs in a compact housing. This headphone amplifier also features a talkback function.
■ The talkback function can send signals from one channel to all channels.
■ Multiple inputs can be mixed and monitored. Up to five inputs can be monitored simultaneously.
■ Each channel is equipped with an AUX input terminal. Each channel can also be used as a separate headphone amplifier.
■ Equipped with a listen function, allowing for versatile connections. Each channel is equipped with a listen button, and the sound of the channel that is pressed is output from the listen out. When used in combination with the AUX input, it allows for a variety of uses not possible with a regular headphone amplifier.
■ The 1/4"" input terminal can also be adjusted for line level.

■Input Connector: 1/4"" Stereo TRS (MAIN RIGHT/MONO: TS)
■1/4"" Input Impedance: >10KΩ
■XLR Input Impedance: 2KΩ
■Maximum Input Level: 1/4"" +18 dBu
■External Microphone Maximum Input Level: +2dBu (Balanced)
■Output Connector: 1/4"" Stereo
■Output Impedance: 47Ω
■Maximum Output Level: +15dBu unloaded, 100mW/channel @ 30-100Ω load
■Frequency Response: 10-60,000Hz ±1dB
■Maximum Gain for External Microphone: +58dB
■THD: <0.02% @ 20-20kHz, <0.005% @ 1kHz
■Phantom Power: +48Volts DC, filtered, current-limited
■Power Supply: Dedicated adapter included (9VAC @ 1000mA)
■Dimensions: 44.5 x 150 x 165mm
■Weight: 1.32 kg
