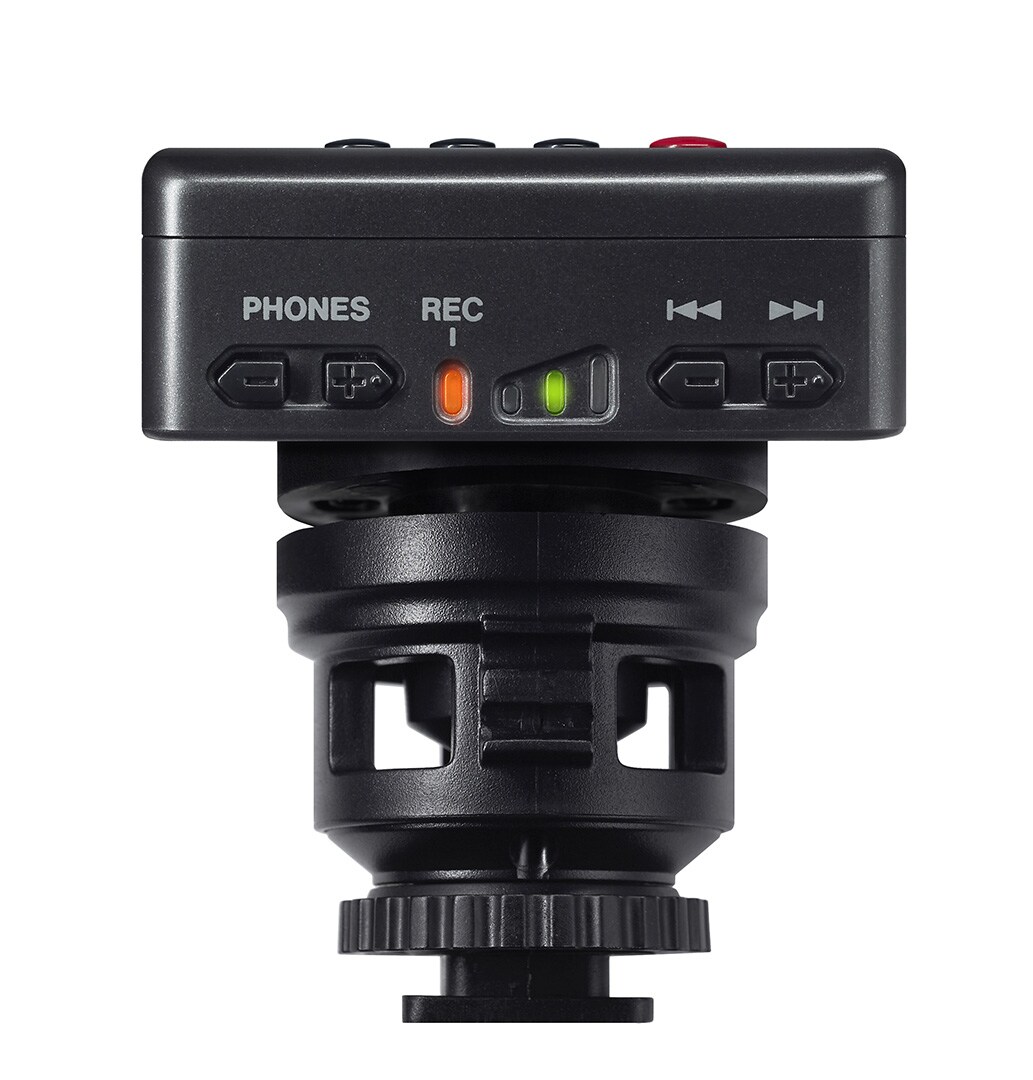

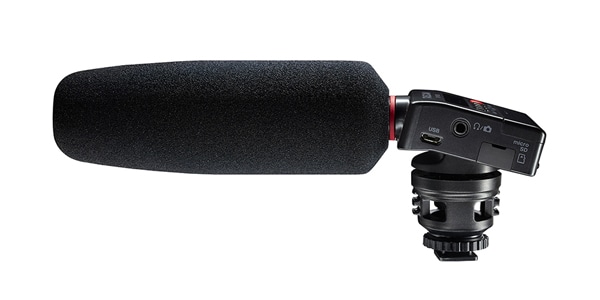

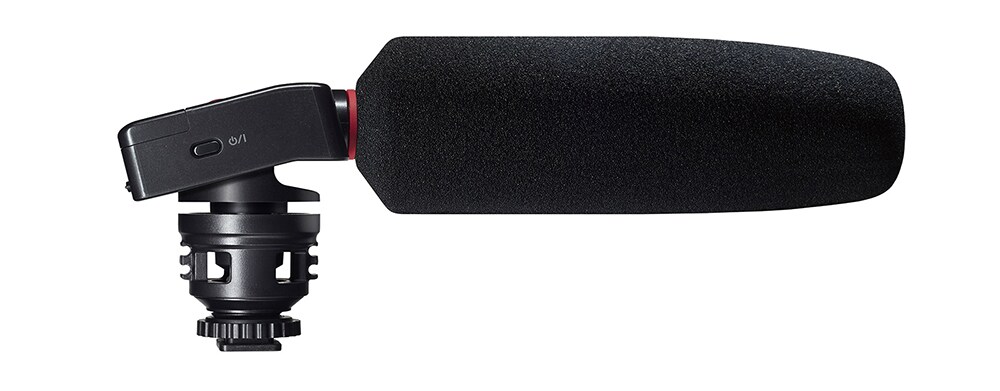

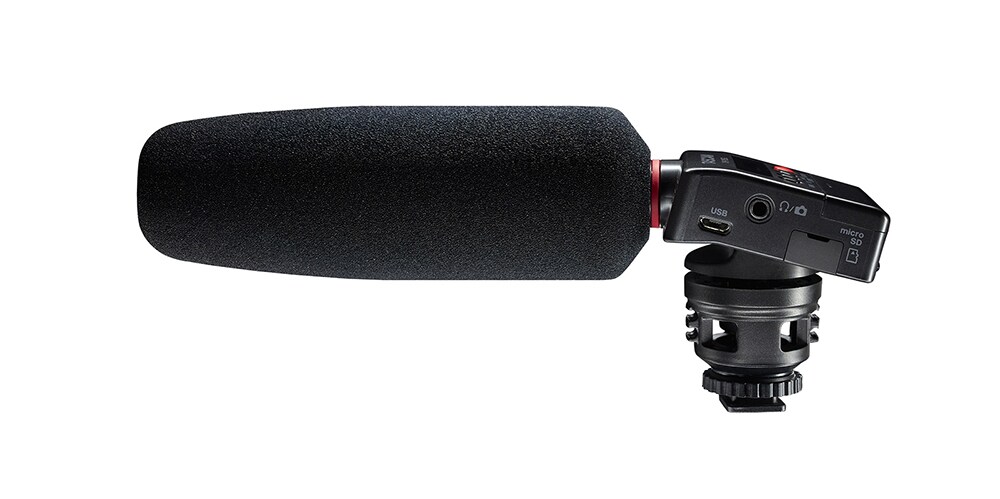

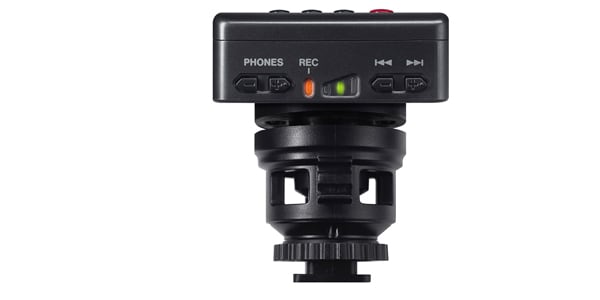

TASCAM / DR-10SG

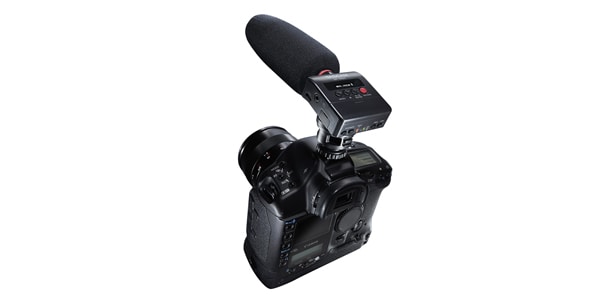

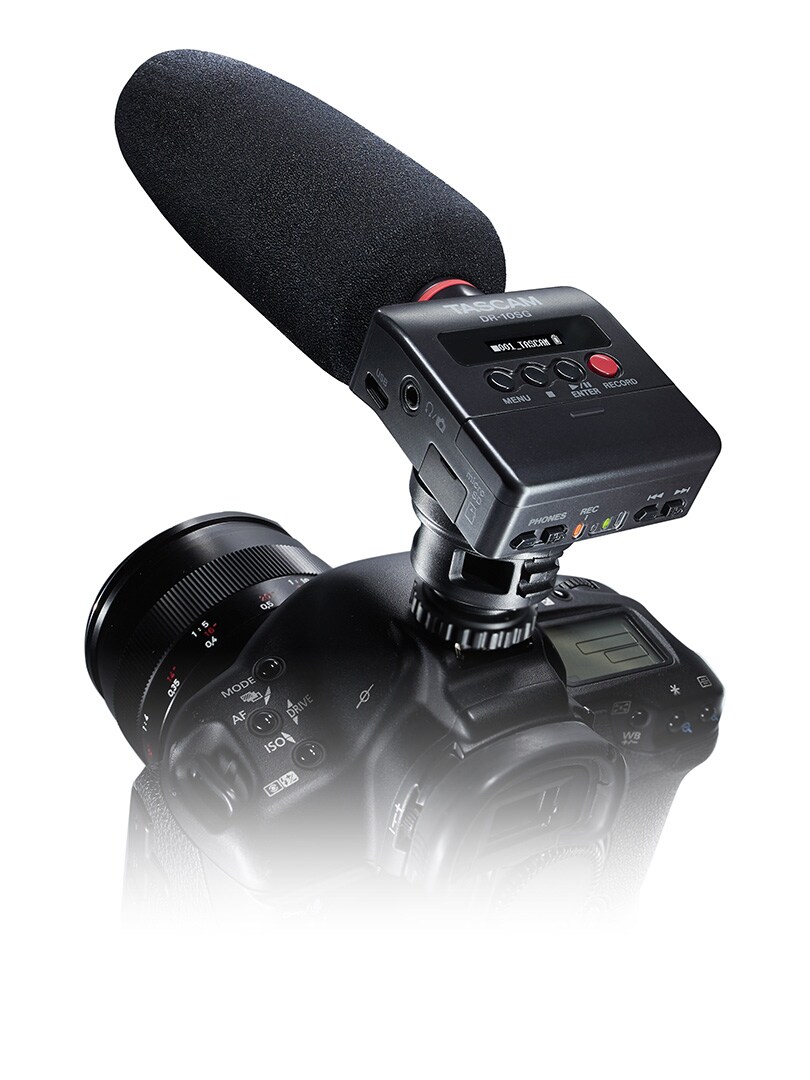

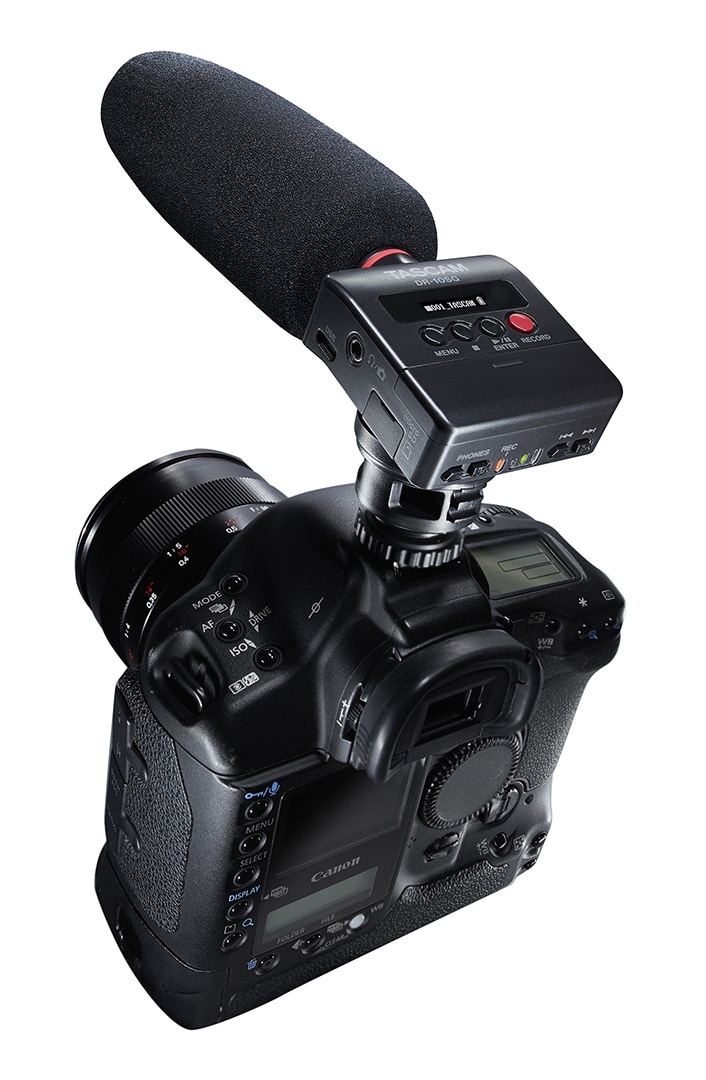

The TASCAM DR-10SG is a linear PCM recorder for cameras with an integrated shotgun microphone. When used with a DSLR (digital single-lens reflex) camera, it enhances the audio quality of your videos. Its lightweight and compact design makes it easy to set up. Another attractive feature is the easy setup, with four EQ presets that can be used to suit different situations.

■Linear PCM Recorder
■Integrated Shotgun Microphone

・Recording Media: microSD Card (64MB-2GB), microSDHC Card (4GB-32GB)
・Recording/Playback Format: 44.1/48kHz, 16/24-bit
・Polar Pattern: Supercardioid
・Microphone Gain: 0 to +50dB (1dB steps)
・Connector: 3.5mm (1/8"") Stereo Mini Jack (Audio Output: Dual Mono)
・USB: Micro-B Type 4-Pin
・Format: USB 2.0 High Speed Mass Storage Class
・Power Supply: One AAA battery (alkaline, nickel-metal hydride, or lithium battery), USB bus power from computer
・Power Consumption: 0.75W (maximum)
・Battery Life: WAV 24-bit/48kHz recording, headphones not connected, Limiter: Off, Dual Recording: Off, File Type: Mono

Product Specifications
■ Power Source: One AAA battery (alkaline, nickel-metal hydride, or lithium battery),
USB bus power from computer
■ Power Consumption: 0.75W (Maximum)
■ Battery Life: WAV 24-bit/48kHz recording, headphones not connected, Limiter: Off, Dual Recording: Off, File Type: Mono
*Battery life may vary from the stated value depending on the recording media used.
Alkaline battery (EVOLTA): Approximately 8.5 hours
Nickel-metal hydride battery (eneloop): Approximately 7.5 hours
Lithium battery (Energizer ULTIMATE LITHIUM): Approximately 15 hours
■ Dimensions: 53 (W) x 168.1 (H) x 70.3 (D) mm (excluding protrusions)
■ Weight: 110g (including battery), 98g (Batteries not included)
■ Operating temperature: 0°C to 40°C
■ Accessories: Windscreen, noise isolation arm, attenuation cable, cable clip, instruction manual (with warranty)
