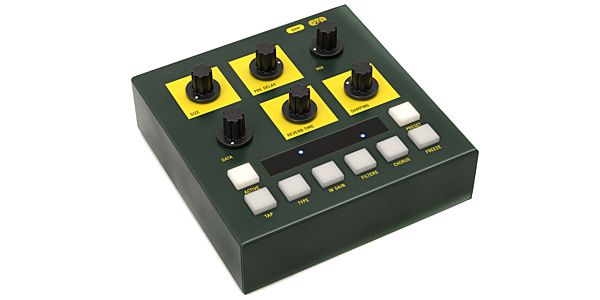

OTO MACHINES / BAM

OTO MACHINES/BAM is a very unique, studio-quality desktop reverb that recreates classic reverb units such as the EMT250 and Lexicon 224, which were famous early studio reverbs.

■Reverb

OTO MACHINES BIM is a distinctive, studio-quality desktop reverb that recreates the classic reverb units of the early studios, such as the EMT250 and Lexicon 224.

■OVERVIEW

BAM is a unique reverb effect processor that recreates the thick, bold, and colorful sound of digital reverb units from the late 1970s and early 1980s (such as the EMT250 and Lexicon 224). While many sound engineers, producers, and musicians are rediscovering the warm, musical, and fat sound of those early-era equipment in modern recording, OTO MACHINES has rediscovered the technology of that time and recreated these legendary reverb units as a musician-friendly, professional desktop device.

The technology used in BAM is nearly identical to that used in early digital reverb units. OTO MACHINES BAM's distinctive vintage digital reverb sound is created by combining hardware elements such as 16-bit converters, 20-bit fixed-point processing, analog filtering technology, and input transformers with seven carefully selected reverb algorithms.
BAM's hardware-based sound quality and texture, which plug-ins and software can never replicate, are sure to be of great use in your music production environment and performance. Of course, its performance can also be used as pro audio hardware for studio recording. While many vintage digital reverbs have lost their modern audio quality, BAM reliably reproduces the sound and texture of the time on your desktop.

It also offers added functionality for modern music production, such as MIDI control and 36 user presets.

FEATURES
- 7 algorithms: Room, Hall, Plate, Ambient, Nonlinear, Primitive
- Input gain (+15dB) allows for intentional addition of analog harmonics
- 500ms pre-delay (knob control), 1500ms with tap control
- Continuously variable reverb size parameter
- Low-cut filter: 20 Hz, 80 Hz, 150 Hz, 250 Hz, 450 Hz
- High-cut filter: 1.8 kHz, 4.5 kHz, 7 kHz, 9 kHz, 15 kHz
- Chorus function (applies modulation to the reverb signal)
- Tap tempo function (assignable to pre-delay or reverb time)
- Freeze function
- 36 user presets
- MIDI input: CC/Pgm Change compatible
- 3 bypass modes: Relay, Spillover, Aux
Simple, easy-to-understand interface with 16 LEDs
Rugged steel enclosure
Includes dedicated power supply (adapter)
