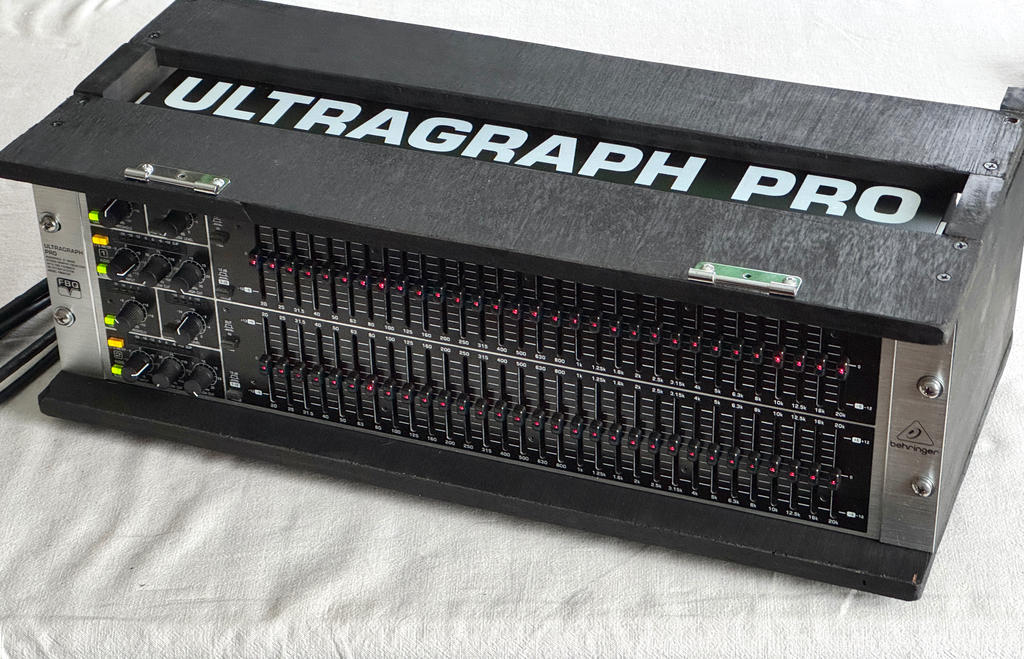

BEHRINGER / FBQ6200HD

This multi-function model features a high-precision 31-band stereo graphic equalizer with a feedback detection system, limiter, pink noise generator, and a mono subwoofer output with adjustable crossover frequency.

[31-band stereo]
[45mm fader]
[Mono subwoofer output]
[Variable frequency low cut, high cut]
[FBQ feedback detection]
[Range switch]
[Switchable input/output level indicator]
[Limiter with gain reduction meter]
[Pink noise generator]

■Type: Stereo graphic equalizer
■Frequency range: 31 bands
■Frequency response: 10Hz - 30kHz
■THD + Noise: 0.008%
■Power consumption: 35W

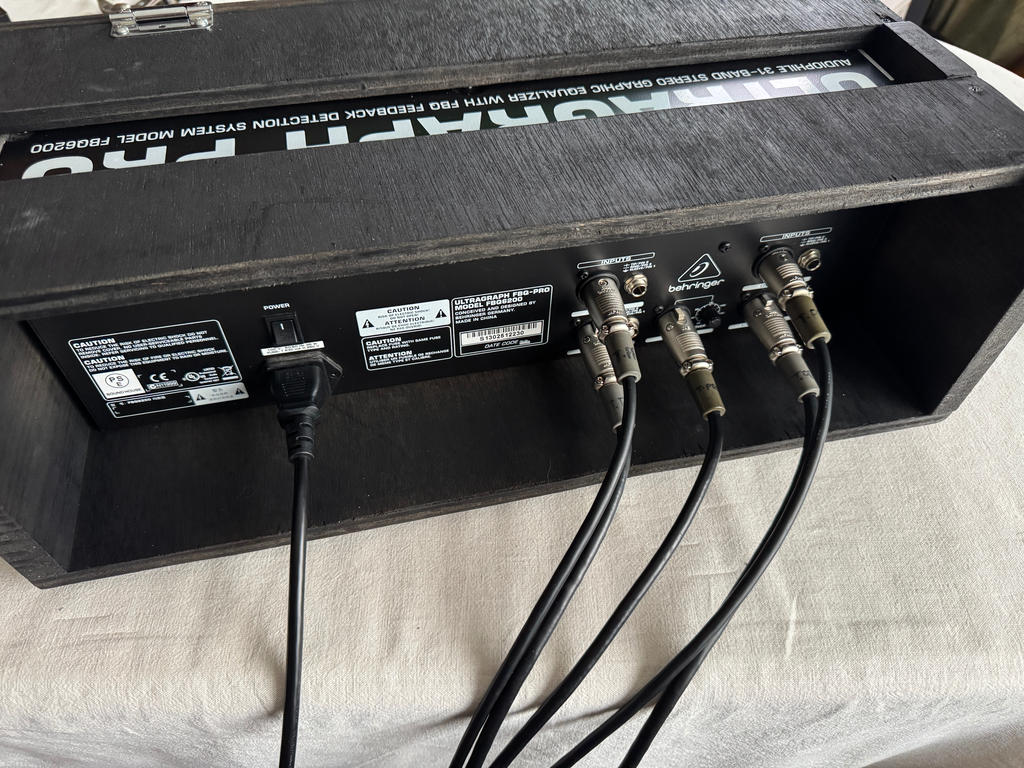

■Input terminals: XLR x 2, TRS phone x 2
■Output terminals: XLR x 2, TRS phone x 2, XLR for mono subwoofer x 1
■Dimensions: 48.3W x 13.3H x 13.8D cm
■Weight: 2.3 kg
■S/N Ratio: 94 dB
■Range Switch: ±6 dB or ±12 dB
■FBQ Detection System instantly identifies problem frequencies and can also be used as an audio analyzer
■Limiters with gain reduction meters on each channel protect the system from signal overload
■Built-in pink noise generator for optimal room correction and speaker equalization
■Mono subwoofer output with adjustable crossover control between 30 and 200 Hz
■High- and low-cut filters on each channel (High: 2.5 kHz to 30 kHz, Low: 10 to 400 Hz)
■Highly accurate 8-digit LED output meter and input gain control for precise level setting
■Relay-controlled hard bypass with auto-bypass function ensures trouble-free audio operation, even during power outages
■High-quality illuminated faders, ALPS pots, and comprehensive illuminated switches
■Universal power supply
