CELESTION / T5967

Variations

This is a replacement 18-inch woofer unit that features a ferrite magnet and a cast chassis, boasting an input capacity of 1200W.

■Diameter: 18""
■Impedance: 4Ω
■Power Rating: 2400W

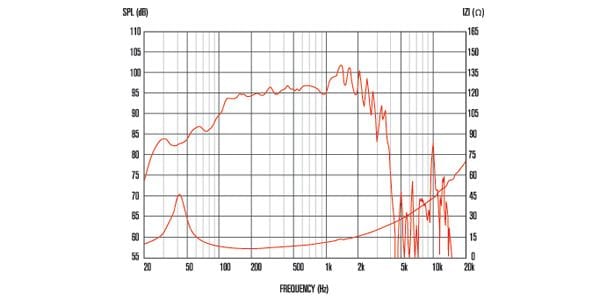

■Frequency Range: 30-2500Hz
■Sensitivity (1W/1m): 98dB
■Magnet: Ferrite
■Dimensions: 460mm x 460mm x 220.35mm
■Weight: 11.6kg
■Other:
■Voice Coil: 4""
■Chassis: Cast Aluminum
■Magnet Weight: 3.18kg
■Voice Coil: Round Copper
■Former: Glass Fiber
■Cone: Kevlar-loaded Paper
■Surround: Cloth-sealed
■Suspension: Double
■Baffle Diameter: 414mm
■Threaded Hole Size: 11mm x 7mm
■Number of Screw Holes: 8
■Mounting Hole Diameter: 441-432mm Mounting PCD range

■LF Cast Chassis / Ferrite
This series uses a cast aluminum chassis and a ferrite magnet. Available in sizes ranging from a lightweight 6"" midrange speaker to an 18"" subwoofer-optimized speaker, this series is recommended for a wide range of applications, including sound reinforcement speakers, subwoofers, and multi-way systems. The lineup includes the FTR series, which offers high power output, low distortion, and linear acoustic characteristics, and the latest CF series, which delivers even lower distortion and higher power.

■CELESTION
Established in 1924 as a brand specializing in the manufacture of speakers for guitar amplifiers, the company has established an unshakable reputation while supporting the virtuoso performances of guitarists such as Jimi Hendrix and Slash. Classic speakers such as the VINTAGE30 and CELESTION BLUE are installed in guitar amplifiers from renowned manufacturers such as MARSHALL, VOX, and BOGNER. The company also manufactures various drivers and PA woofers. It's used in concerts around the world.

*Usually, woofer units can be replaced with models of similar size, impedance, and power handling capacity. However, when actually paired with a speaker, there's a chance that the screw holes or baffle size may not line up perfectly, requiring modification. We do not check or guarantee the installation of woofer units. Thank you for your understanding.

*When providing repairs or support, we generally do not provide loaner units. In the event of a malfunction, please return the unit to us, and we or the manufacturer will handle the issue in accordance with our support regulations.
