BOSE / ZA2120HZ

This 120W x 2 high-impedance power amplifier allows for easy system expansion in combination with the IZA series of power amplifiers, which maximize the performance of Bose speakers. Featuring high-quality digital amplifiers in a 1U space, it is recommended for mid-sized systems.

~From the manufacturer's website~
The FreeSpace ZA2120-HZ is a compact power amplifier that can be easily combined with the IZA series for system expansion. It can also be used as a simple standalone amplifier by connecting it to the line output of a mixer/processing device such as the ControlSpace series or the DXA2120. It provides a simple and optimal sound system, even when expanding to larger spaces or adding speakers.

■High-quality, high-power design
A reliable digital amplifier is housed in a compact 1U body. It provides 120W (@70V/100V) x 2-channel amplifier output, making it ideal for small to medium-sized spaces.

■Simple installation

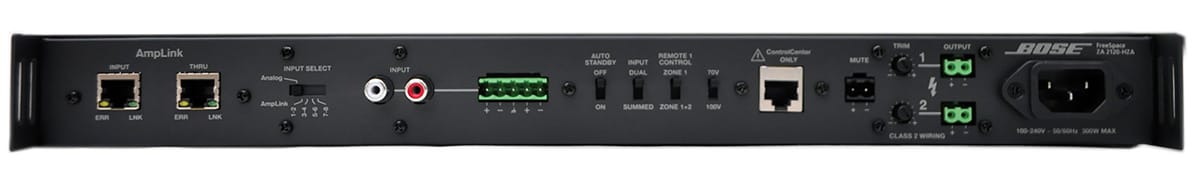

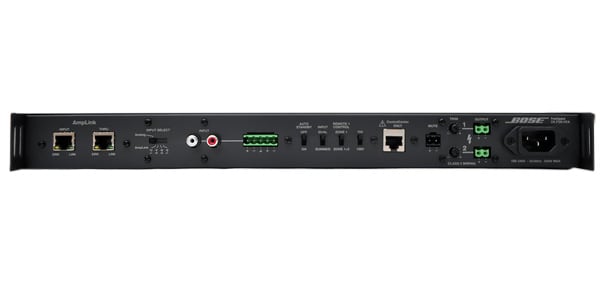

The built-in DSP function can be easily adjusted to suit most commercial installations with just a few settings on the rear panel. No computer or software setup is required.

■Auto-standby function
The auto-standby function is effective in saving power. When enabled, the unit automatically enters standby mode after 20 minutes of no signal input.

■ Low-impedance models also available

High-impedance models (ZA2120-HZ, 2ch x 120W@4Ω) are also available. Flexible selection is possible to suit various system plans.

■ Remote control options

DXA VC (volume controller) is supported as standard, allowing operation from a distance. This provides an attractive and convenient remote control environment.

Amplifier Power: 2 x 120W @ 4Ω, 2 x 60W @ 8Ω
Frequency Response: 20Hz - 20kHz (+0/-3dB @ 1W referenced at 1kHz)
THD+N: ±0.5% (at rated output)
Channel Separation (Crosstalk): ±-58dBu (below rated output, 1kHz)
Dynamic Range: 88dB
Power Supply Voltage: 100-240VAC (±10%, 50/60Hz)
Power Consumption: 21W (standby), 300W (maximum)
Maximum Inrush Current: 12.6A (230VAC/50Hz), 7.8A (120VAC/60Hz)
Overload Protection: High temperature, output short, excessively low or high power supply voltage
Dimensions Dimensions: 44mm (H) x 483mm (W) x 324mm (D) (1.7"" x 19.0"" x 12.8"")
Packaged Weight: Approximately 5.2kg (11.5lb)
Net Weight: Approximately 3.9kg (8.5lb)
Cooling System: Single fan, continuous airflow from left to right
