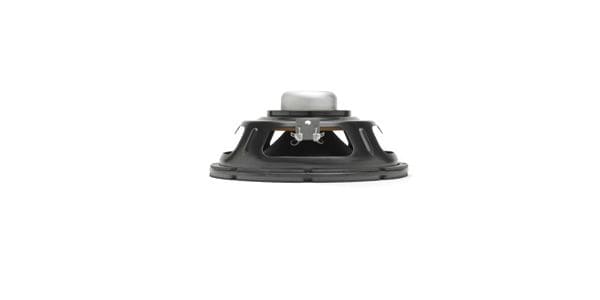

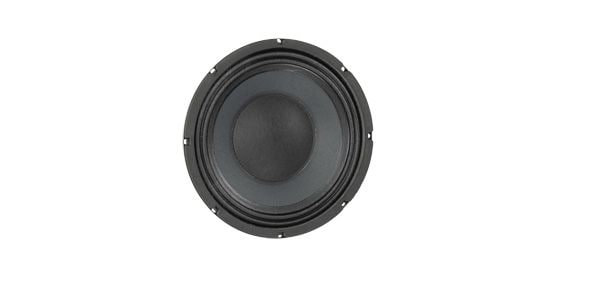

EMINENCE / BASSLITESC10-16

This 10-inch woofer for bass amplifiers is from the popular Basslite series, known for its high performance and light weight. It uses a neodymium magnet and is optimized for closed cabinets, and is also recommended for 4 x 10-inch and 8 x 10-inch cabinets.

■ Diameter: 10""
■ Impedance: 16 Ω
■ Power handling: 300 W

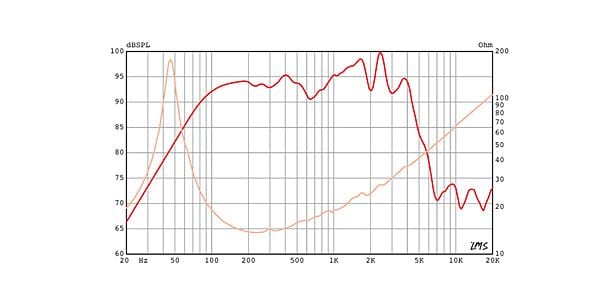

■ Frequency range: 50 Hz - 4.2 kHz
■ Sensitivity: 94.3 dB
■ Magnet: Neodymium
■ Dimensions: 256 mm x 256 mm x 108 mm
■ Weight: 1.59 kg
■Other:
■Magnet Weight: 0.11 kg
■Voice Coil Diameter: 2 inches
■Baffle Diameter: 233.2 mm
■Mounting Screw Hole Diameter: 6.4 mm
■Mounting Screw Hole Spacing: 245.4 mm (Mounting Holes B.C.D.)
■Voice Coil Material: Copper voice coil
■Former: Polyimide former
■Basket: Pressed steel basket
■Cone: Curved paper cone
■Edge: Cloth cone edge
■Dust cap: Solid composition felt dust cap

■Bass Guitar
Eminence's custom-designed bass speaker units deliver the tight, fat, and warm sound that bass players demand, and are featured in bass amplifiers from all major brands.

■EMINENCE
Founded in Kentucky, USA, in 1966, Eminence continues to operate its own factory in the same location, producing high-quality guitar and PA speaker units that impress professionals worldwide. Popular models include the best-selling “Tonker” and “Legend,” as well as the signature model “EJ1250,” named after tone-obsessed guitarist Eric Johnson.

*Regarding speaker units, if models have similar sizes, impedances, and power handling capabilities, they may be interchangeable. However, when actually installing the speakers, there may be slight discrepancies in screw holes or baffle sizes, which may require modification. We do not offer installation verification or installation guarantees for woofer units. Please note this in advance.
