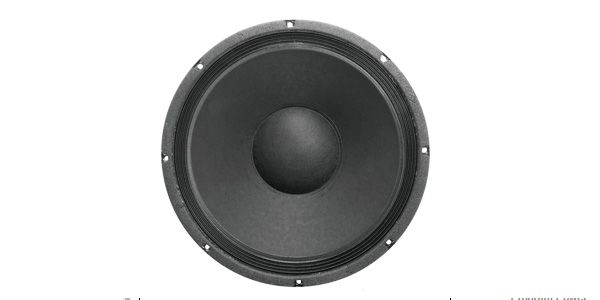

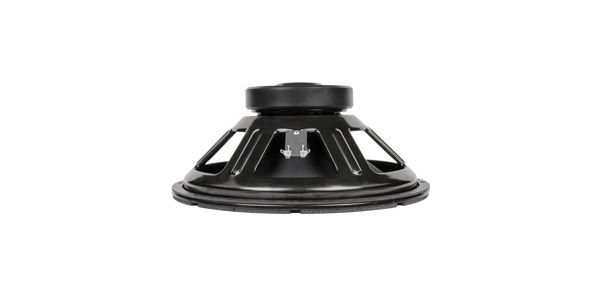

EMINENCE / LEGEND BP1525

This new 15-inch woofer for bass amplifiers is a sibling model of the popular LEGEND series model BP102. It features a warm and rich tone and boasts an input power rating of 700W, making it recommended for use in small sealed enclosures for home use as well as for professional audio and hi-fi applications.

■ Diameter: 15""
■ Impedance: 8 Ω
■ Power handling: 700 W (PGM)

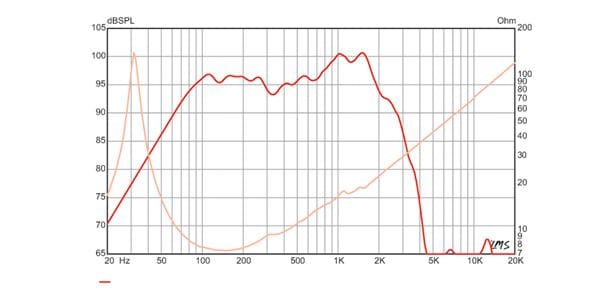

■ Frequency range: 35 Hz - 2.1 kHz
■ Sensitivity: 96.6 dB
■ Magnet: Ferrite
■ Dimensions: 384.8 mm x 384.8 mm x 168 mm
■ Weight: 5.44 kg
■Other:
■Magnet Weight: 1.58 kg
■Voice Coil: 2.5 inches
■Voice Coil: Copper voice coil
■Coil Former: Polyimide former
■Basket: Pressed Steel basket
■Cone: Paper cone
■Edge: Cloth cone edge
■Dust Cap: Solid composition paper dust cap
■Baffle Diameter: 353.1 mm
■Screw hole size: 6.4 mm
■Diameter between screw holes: 369.8 mm Mounting Holes B.C.D.

■Bass Guitar
Eminence's custom-designed bass speaker units deliver the tight, fat, and warm sound that bass players demand, and are featured in bass amplifiers from all major brands.

■EMINENCE
Founded in Kentucky, USA, in 1966. The company still operates its own factory in the same location, producing high-quality guitar and PA speaker units that impress professionals. Popular models include the best-selling “Tonker” and “Legend,” as well as the signature model “EJ1250,” named after tone-obsessed guitarist Eric Johnson.

*Regarding speaker units, if models have similar sizes, impedance, and power handling, replacement is generally possible. However, when actually installing the speaker, there may be slight discrepancies in screw holes or baffle sizes, requiring additional modification. We do not provide installation verification or installation warranty for woofer units. Please note this in advance.
