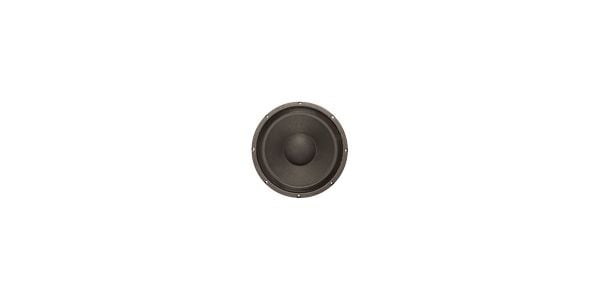

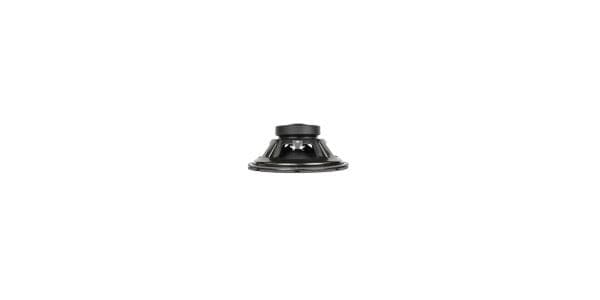

EMINENCE / LEGEND BP122

This new 12-inch woofer for bass amplifiers is a sibling model of the popular LEGEND series model BP102. It features a warm and rich tone and boasts a power handling capacity of 500W, making it recommended for small sealed enclosures for home use as well as for professional audio and hi-fi applications.

■ Diameter: 12""
■ Impedance: 8 Ω
■ Power handling: 500 W (PGM)

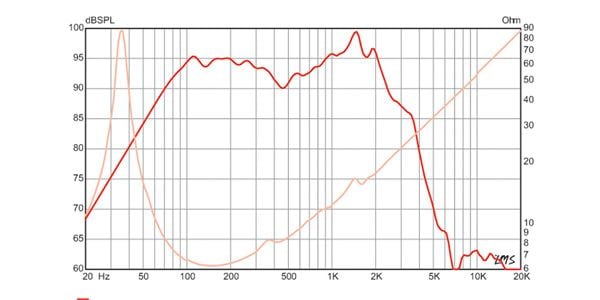

■ Frequency range: 35 Hz - 2.3 kHz
■ Sensitivity: 94.1 dB
■ Magnet: Ferrite
■ Dimensions: 311.4 mm x 311.4 mm x 135.3 mm
■ Weight: 4.08 kg
■Other:
■Magnet Weight: 1.07 kg
■Voice Coil: 2.5 inches
■Voice Coil: Copper Voice Coil
■Coil Former: Polyimide Former
■Basket: Pressed Steel Basket
■Cone: Paper Cone
■Edge: Cloth Cone Edge
■Dust Cap: Solid Composition Felt Dust Cap
■Baffle Diameter: 281.4 mm
■Screw hole size: 6.4 mm
■Screw hole diameter: 297.4 mm Mounting Holes B.C.D.

■Bass Guitar
Eminence's custom-designed bass speaker units deliver the tight, fat, and warm sound that bass players demand, and are featured in bass amplifiers from all major brands.

■EMINENCE
Founded in Kentucky, USA, in 1966. The company still operates its own factory in the same location, producing high-quality guitar and PA speaker units that impress professionals. Popular models include the hit “Tonker” and “Legend,” as well as the signature model “EJ1250” named after tone-obsessed guitarist Eric Johnson.

*Regarding speaker units, if models have similar sizes, impedances, and maximum input ratings, they may be interchangeable. However, when actually installing the speakers, there may be slight discrepancies in screw holes or baffle sizes, which may require modification. We do not offer installation verification or installation guarantees for woofer units. Please note this in advance.
