TASCAM / DA-6400

Variations

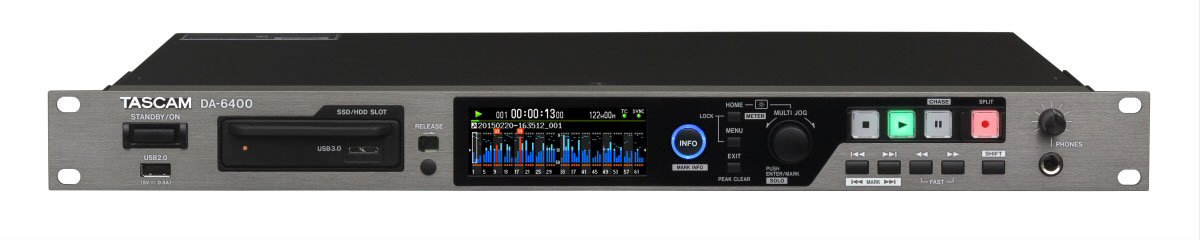

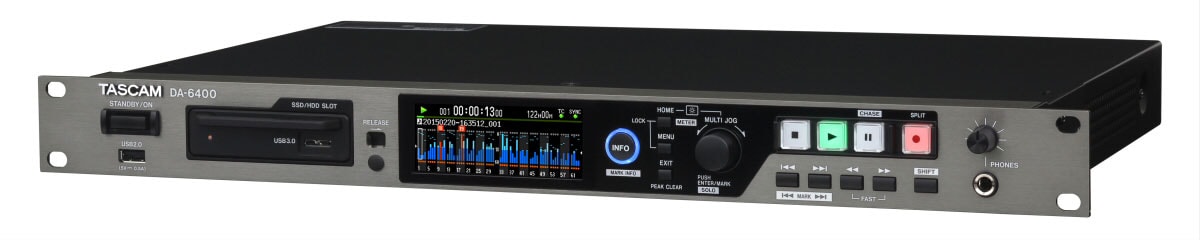

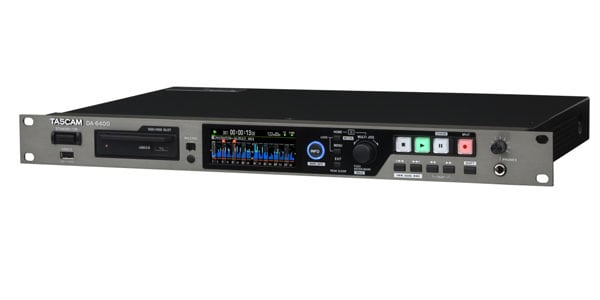

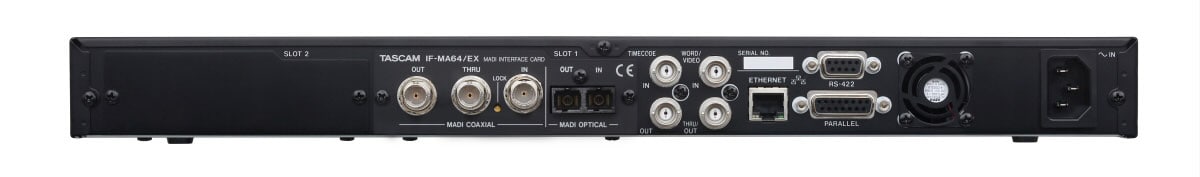

64-channel digital multi-track recorder / player in a 1U rack mount size. Supports flexible connections such as AES / EBU input / output and analog output in addition to MADI and Dante. Stable and reliable recording / playback. Can be used not only for backup purposes but also for existing multi-playback purposes, and offers ease of use for various systems.

≪Specifications≫
・ Number of channels: 64 channels (1xFs), 32 channels (2xFs)
・ Sampling frequency: 44.1k / 48k / 88.2k / 96k Hz
・ Quantization: 16bit / 24bit
・ Clock reference: INTERNAL, WORD IN, VIDEO IN, SLOT1 IN, SLOT2 IN
・ Time code frame: 23.976F, 24F, 25F, 29.97DF, 29.97NDF, 30DF, 30NDF

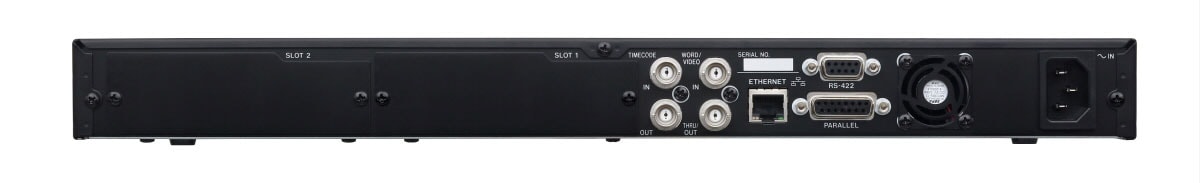

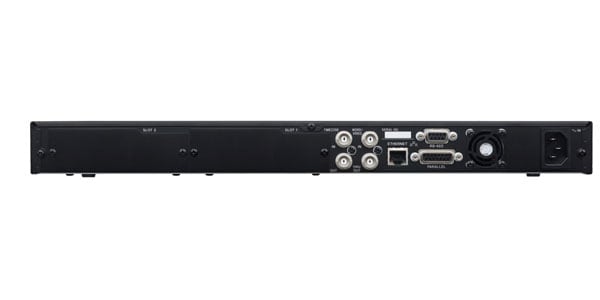

・ TIME CODE IN / OUT: BNC connector
・ WORD / VIDEO IN / OUT / THRU: BNC connector
・ ETHERNET: RJ-45
・ RS-422: D-sub 9 pin (female inch standard)
・ PARALLEL: D-sub 15 pin (female inch standard)
・ Headphone output: 6.3 mm (1/4") stereo standard jack
・ Size: 482.6 (width) x 44.7 (height) x 304.8 (depth) mm
・ Weight: 3.9 kg * SD (TSSD-240A) and SSD case (AK-CC25) not included
・ Accessories: TASCAM SSD, SSD media case, power cable x 1 (DA-6400), power cable x 2 (DA-6400dp), USB cable, rack mount screw kit, security screw kit, instruction manual (with warranty)
