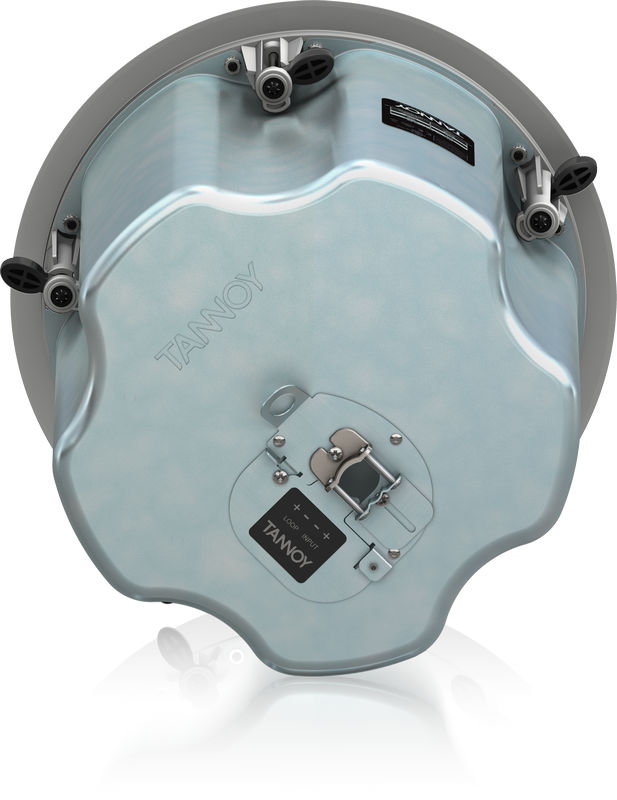

TANNOY / CMS 803DC BM

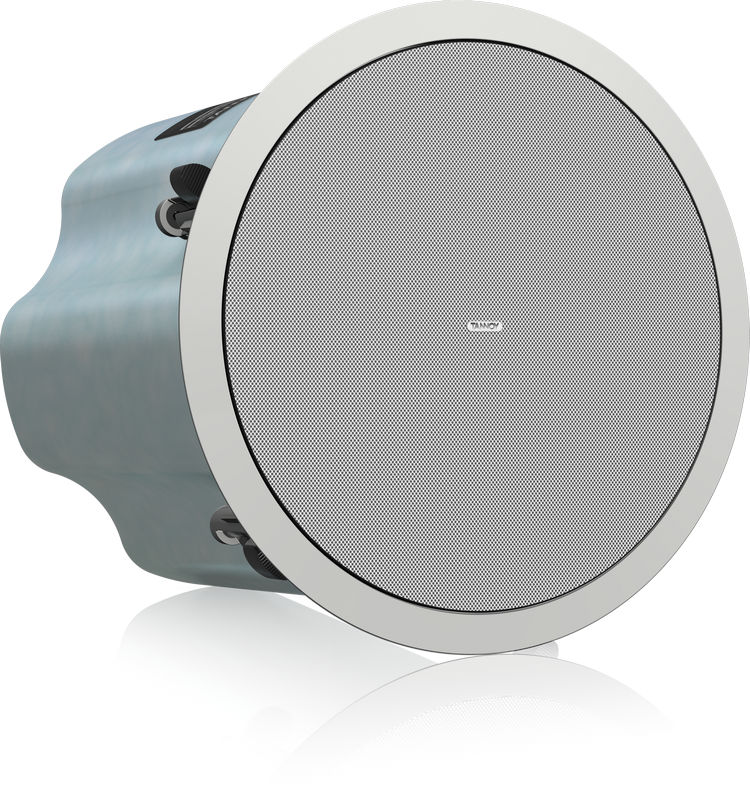

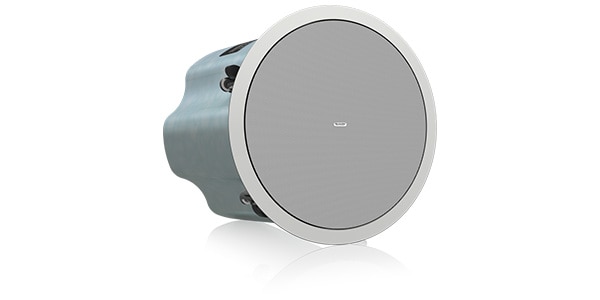

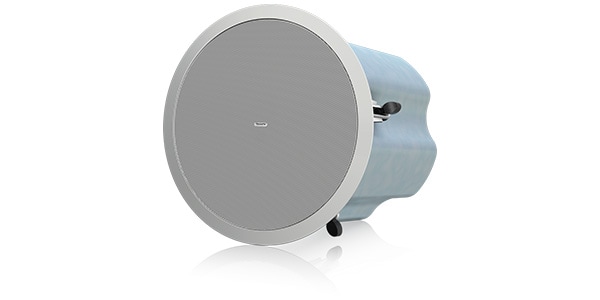

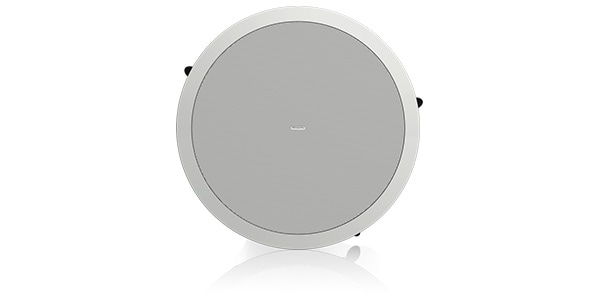

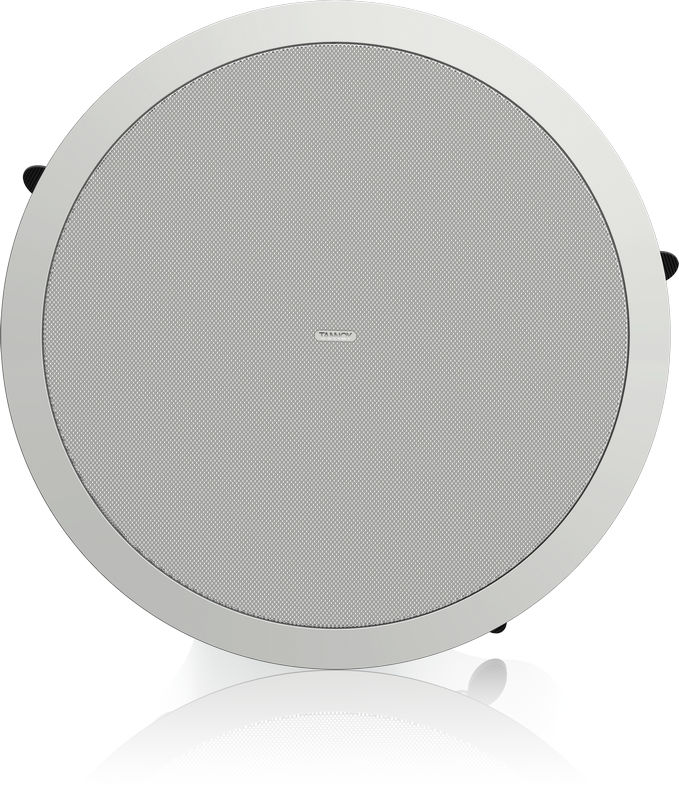

The CMS803DC is a 360W (peak) ceiling loudspeaker featuring an all-new 8-inch Dual Concentric Point Source Driver with Omnimagnet technology mounted on a Torus Ogive Waveguide.

■Flush-Ceiling Coaxial Speaker
■8"" Dual Concentric
■180W, 16Ω
■100V/70V: 60/30/15W
■Pair

■Frequency Response: (-3 dB) 47 Hz - 30 kHz
■Frequency Range: (-10 dB) 40Hz - 35 kHz
■Sensitivity (1 W @ 1 m): 92 dB (1 W = 4 V for 16 Ohms)
■Coverage: 90 degrees conical
■Power Handling:
Average 90 W
Program 180 W
Peak 360 W
■Recommended Amplifier Power: 180 W @ 16 Ohms
■Impedance: (Lo, Z) 16 Ohms
■Output Sensitivity:
Average 112 dB
Peak 118 dB
■Transformer Tap
70 V: 60 W (83 Ω) / 30 W (165 Ω) / 15 W (330 Ω) / 7.5 W (660 Ω) / OFF & low impedance operation
100 V: 60 W (165 Ω) / 30 W (330 Ω) / 15 W (660 Ω) / OFF & low impedance operation
■Transducer

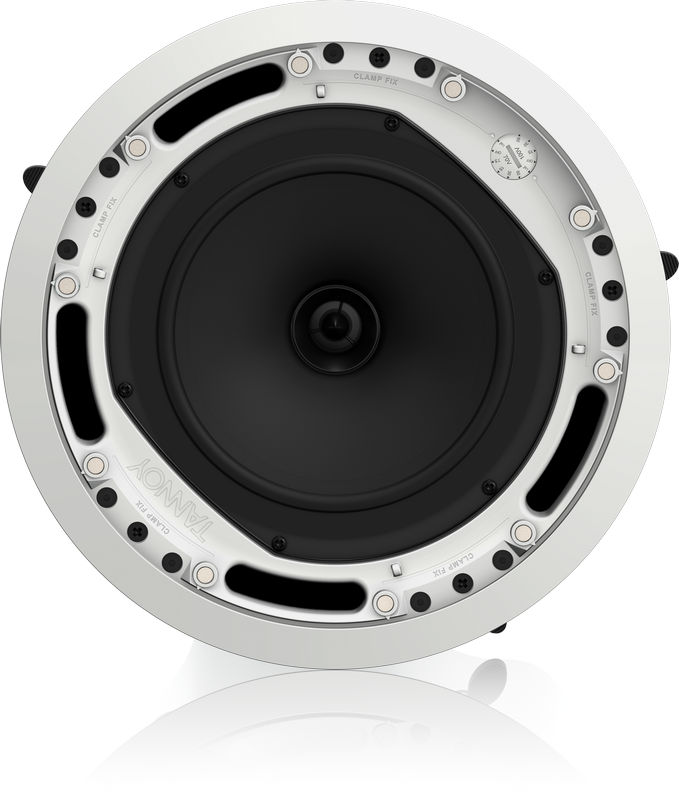

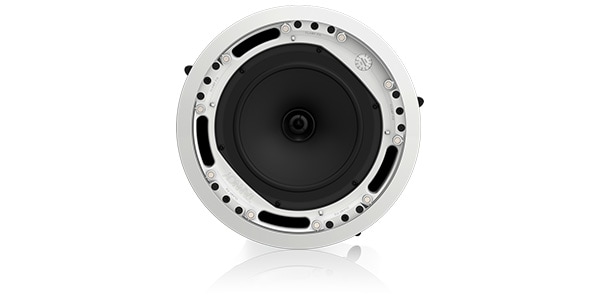

Dual Concentric Point Source Driver: 1 x 200 mm (8.0"") Dual Concentric Driver, using Omnimagnet technology
Low Frequency: 44 mm (1.75"") voice coil, treated multi-fiber paper pulp cone
High Frequency: 25 mm (1.00"") PEI dome
■Dimensions
Bezel diameter 319.0 mm (12.56"")
Front of ceiling to rear of backcan 310.5 mm (12.22"")
Front of ceiling to top of safety loop 327.7 mm (12.90"")
Hole cutout diameter (all models) 295 mm (11.61"")
