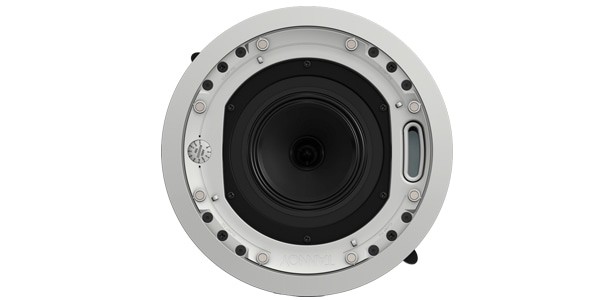

TANNOY / CMS 503DC LP

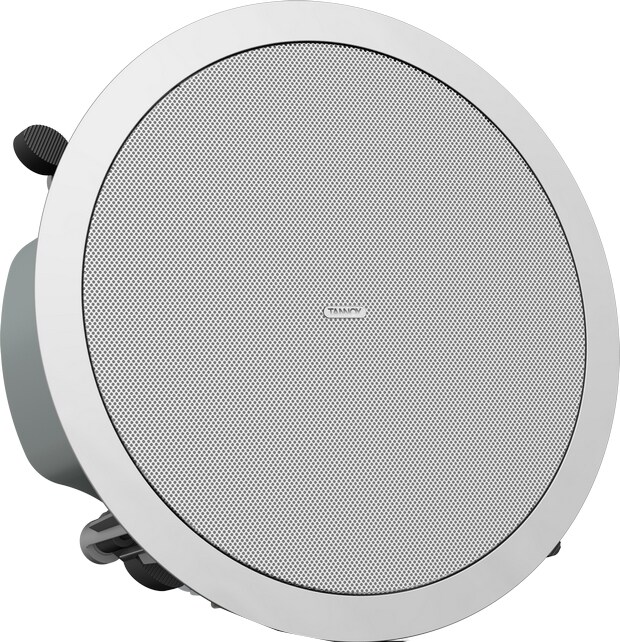

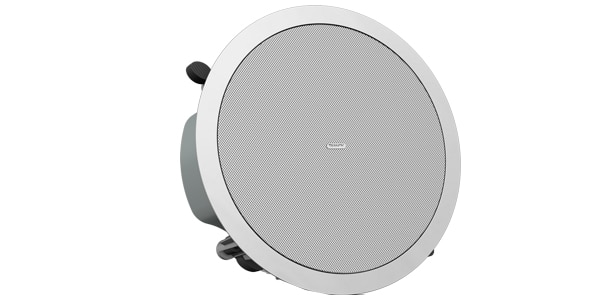

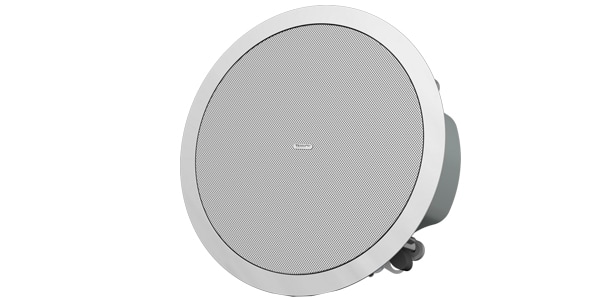

The CMS503DCLP is a 240W (peak) ceiling loudspeaker featuring a completely new 5-inch Dual Concentric Point Source Driver with Omnimagnet technology mounted on a Torus Ogive Waveguide. Its shallow backcan design makes it ideal for narrow ceiling spaces.

■Flush-ceiling coaxial speaker with backcan
■Short depth
■5"" dual concentric
■120W, 16Ω
■100/70V: 30W/15W/7.5W
■Pair

■Frequency Response: (-3 dB) 88 Hz - 22 kHz
■Frequency Range: (-10 dB) 77 Hz - 24 kHz
■Sensitivity (1 W @ 1 m): 89 dB (1 W = 4 V for 16 Ohms)
■Coverage: 90 degrees conical
■Power Handling: Average 60 W
Program: 120 W
Peak: 240 W
■Recommended Amplifier Power: 120 W @ 16 Ohms
■Impedance: (Lo, Z) 16 Ohms
■Output SPL: Average 107 dB Peak 113 dB
■Transformer Tap
70 V 30 W (165 Ω) / 15 W (330 Ω) / 7.5 W (660 Ω) / 3.75 W (1320 Ω) / OFF & low impedance operation

100 V 30 W (330 Ω) / 15 W (660 Ω) / 7.5 W (1320 Ω) / OFF & low impedance operation

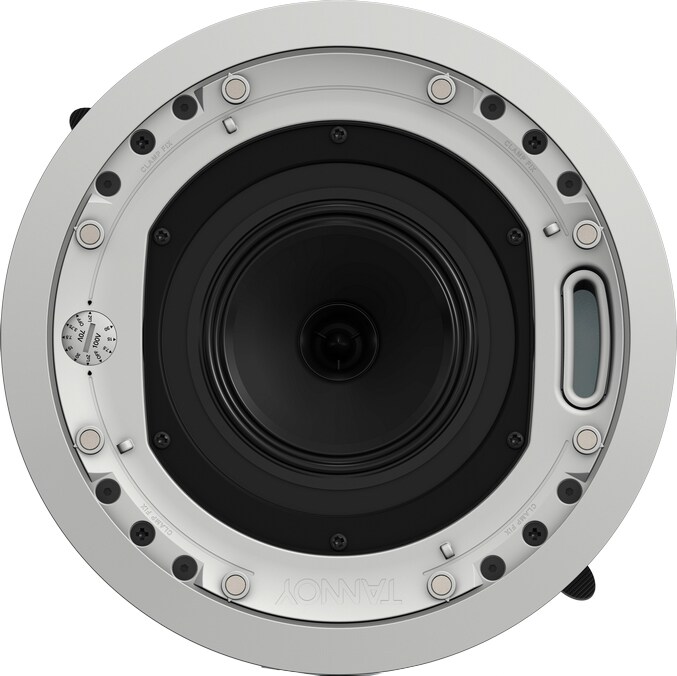

■Transducer
Dual concentric point source driver: 1 x 130 mm (5.0"") Dual Concentric driver, using Omnimagnet technology
Low frequency: 35 mm (1.38"") voice coil, treated multi-fiber paper pulp cone
High frequency: 20 mm (0.79"") PEI dome
■Size

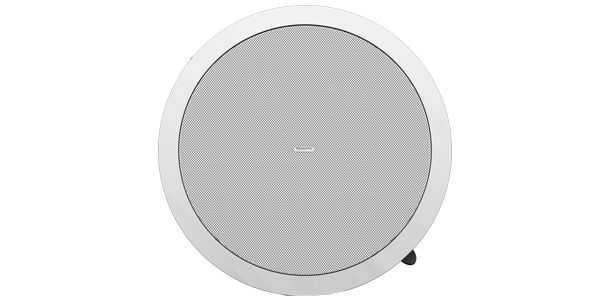

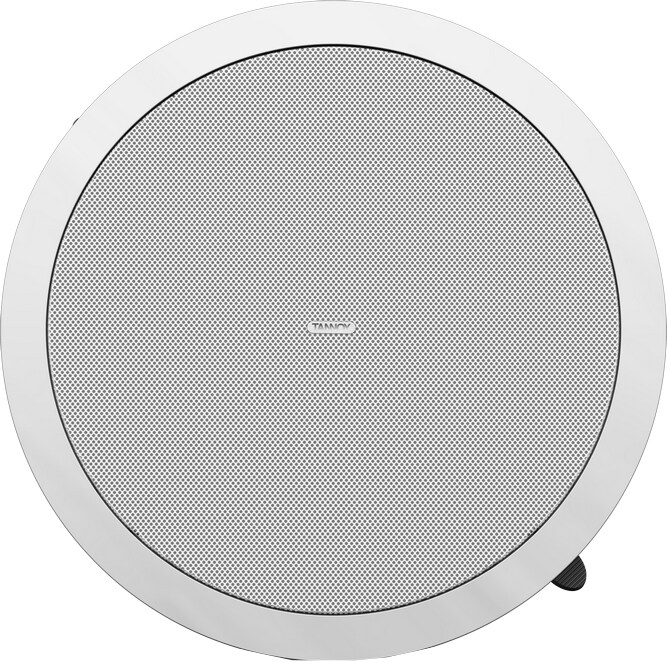

Bezel diameter 274.0 mm (10.79"")

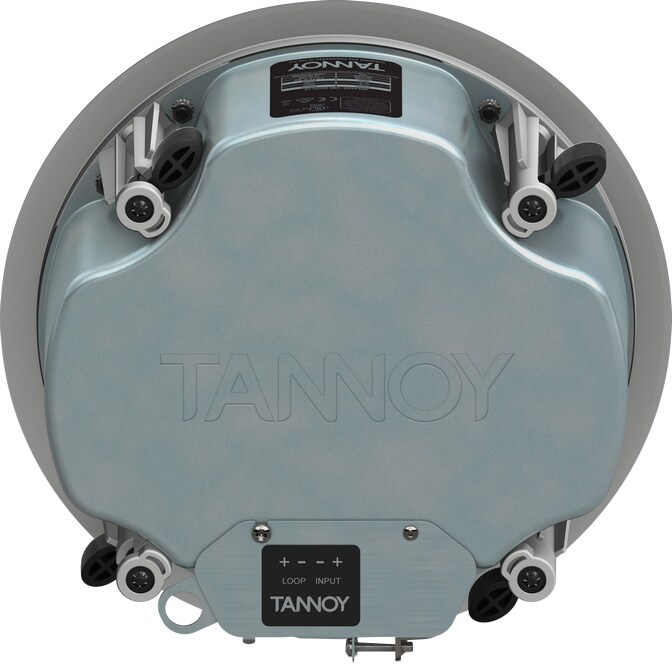

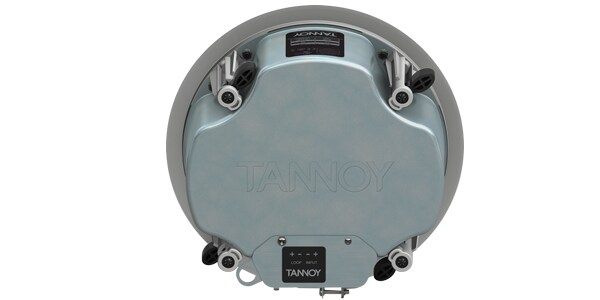

Front of ceiling to rear of backcan 98.6 mm (3.88"")
Hole cutout diameter 253.0 mm (9.96"")
