TANNOY / CMS 403DCE

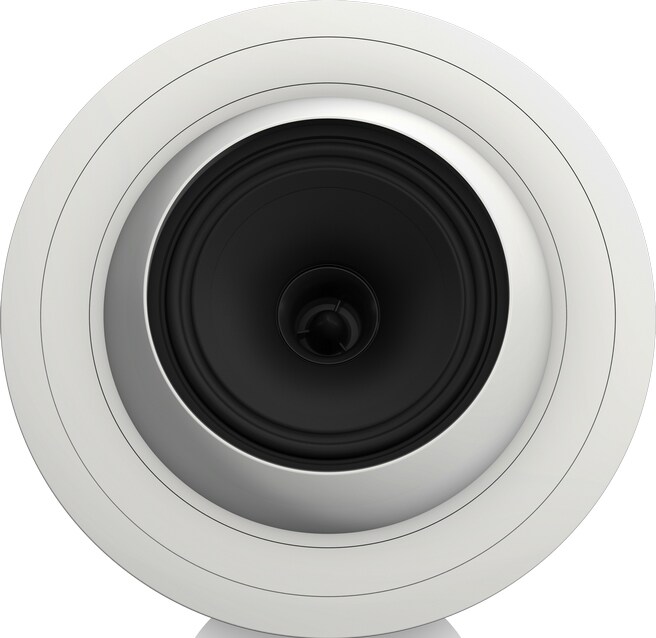

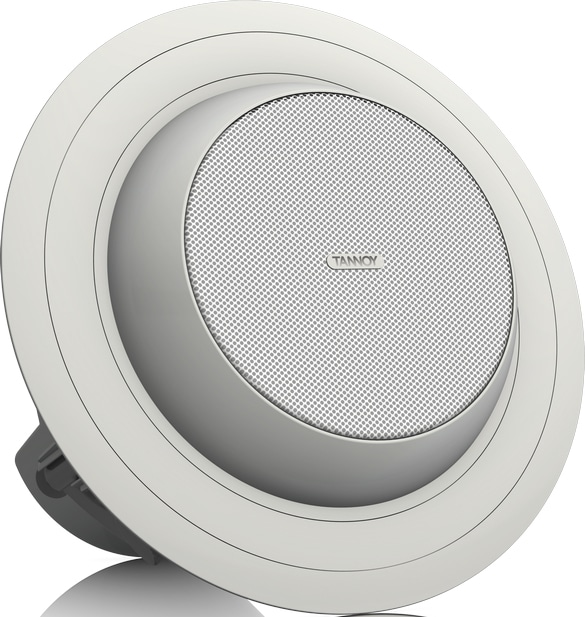

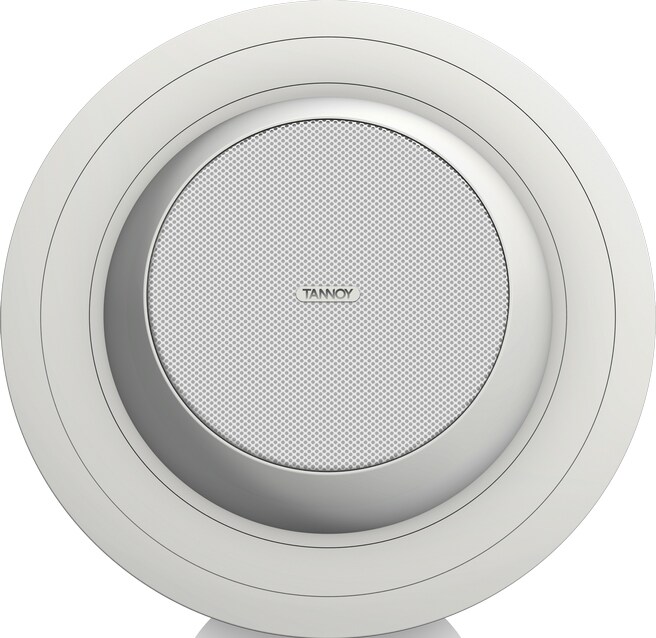

The CMS403DCe is a 160W (peak) ceiling loudspeaker equipped with a 4-inch ICT (Inductive Coupling Technology) point source driver. The angle can be adjusted even after installation on the ceiling.

■Type: Coaxial 2-way ceiling speaker
■Frequency range (-10 dB): 80 Hz to 54 kHz
■Nominal dispersion angle: 90°
■Driver: 4-inch Dual Concentric / Coaxial 2-way (with Omnimagnet technology)
■Input sensitivity (1 W/1 m): 88 dB (1 W = 4 V for 16 Ohms)
■Maximum sound pressure (@1 m): 106 dB (average), 113 dB (peak)
■Recommended power amplifier: 120 W @ 16 Ohms
■Impedance: 16 Ohms
■Impedance transformer taps: 70 V: 30 W / 15 W / 7.5 W / 3.75 W (OFF & low impedance operation)
100 V: 30 W / 15 W / 7.5 W (OFF & low impedance operation)
■Power handling: 60 W (average), 120 W (program), 240 W W (Peak)
■Exterior Color: Standard white (paint option available)

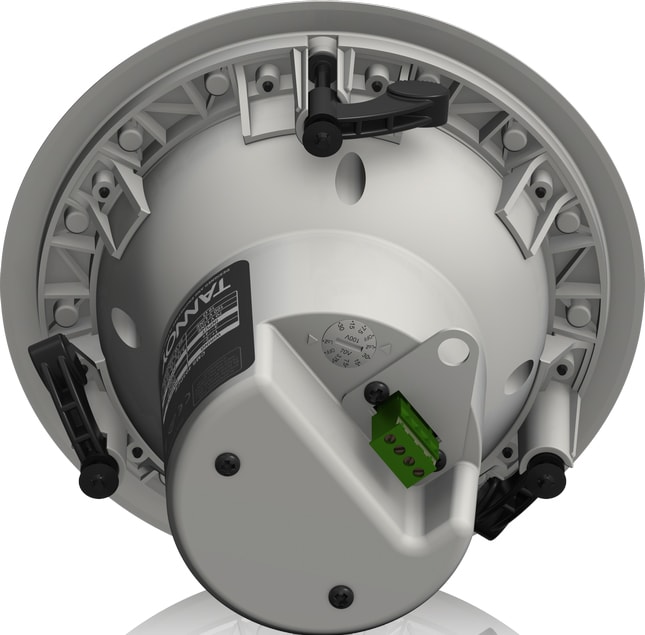

■Connector: 4-pin Euroblock
■Mounting Hole Diameter: 187 mm
■Dimensions: 205 mm (diameter) x 147.6 mm (depth) (ceiling interior dimensions)
■Weight: 2.86 kg
■Accessories: C-ring, tile bridge, paint mask, cutout template, grill
■Options: Plastering
■Pair
