TANNOY / CMS 403ICTE

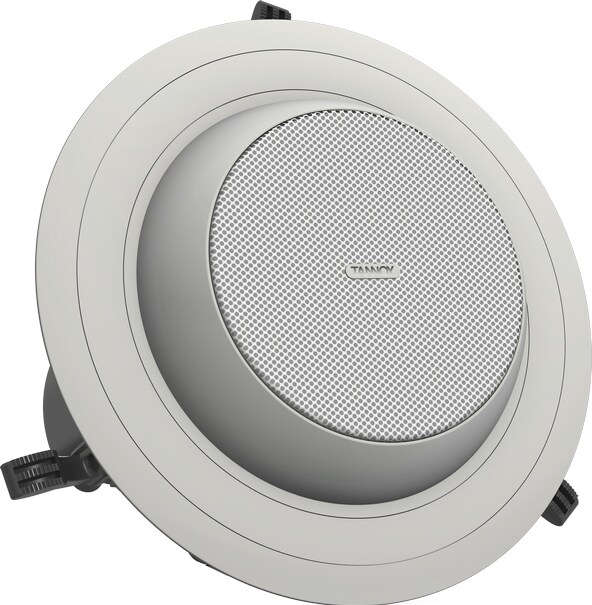

The CMS403ICTe is a 160W (peak) ceiling loudspeaker equipped with a 4-inch ICT (Inductive Coupling Technology) point source driver. The angle can be adjusted even after installation on the ceiling.

■Flush-Ceiling Coaxial Speaker
■4""
■80W, 16Ω
■100V: 30W/15W/7.5W
■Pair

■Frequency Response
(-3 dB) (1) 110 Hz - 22 kHz
(-10 dB) (1) 80 Hz - 24 kHz
■Sensitivity (1 W @ 1 m) 88 dB (1 W = 4 V for 16 Ohms)
■Nominal Coverage: 90 degrees conical
■Coverage (1 kHz to 6 kHz): 120 degrees
■Power Handling
Average 40 W
Peak 160 W
■Recommended Amplifier Power: 80 W @ 16 Ohms
■Impedance (Lo, Z): 16 Ohms
■Output Sound Pressure Level
Average 104 dB
Peak 110 dB
■Transformer Tap
70 V 30 W (165 Ω) / 15 W (330 Ω) / 7.5 W (660 Ω) / 3.75 W (1320 Ω) / OFF & low impedance operation

100 V 30 W (330 Ω) / 15 W (660 Ω) / 7.5 W (1320 Ω) / OFF & low impedance operation
■Dimensions
Hole cut-out: 187 mm
Diameter 1: 205 mm (8.07"")
Height 2: 147.6 mm (5.81"")
