TASCAM / DR-10X

The TASCAM DR-10X is a plug-on micro linear PCM recorder that can be attached directly to an XLR microphone. Its compact, palm-sized design makes it ideal for recording audio for interviews, press conferences, and other events. It's compatible with dynamic interview microphones and battery-powered condenser microphones.

■Linear PCM Recorder
■For XLR Microphones

■Recording Media
・microSD Card (64MB-2GB),
・microSDHC Card (4GB-32GB)
■File Format
・WAV (BWF)
・Sampling Frequency 48kHz
・Quantization Bit Depth 24-bit
■Number of Channels
1 Channel (Mono)
■Analog Audio Input
・Connector

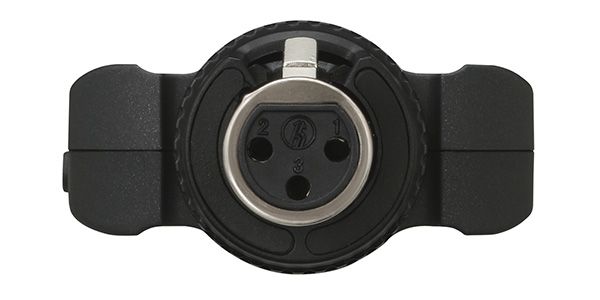

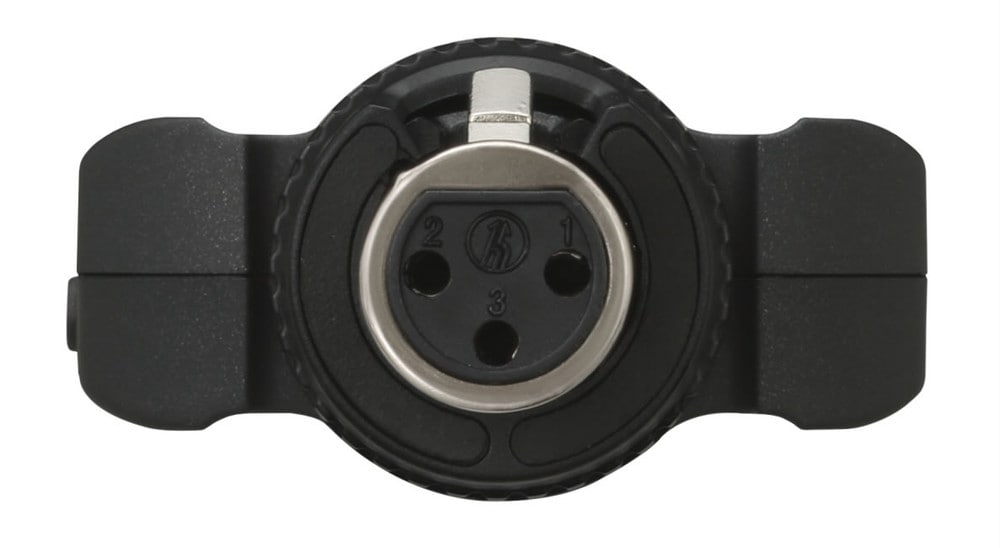

　XLR-3-31 (1:GND, 2:HOT, 3:COLD)
・Microphone Input Gain
　EXT Selected: HOT Side Unbalanced Input
　　Maximum Input Level: -8dBu
　　Reference Input Level: -24dBu
　LOW / MID / HIGH Selected
　　Input Impedance: 10kΩ

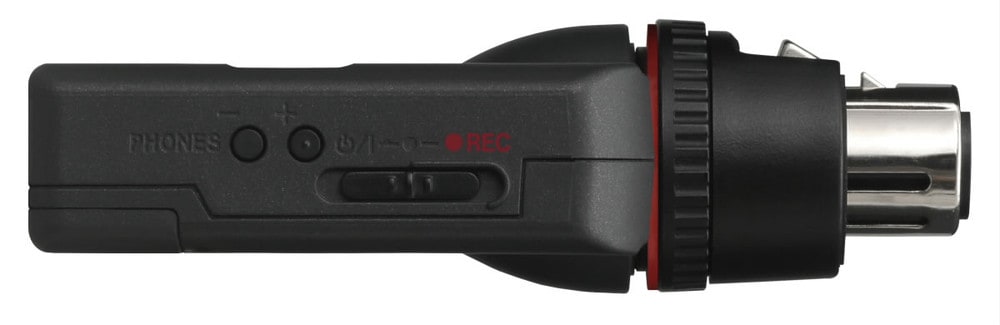

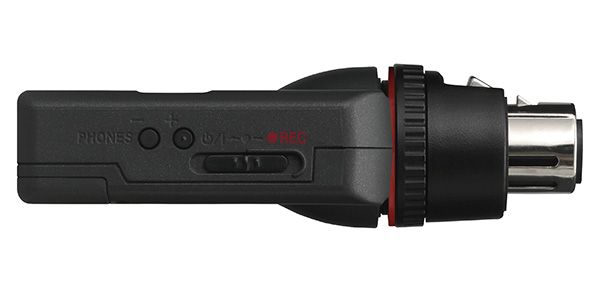

■PHONES

3.5mm (1/8 inch) Stereo Mini Jack (DUAL MONO)

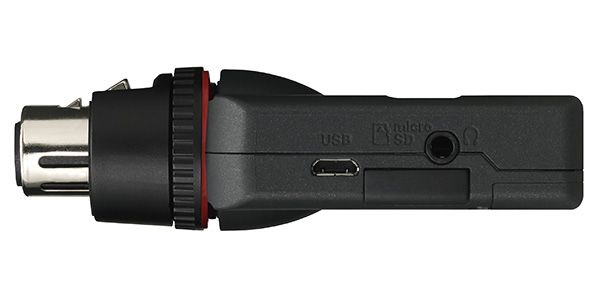

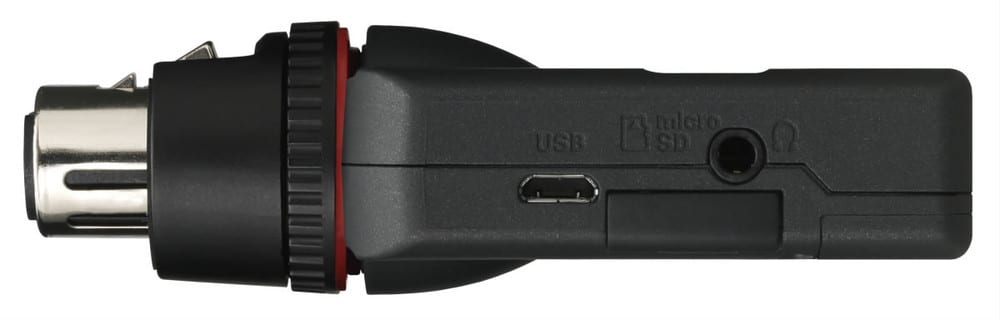

■USB
・Connector: Micro-B type 4-pin
・Maximum output: USB 2.0 HIGH SPEED Mass Storage Class
■Power Source
・Main
One AAA battery (alkaline, nickel-metal hydride, or lithium battery),
USB bus power from a computer
・For saving date and time information
One rechargeable lithium battery (built-in)
・Power consumption: 0.65W
■Battery Life
Recording in WAV, 48kHz, 24bit
Headphones not connected, Limiter: Off, Dual Recording: Off (JEITA recording)
・Alkaline batteries (EVOLTA): Approximately 10 hours
・Nickel-metal hydride batteries (eneloop): Approximately 8 hours
・Lithium batteries (Energizer ULTIMATE LITHIUM): Approximately 15.5 hours
■Dimensions: 52(W) x 94.4(H) x 28(D) mm
■Weight: 68.3g (including batteries), 56.3g (excluding batteries)
■Operating temperature: 0°C to 40°C
■Accessories: USB cable, instruction manual (with warranty)
■Frequency response: 20Hz to 22kHz +1dB/-3dB (IN to PHONES)
