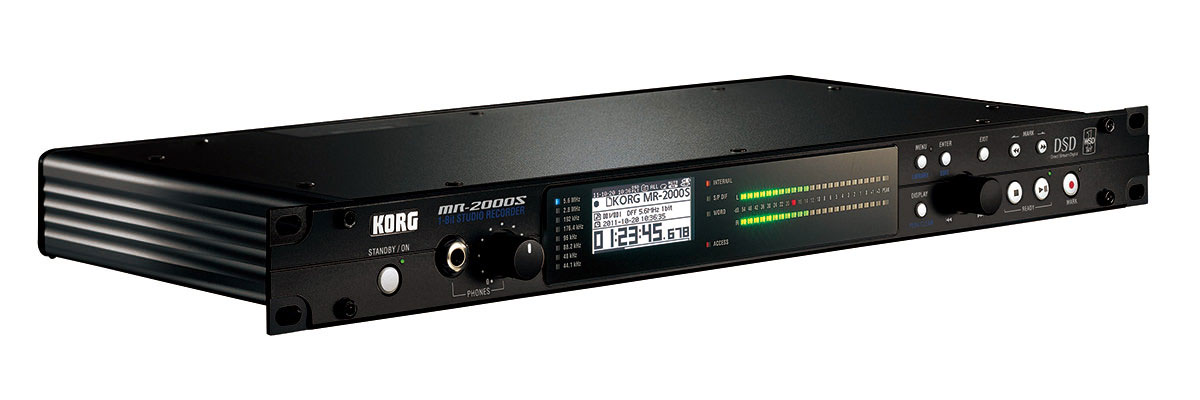

KORG / MR-2000S-BK-SSD

The compact 1U rack-type KORG recorder ""MR-2000S"" has been reborn as the ""MR-2000S-BK-SSD,"" equipped with a robust, durable, and reliable SSD.

■Digital Audio Recorder

The compact 1U rack-mounted MR-2000S recorder, already used in many recording studios for its high-quality 5.6448MHz/1-bit recording, has been reborn with a new design featuring a robust, durable, and reliable SSD.
With no moving parts, the new built-in 128GB SSD offers superior durability and reliability. It allows for approximately 23 hours of recording at the highest quality (1-bit 5.6448MHz stereo) and up to approximately 190 hours at CD-quality (16-bit 44.1kHz stereo). Recorded data can be transferred quickly to a PC via the USB 2.0-compatible USB B port. It can be used as a FAT32 external USB drive.
*Maximum continuous recording time is 6 hours.

[Product Features]
■Built-in 128GB SSD provides a maximum recording time of approximately 190 hours (44.1kHz@16bit)
■Portable 1U-size 1-bit recorder (simultaneous 2-track recording/simultaneous 2-track playback).
■1-bit recording/playback is an astonishing 5.6MHz and 2.8MHz, and PCM recording/playback is up to 24-bit 192kHz. Supports all 1-bit file formats: DSDIFF, WSD, and DSF. Supports a wide range of PCM sampling frequencies from 16-bit/44.1kHz to 24-bit/192kHz, and also supports MP3 playback.
■Features a sleek black panel.
■DSD audio sources are being released one after another by major distribution sites such as OTOTOY and e-onkyo music.
■Preserve the delicate sound of analog records forever. Ideal for archiving.
■Digital I/O (S/P DIF) coaxial terminal for PCM sources.
■ Equipped with word clock I/O, allowing you to connect and synchronize other devices and the MR-2000S.
■ The MR Control Link function allows you to control multiple MR-2000S units simultaneously from a single unit.
■ Equipped with LED level meters that are highly visible and responsive.
■ The analog input (XLR) reference level can be switched between -12/-14/-16/-18/-20dB.
■ Up to 400 projects can be created on the unit, each for a different recording date folder.
■ AudioGate audio file converter software is included. It also provides comprehensive PC integration, allowing you to read and write MR project files and convert them to MP3 files.
■ Supports USB 2.0 High Speed ​​mode, allowing for speedy file transfer to a computer.

[Product Specifications]
■Power Consumption: 20 W
■Dimensions: 482 (W) x 220 (D) x 45 (H) mm (including protrusions), 1U, Weight: 2.8 kg
■Frequency Response: 10 Hz to 20 kHz ± 1 dB @ fs 44.1 kHz/48 kHz, 10 Hz to 40 kHz ± 1 dB @ fs 88.2 kHz/96 kHz/176.4 kHz/192 kHz, 10 Hz to 100 kHz (1-bit)
■S/N Ratio: 103 dB (typical) @ IHF-A
■THD+N Ratio: 0.005% (typical) 20 Hz to 20 kHz
■A/D Conversion: 2.8224 MHz/5.6448 MHz (1-bit), 24-Bit (PCM)
■D/A Conversion 2.8224MHz/5.6448MHz (1-bit), 24-bit (PCM)
Accessories: Power cable, installation CD (AudioGate audio file conversion software)

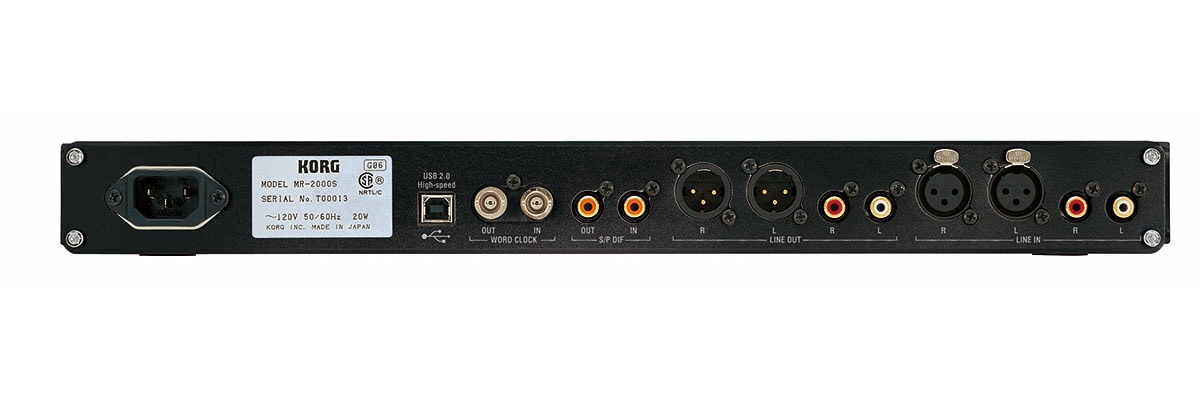

[Input/Output]
- LINE IN L, R (XLR) Connectors: XLR-3-31 type (balanced)
- LINE IN L, R (RCA) Connectors: RCA pin jack (unbalanced)
- LINE OUT L, R (XLR) Connectors: XLR-3-32 type (balanced)
- LINE OUT L, R (RCA) Connectors: RCA pin jack (unbalanced)
- PHONES Connector: φ6.3mm stereo phone jack
- S/P DIF IN/OUT (coaxial) Connectors: RCA pin jack
- WORD CLOCK IN/OUT Connectors: BNC receptacle, 75Ω

[USB]
- Connectors Type B
- Format: USB 2.0 compliant, USB Mass Storage Class
- Supported OS: Windows 2000 or later, Mac OS X 10.3.9 or later
