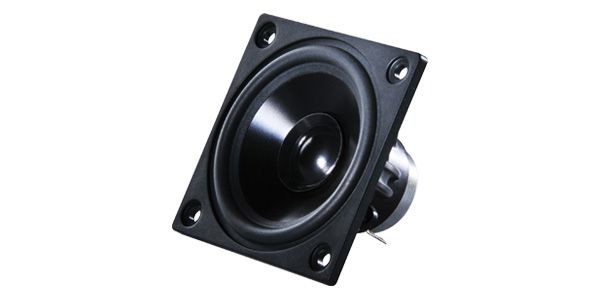

CELESTION / AN2775 8Ω full-range speaker unit

CELESTION's AN series, AN2775. A compact and lightweight replacement full-range speaker unit. It uses FEA technology. The rubber-elastic elastomer surround suppresses resonance and provides excellent sound projection. This model is recommended for portable line arrays.

■Full-range speaker unit
■Diameter: 2.75""
■Impedance: 8Ω
■Power handling capacity: 40W
■Magnet: Neodymium
■Frequency range: 160Hz-20kHz
■Sensitivity (1W/1m): 84 dB
■Weight: 100g

■Chassis: Glass-reinforced ABS
■Voice coil diameter: 0.75""
■Voice coil material: Round copper
■Former: Polyimide
■Cone: Aluminum
■Surround: Elastomer
■Baffle diameter (Cut-out diameter): 66.1mm
■Number of screw holes: 4 x M4
■Mounting PCD Range): φ82mm

Features
- Compact and lightweight full-range neodymium speaker
- Utilizes the latest FEA technology for optimal performance musically, mechanically, and electro-magnetically
- Ideal for portable line arrays
- Wide directivity at high frequencies
- Square chassis for convenient mounting of multiple units
- Rigid, lightweight aluminum cone provides high-frequency rigidity and smooth response
- Rubber-like elastomer surround suppresses unwanted resonance and provides excellent sound projection
- Weather-resistant design for outdoor use

■Compact Array
The AN Series is a lightweight, compact full-range neodymium speaker designed for portable line arrays. The lightweight aluminum cone delivers smooth response. The square mounting frame allows for the mounting of multiple units.

■CELESTION
Founded in 1924 as a brand specializing in the manufacture of speakers for guitar amplifiers. While supporting the virtuoso performances of guitarists such as Jimi Hendrix and Slash, They have established an unshakable reputation. Classic speakers such as the VINTAGE30 and CELESTION BLUE are installed in guitar amplifiers from renowned manufacturers such as MARSHALL, VOX, and BOGNER. They also manufacture various drivers and PA woofers, and are used in concerts around the world.

*Usually, woofer units can be replaced with models of similar size, impedance, and power handling. However, when actually paired with a speaker, there is a possibility that the screw holes or baffle size may not line up perfectly, requiring modification. We do not check or guarantee the installation of woofer units. Thank you for your understanding.
