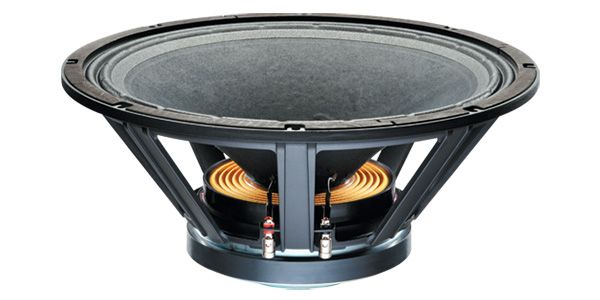

CELESTION / FTR18-4080FD 8Ω

Variations

An 18-inch woofer with an allowable input of 1000Wrms. Superior sound clarity due to double suspension. Weather resistant material is used for the cone.

■ Diameter: 18"
■ Impedance: 8Ω
■ Allowable input: 2000W
■ Frequency range: 30-2500Hz
■ Sensitivity (1W / 1m): 97dB
■ Magnet: Ferrite
■ Size: 452 x 452 x 205 mm
■ Weight: 9.8kg
■ Voice coil: 4 inches
■ Chassis: Cast Aluminum
■ Magnet weight: 3.1 kg
■ Voice coil: Round Copper
■ Former: Fiberglass
■ Cone: Glass loaded paper with weather-resistant
■ Surround: Cloth-sealed
■ Suspension: Single
■ Baffle diameter: 416mm
■ Screw hole size: 10mm x 7mm
■ Number of screw holes: 8
■ Diameter between mounting screw holes: 429-440mm
■ Mounting PCD range
