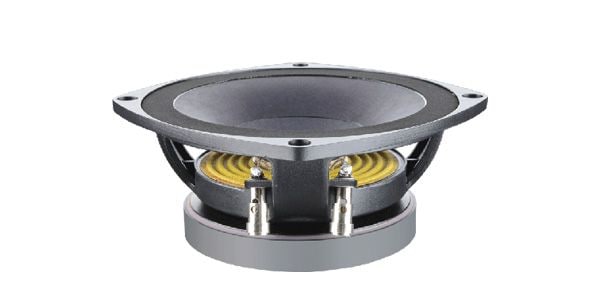

CELESTION / CF0617M 8Ω PA speaker replacement woofer

The CELESTION/CF0617M is a 6.5-inch midrange replacement speaker unit. Despite its compact size, it boasts a power handling capacity of 200W (RMS), and its distinctive chassis design allows for efficient use of installation space. It is recommended as a midrange speaker in a 3-way system.

■Diameter: 6.5""
■Impedance: 8Ω
■Power Rating: 400W

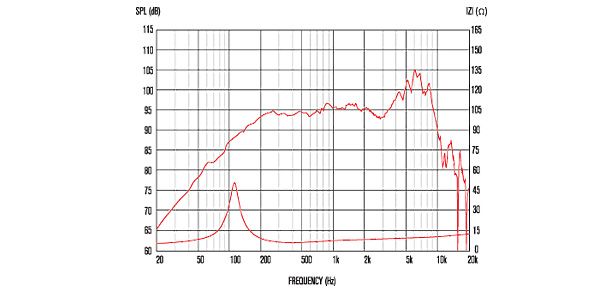

■Frequency Range: 300-7000Hz
■Sensitivity (1W/1m): 96dB
■Voice Coil Diameter: 1.75""
■Chassis: Cast Aluminum
■Magnet: Ferrite
■Magnet Weight: 0.6kg
■Voice Coil: Edgewound Copper Clad Aluminum
■Cone: Kevlar-Loaded Paper
■Surround: Temperature-Resistant Foam
■Suspension: Single
■Dimensions: 165mm x 165mm x 78.5mm
■Weight: 1.9kg
■Baffle Diameter: 150mm
■Threaded Hole Size: 7.5mm x 5.5mm
■Number of Screw Holes: 4
■Mounting Hole Diameter: 173-175mm Mounting PCD Range

Features
- 6.5-inch mid-range driver
- 96dB sensitivity, 200Wrms power handling
- FEA magnet assembly and suspension for low distortion
- Intelligent heat management of the chassis and magnet assembly for reduced thermal compression

■LF Cast Chassis / Ferrite
This series features a cast aluminum chassis and ferrite magnet. Available in sizes ranging from a lightweight 6"" mid-range driver to an 18"" subwoofer-optimized driver, it is recommended for a wide range of applications, including sound reinforcement speakers, subwoofers, and multi-way systems. The lineup includes the FTR series, which offers high power output, low distortion, and linear acoustic characteristics, and the latest CF series, which offers even lower distortion and higher power.
