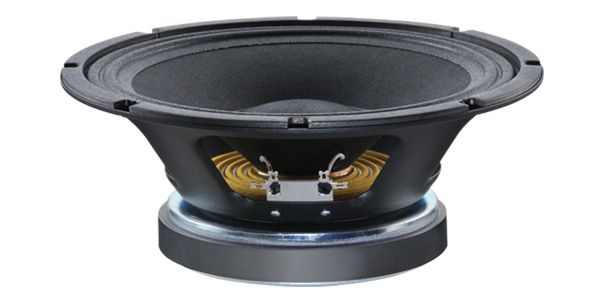

CELESTION / TF1020 8Ω

Variations

Special Order

TF1020　10インチ　8Ω　300W

A 10-inch speaker with low distortion and a highly reliable Kevlar cone promises great success even in harsh environments.

■ Diameter: 10"
■ Impedance: 8Ω
■ Allowable input: 300W
■ Frequency range: 60-3000Hz
■ Sensitivity (1W / 1m): 97dB
■ Magnet: Ferrite
■ Size: 256mm x 256mm x 110mm
■ Weight: 3.7kg
■ Voice coil: 2 inches
■ Magnet weight: 1.2kg
■ Chassis: Pressed steel
■ Voice coil: Round copper
■ Former: Polyimide
■ Cone: Kevlar loaded paper
■ Surround: Cloth-sealed
■ Suspension: Single
■ Baffle diameter: 229mm
■ Screw hole size: 8mm x 6mm
■ Number of screw holes: 8
■ Diameter between mounting screw holes: 245mm
■ Mounting PCD range
