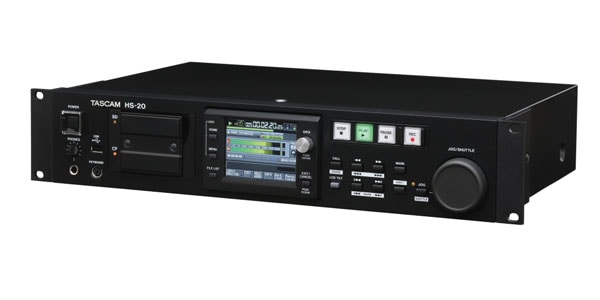

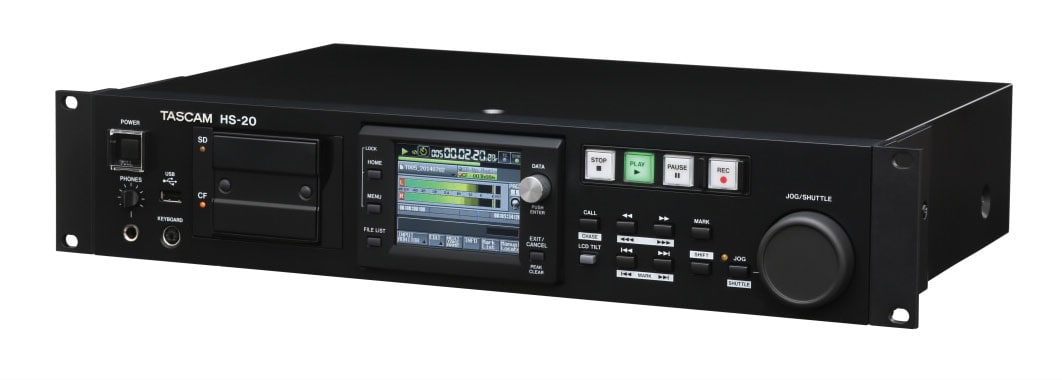

TASCAM / HS-20

The TASCAM HS-20 is a professional-grade 2-channel audio recorder/player. It features an FTP client function, allowing for automatic uploading of recorded data and downloading of audio materials. It also supports SNTP, allowing network connectivity for precise time management and event list control of recording, playback, and downloading.

■Audio recorder/player
■FTP client functionality allows you to upload/download files to the server.
■Time-controlled event list for recording, playback, downloading, etc.
■Supports SD/SDHC cards and CF cards (Ultra DMA compatible)
■Mirror recording possible on two cards
■Mechanism-less design with no rotating mechanism ensures maintenance-free durability
■Editing functions equivalent to those of an MD recorder and simple operation
■Supports 16/24-bit, 44.1/48/88.2/96/176.4/192kHz
■Supports BWF and WAV files (WAV playback only)
■Import/export of AES31 files
■Import/export of JPPA flash start playlists
■Playlist mode allows you to play takes in any order by registering them in a playlist
■Take mode allows you to handle recorded takes individually
■Touch-sensitive TFT color display for intuitive operation
■File copying possible between USB memory and CF/SD
■Optional remote controller RC-HS20PD/ Compatible with the RC-SS20, enabling 100/20-point flash start playback (flash start) respectively.
■Flash start playback (flash start) possible via parallel control, serial control, or keyboard.
■FTP file transfer via 1000BASE-T LAN, remote control via telnet.
■Real-time OS eliminates operational stress, providing smooth operation and high stability.
■VNC (Virtual Network Computing) compatible.
■D-sub 25-pin parallel control.
■D-sub 9-pin RS-232C serial control.
■Jog and shuttle functions.
■Auto cue, auto ready, incremental play.
■XLR/RCA analog output.
■XLR AES/EBU digital input/output.
■RCA S/PDIF digital input/output.
■Headphone output.
■Word clock input and output/through output.
■PS/2 or USB keyboard connection.
■BNC video reference (NTSC/PAL black burst signal, or HDTV Supports Tri-level signals
■Supports time code synchronization and RS-422 serial control with the SY-2 option
■EIA 2U rack mount size
■RoHS compliant

■Power supply: AC 100-240V, 50-60Hz
■Power consumption: 22W
■Dimensions: 482.6 (W) x 94 (H) x 317.1 (D) mm
■Weight: 4.9 kg
