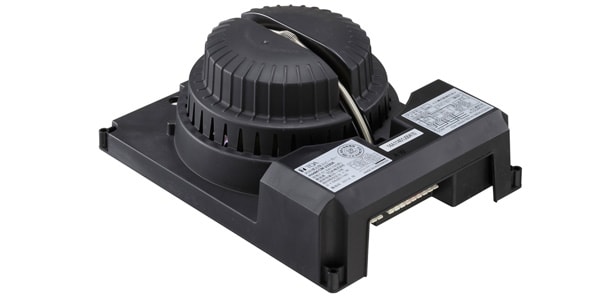

TOA / CM-2330A Ceiling Speaker

The TOA CM-2330A is a ceiling-mounted speaker that allows you to select the speaker panel (sold separately) that best suits your installation environment. The spring catch system allows for easy installation by simply hooking the panel. The plug-in connector allows for one-touch wiring, and relay terminals are included as standard, reducing the amount of construction required when using a three-wire system with an attenuator (sold separately).

■ Rated Input: 3 W
■ Rated Impedance: 3.3 kΩ (3 W), 10 kΩ (1 W)
■ Output Sound Pressure Level: 95 dB (1 W, 1 m, 600 Hz to 6 kHz, pink noise)
■ Frequency Response: 90 Hz to 15 kHz (peak -20 dB)
■ Speaker: 16 cm cone type
■ Speaker Type: Class L (92 dB(A) or higher when measured with the second signal of the voice alarm sound, in accordance with the Fire Service Act Enforcement Regulations)
■ Acoustic Power Level: 94 dB (1 W)
■ Directivity Classification: W (0° to 30°: Q=5, 30° to 60°: Q=3, 60° to 90°: Q=0.8)
■ Mounting Hole Dimensions: φ200 mm (Maximum Ceiling Thickness: 50 mm)
■Speaker panel mounting method: Spring catch (speaker panel fall prevention mechanism)
■Compatible wire: 600V vinyl-insulated wire (IV wire, HIV wire), solid copper wire: φ0.8 to φ1.6 mm
■Speaker input terminal: One-touch plug-in connector (feed-in wiring and branch wiring possible)
■Relay terminal: One-touch plug-in connector
■Operating temperature range: -10°C to +50°C
■Other: Conforms to JIS C 5532 (Speakers for audio systems)
■Finish
Case: Flame-retardant high-impact polystyrene resin (resin material flame-retardant grade: UL94 V-0 equivalent)
Black (approximate Munsell N1.0 color)
■Dimensions: 230 (W) x 174 (H) x 95 (D) mm
■Weight: 820 Compatible panels: CP-233A, CP-233B, CP-233W, CP-234A, CP-239A, CP-239W
