YAMAHA / DTX502

YAMAHA DTX502 sound module.

■Sound Generator Section
- Sound Generator Method: AWM2
- Maximum Polyphony: 32 notes
- Effects: Reverb: 9 types, Master Equalizer
- Number of Kits: Preset: 50 kits
- User: 50 kits(*)
- Number of Voices: Drums/Percussion: 691 tones/Keyboard: 128 tones
- Loadable Waveforms: 20(*) (16-bit, WAV/AIFF format)
■ Songs
- Number of Songs: 1 Demo Song, 37 Practice Songs, 22 Pad Songs, 40 User Songs
- Sequencer Capacity: Approximately 104,000 notes(*)
- Note Resolution: 96 notes per quarter note
- Recording Method: Real-time
- Song Format: SMF Format
■ Clicks
- Number of User Clicks: 30
- Tempo: 30-300/min, Tap Tempo Function
- Beat: 1/4-16/4, 1/8-16/8 1/16 to 16/16
- Timing: Accent, Quarter Note, Eighth Note, Sixteenth Note, Eighth Note Triplet
■ Training
- Number of Trainings: 8
■ Trigger
- Trigger Setup: Preset: 14 types / User: 16 types
■ Other
- Display: 16 characters x 2 lines backlit LCD, 3-digit 7-segment LED, Tempo Display LED x 2

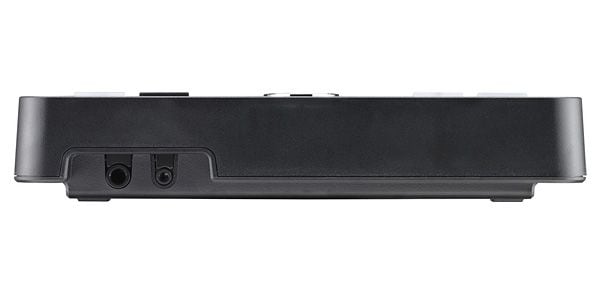

- Connections
Trigger Inputs 1, 5, 6, 9 (standard stereo phone jack, L: trigger, R: rim switch),
Trigger Inputs 2, 3, 4, 7 (standard stereo phone jack, L: trigger, R: trigger),
HI HAT CONTROL jack (standard stereo phone jack),
OUTPUT L/MONO, R (standard phone jack),
PHONES (standard stereo phone jack),
AUX IN jack (stereo mini jack),
USB (TO HOST), DC IN
- Power Consumption: 8 W
Dimensions and weight: 251 (W) x 130 (D) x 48 (H) mm, 610 g
Accessories: Power adapter (PA-3C or equivalent recommended by Yamaha), warranty card, instruction manual, module holder, two module holder screws
