BEHRINGER / FCA610

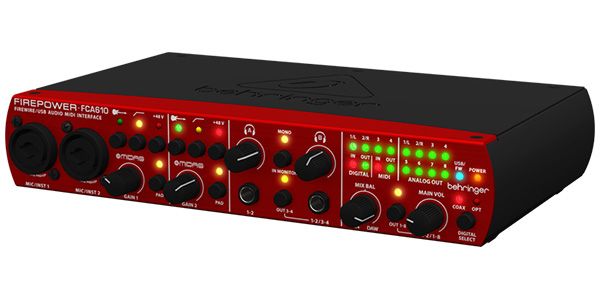

The FCA610 is an audio interface that supports both USB 2.0 and FireWire connections. Its 4-in/8-out analog inputs and outputs feature two high-quality MIDAS mic preamps, a guitar input, and one digital input and output. Two headphone jacks and a volume knob on the front of the unit make monitoring easy. Its compact half-rack size makes it easy to place next to an instrument or in a small space on a desk.

[直輸入品][Direct Import]

■Audio Interface

The FCA610 features a variety of inputs and outputs, including two high-quality MIDAS microphone preamps, 4 analog inputs/8 outputs, and one digital input/output.
Two headphone jacks and a volume knob located on the front of the unit make monitoring easy.
And thanks to its compact half-rack size, it can be placed anywhere, such as next to an instrument or in a small space on a desk.

FireWire and USB 2.0 compatible
MIDAS mic preamps
Two headphone outputs
24-bit/96kHz AD/DA converter

Inputs
- 2 combination jacks
- 2 TRS phone jacks
- 1 RCA S/PDIF jack

- Channels 1 & 2 support Hi-Z and 48V phantom power

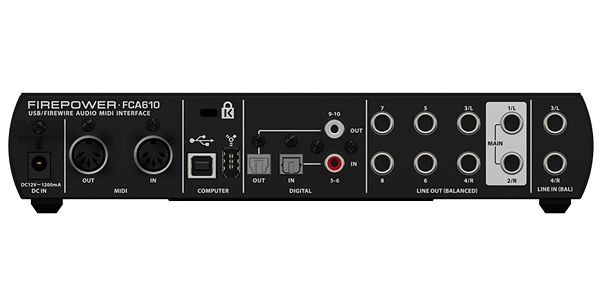

Outputs
- 8 TRS phone jacks
- 1 RCA S/PDIF jack
- MIDI: IN1/ONT1
- Dimensions: (H x W x D) 50 x 241.3 x 161 mm (2.0 x 9.5 x 6.3"")
- Weight: 1.1 kg

Compatible OS
Windows XP/Mac OS X or later

COLOR=""RED"">Instructions for Switching the Connection to a Computer
The FCA610 supports both USB and Firewire, but you must manually switch modes when connecting.

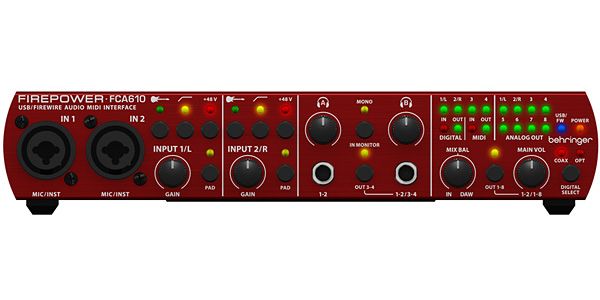

The ""DIGITAL SELECT"" switch is located near the right edge of the front of the case. Press and hold this switch while turning on the power to switch between FireWire and USB modes. The LED will flash when switching, so continue to press and hold the ""DIGITAL SELECT"" switch until the flashing stops and the switch is complete. The LED will light blue in USB mode and red in FireWire mode.
